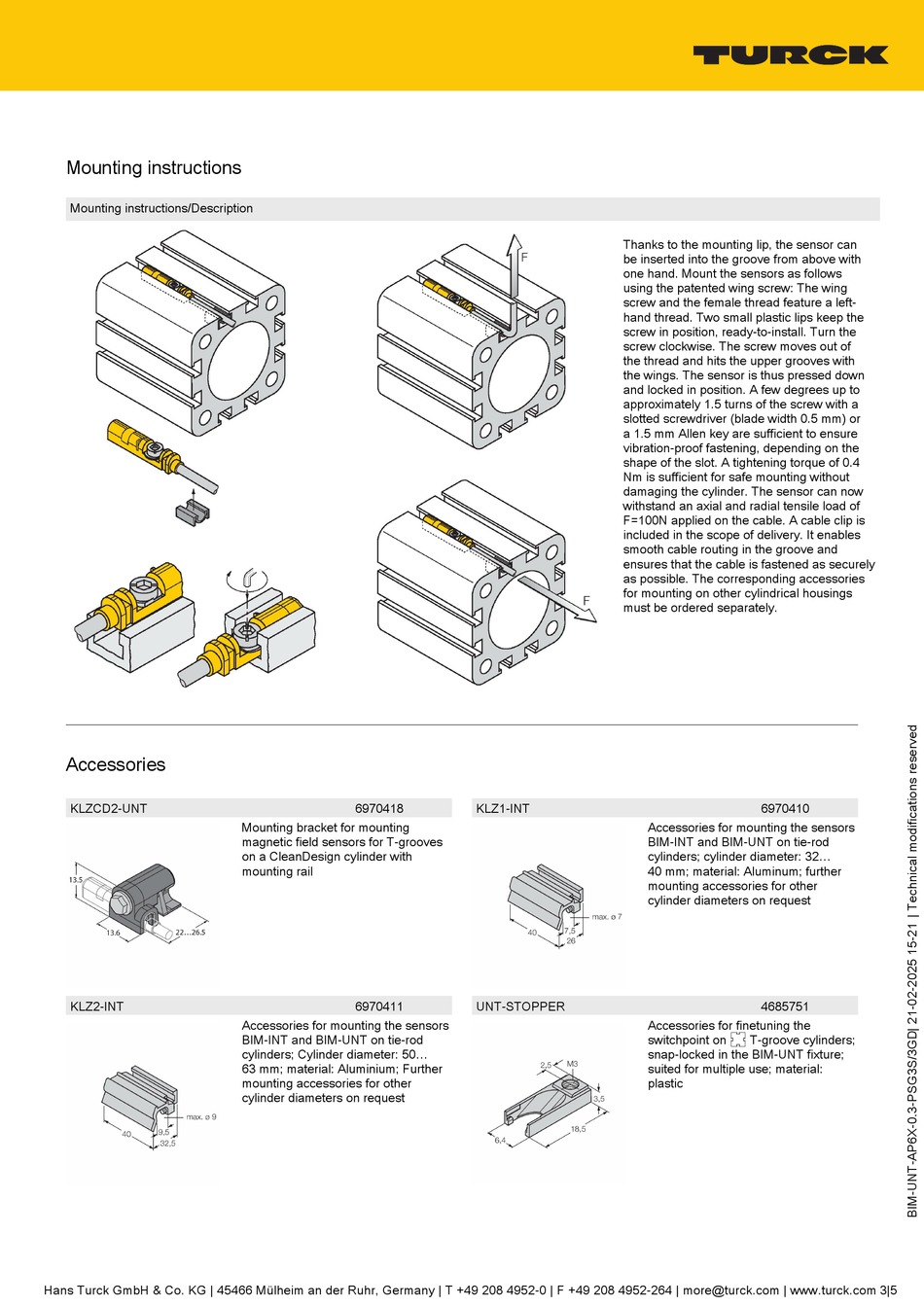

Mounting instructions
Mounting instructions/Description
Accessories
KLZCD2-UNT
KLZ2-INT
Hans Turck GmbH & Co. KG | 45466 Mülheim an der Ruhr, Germany | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com 3|5
6970418
Mounting bracket for mounting
magnetic field sensors for T-grooves
on a CleanDesign cylinder with
mounting rail
6970411
Accessories for mounting the sensors
BIM-INT and BIM-UNT on tie-rod
cylinders; Cylinder diameter: 50...
63 mm; material: Aluminium; Further
mounting accessories for other
cylinder diameters on request
Thanks to the mounting lip, the sensor can
be inserted into the groove from above with
one hand. Mount the sensors as follows
using the patented wing screw: The wing
screw and the female thread feature a left-
hand thread. Two small plastic lips keep the
screw in position, ready-to-install. Turn the
screw clockwise. The screw moves out of
the thread and hits the upper grooves with
the wings. The sensor is thus pressed down
and locked in position. A few degrees up to
approximately 1.5 turns of the screw with a
slotted screwdriver (blade width 0.5 mm) or
a 1.5 mm Allen key are sufficient to ensure
vibration-proof fastening, depending on the
shape of the slot. A tightening torque of 0.4
Nm is sufficient for safe mounting without
damaging the cylinder. The sensor can now
withstand an axial and radial tensile load of
F=100N applied on the cable. A cable clip is
included in the scope of delivery. It enables
smooth cable routing in the groove and
ensures that the cable is fastened as securely
as possible. The corresponding accessories
for mounting on other cylindrical housings
must be ordered separately.
KLZ1-INT
Accessories for mounting the sensors
BIM-INT and BIM-UNT on tie-rod
cylinders; cylinder diameter: 32...
40 mm; material: Aluminum; further
mounting accessories for other
cylinder diameters on request
UNT-STOPPER
Accessories for finetuning the
switchpoint on N T-groove cylinders;
snap-locked in the BIM-UNT fixture;
suited for multiple use; material:
plastic
6970410
4685751
