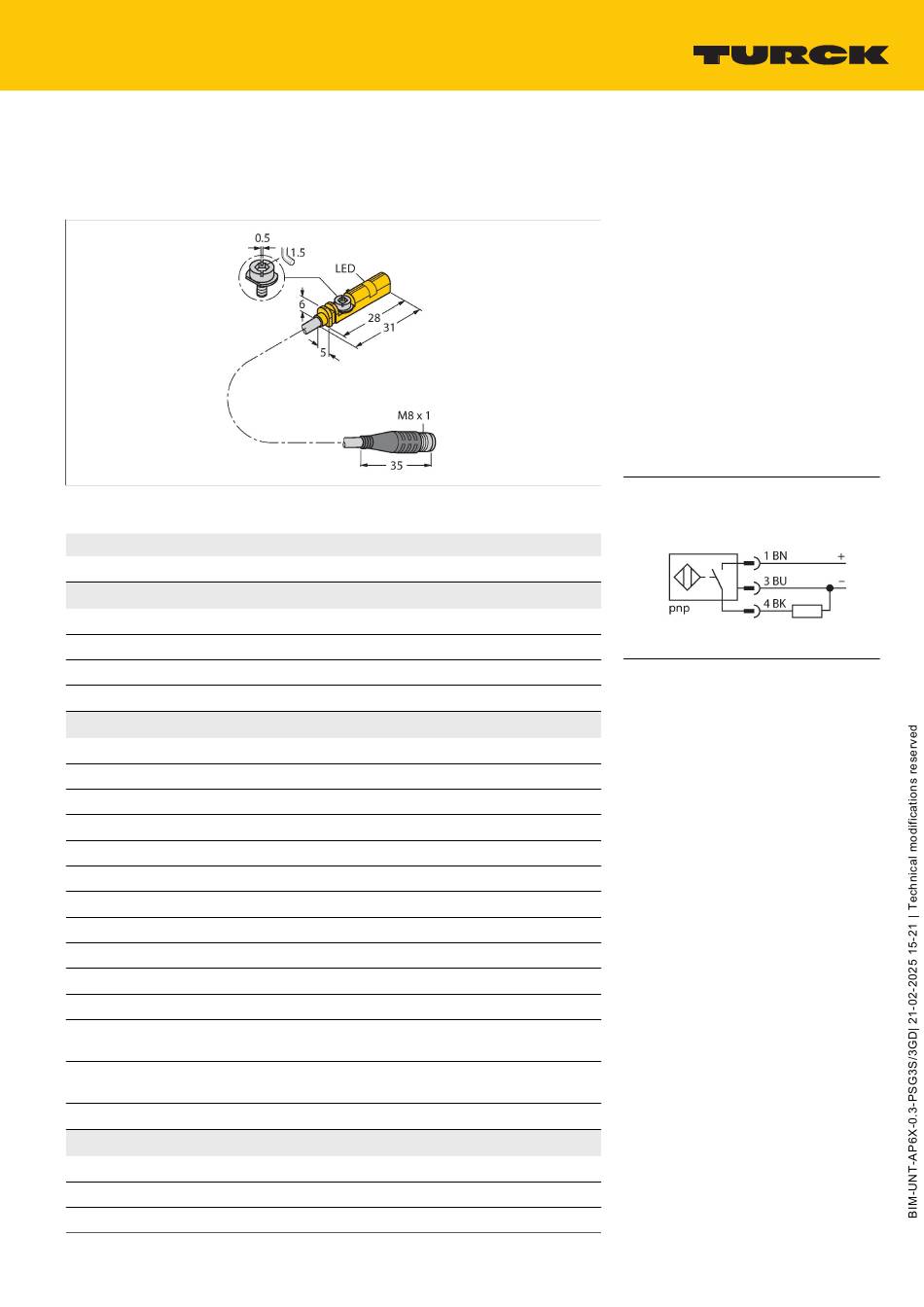

BIM-UNT-AP6X-0.3-PSG3S/3GD
Magnetic Field Sensor – For Pneumatic Cylinders
Technical data
Type
ID
General data
Pass speed
Repeatability
Temperature drift
Hysteresis
Electrical data
Operating voltage U
B
Ripple U
ss
DC rated operating current I
No-load current
Residual current
Isolation test voltage
Short-circuit protection
Voltage drop at I
e
Wire break/reverse polarity protection
Output function
Switching frequency
Approval acc. to
Device marking
Warning
Mechanical data
Design
Dimensions
Housing material
Hans Turck GmbH & Co. KG | 45466 Mülheim an der Ruhr, Germany | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com 1|5
BIM-UNT-AP6X-0.3-PSG3S/3GD
4685865
≤ 10 m/s
≤ ± 0.1 mm
≤ 0.1 mm
≤ 1 mm
10...30 VDC
≤ 10 % U
Bmax
≤ 100 mA
e
≤ 15 mA
≤ 0.1 mA
0.5 kV
yes/Cyclic
≤ 1.8 V
yes/Complete
3-wire, NO contact, PNP
1 kHz
ATEX declaration of conformity TURCK
Ex-07001M X
EX II 3 G Ex ec IIC T4 Gc/II 3 D Ex tc IIIC
T110 °C Dc
Do not unplug connector under voltage
Rectangular, UNT
28 x 5 x 6 mm
Plastic, PP
Features
■
For T-groove cylinders without mounting ac-
cessories
■
Optional accessories for mounting on other
cylinder designs
■
One-hand mounting possible
■
Stable mounting
■
Magneto-resistive sensor
■
DC 3-wire, 10...30 VDC
■
NO contact, PNP output
■
Pigtail with male end, M8 x 1
■
ATEX category II 3 G, Ex zone 2
■
ATEX category II 3 D, Ex zone 22
Wiring diagram
Functional principle
Magnetic field sensors are activated by
magnetic fields and are used, in particular,
for the detection of the piston position in
pneumatic cylinders. As magnetic fields can
permeate non-magnetizable metals, they
detect a permanent magnet attached to the
piston through the aluminium cylinder wall.
