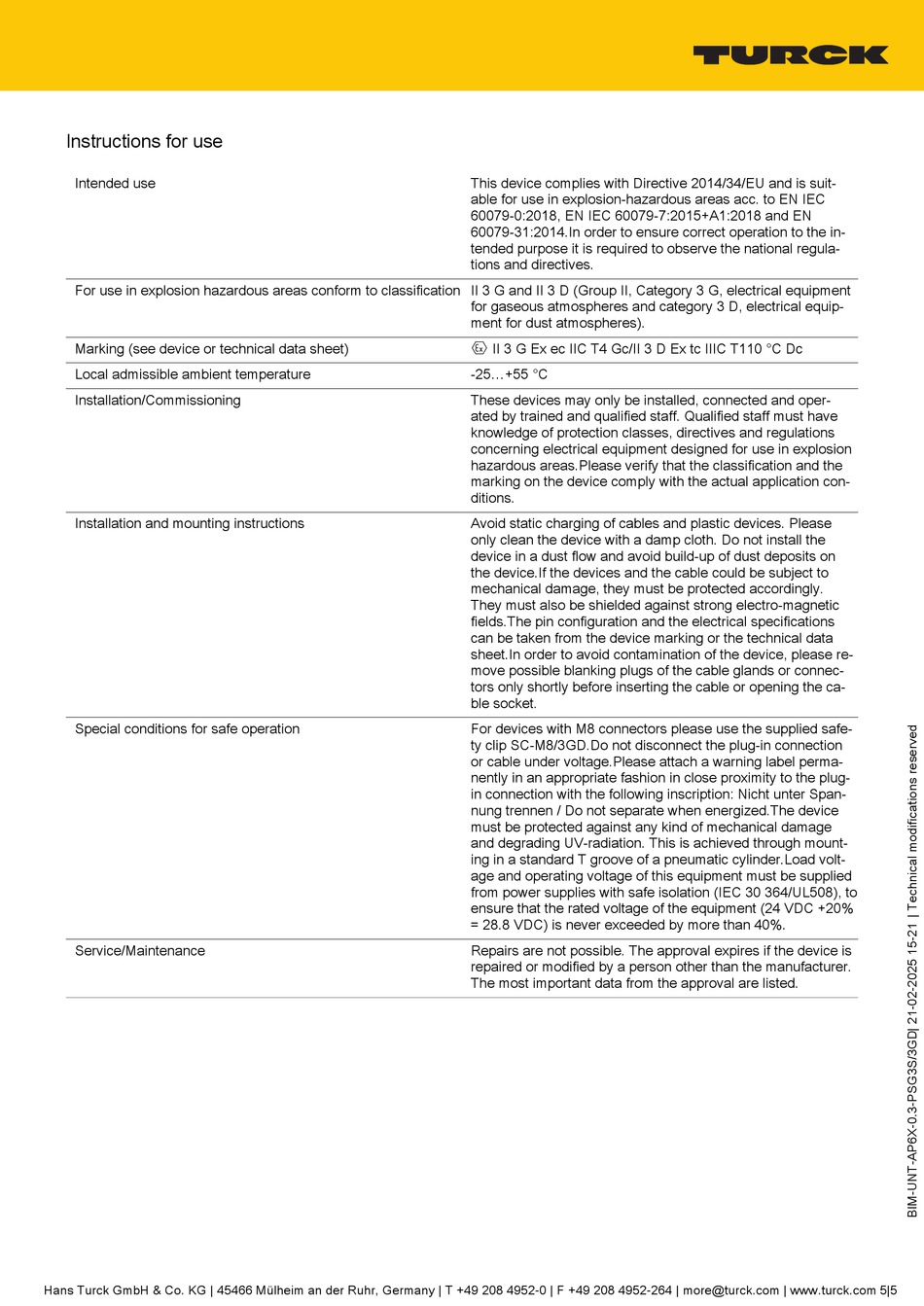

Instructions for use
Intended use
For use in explosion hazardous areas conform to classification II 3 G and II 3 D (Group II, Category 3 G, electrical equipment
Marking (see device or technical data sheet)
Local admissible ambient temperature
Installation/Commissioning
Installation and mounting instructions
Special conditions for safe operation
Service/Maintenance
Hans Turck GmbH & Co. KG | 45466 Mülheim an der Ruhr, Germany | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com 5|5
This device complies with Directive 2014/34/EU and is suit-
able for use in explosion-hazardous areas acc. to EN IEC
60079-0:2018, EN IEC 60079-7:2015+A1:2018 and EN
60079-31:2014.In order to ensure correct operation to the in-
tended purpose it is required to observe the national regula-
tions and directives.
for gaseous atmospheres and category 3 D, electrical equip-
ment for dust atmospheres).
É II 3 G Ex ec IIC T4 Gc/II 3 D Ex tc IIIC T110 °C Dc
-25...+55 °C
These devices may only be installed, connected and oper-
ated by trained and qualified staff. Qualified staff must have
knowledge of protection classes, directives and regulations
concerning electrical equipment designed for use in explosion
hazardous areas.Please verify that the classification and the
marking on the device comply with the actual application con-
ditions.
Avoid static charging of cables and plastic devices. Please
only clean the device with a damp cloth. Do not install the
device in a dust flow and avoid build-up of dust deposits on
the device.If the devices and the cable could be subject to
mechanical damage, they must be protected accordingly.
They must also be shielded against strong electro-magnetic
fields.The pin configuration and the electrical specifications
can be taken from the device marking or the technical data
sheet.In order to avoid contamination of the device, please re-
move possible blanking plugs of the cable glands or connec-
tors only shortly before inserting the cable or opening the ca-
ble socket.
For devices with M8 connectors please use the supplied safe-
ty clip SC-M8/3GD.Do not disconnect the plug-in connection
or cable under voltage.Please attach a warning label perma-
nently in an appropriate fashion in close proximity to the plug-
in connection with the following inscription: Nicht unter Span-
nung trennen / Do not separate when energized.The device
must be protected against any kind of mechanical damage
and degrading UV-radiation. This is achieved through mount-
ing in a standard T groove of a pneumatic cylinder.Load volt-
age and operating voltage of this equipment must be supplied
from power supplies with safe isolation (IEC 30 364/UL508), to
ensure that the rated voltage of the equipment (24 VDC +20%
= 28.8 VDC) is never exceeded by more than 40%.
Repairs are not possible. The approval expires if the device is
repaired or modified by a person other than the manufacturer.
The most important data from the approval are listed.
