General
3.2 Survey and construction
3.3 Optional accessories
HVA-FTZ/TSZ
Laying in batch operation
3.4 Technical data
The exact technical data (carrying capacity / working load limit (WLL), dead weight, etc.) are listed on the type plate.
53100453-003
TSZ-UNI-WB-SQ
Gripping of roughly-cut ashlar rocks
12 / 24

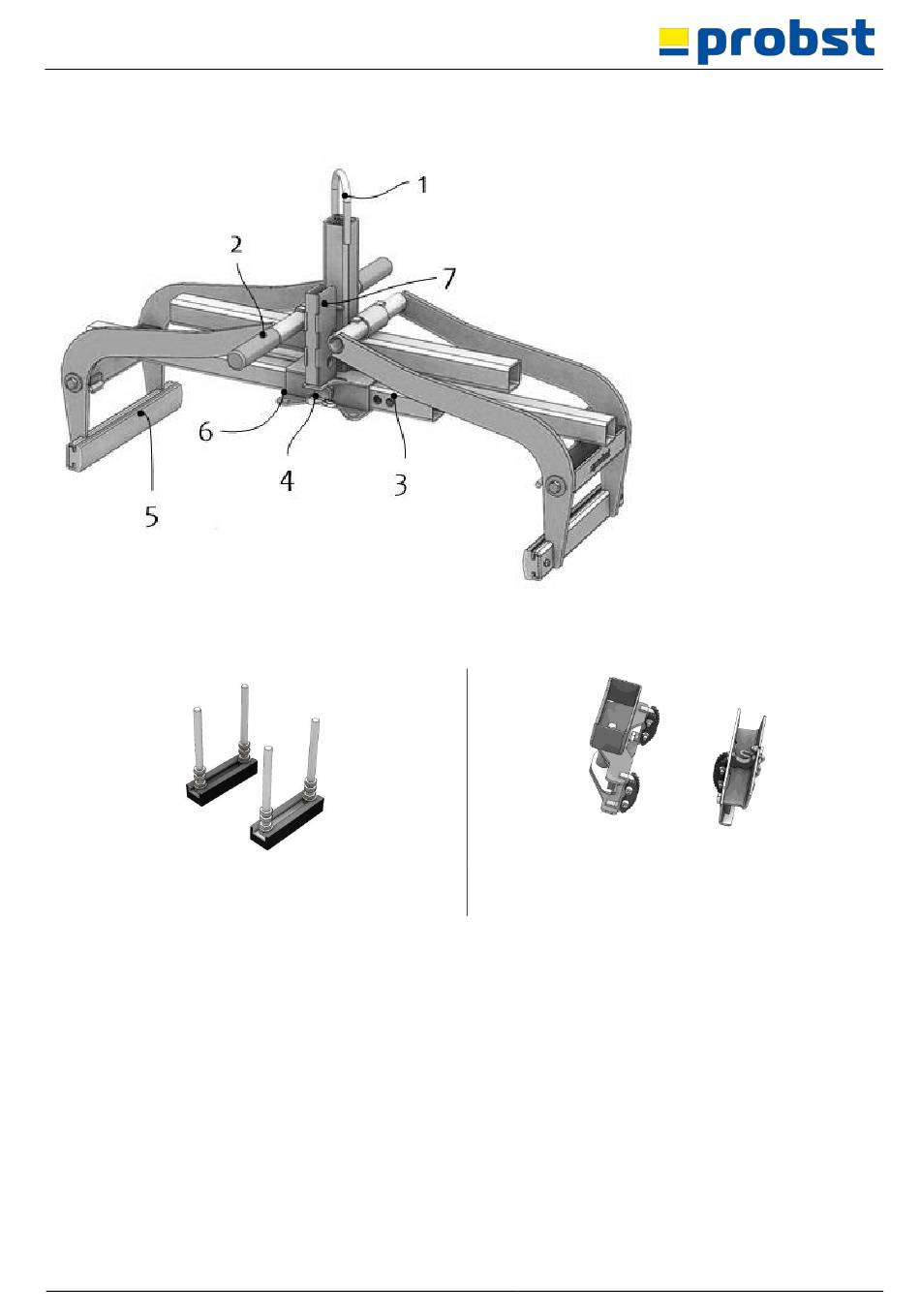

1 Lifting eye for attaching to
crane hook
2 Handles for the guidance
of the device
3 Adjustment of gripping
range
4 Spring bolt (for gripping
range adjustment)
5 Rubber gripper
(exchangeable)
6 Montageplatte für HVA
7 Automatic release for the
fully automatic switch over
from "full" to "empty"
