2. Connect the blue (neutral) wire to the
terminal which is marked with the letter 'N'
or coloured blue.
3. Connect the brown (live) wire to the
terminal which is marked with the letter
'L'. It must always be connected to the
network phase.

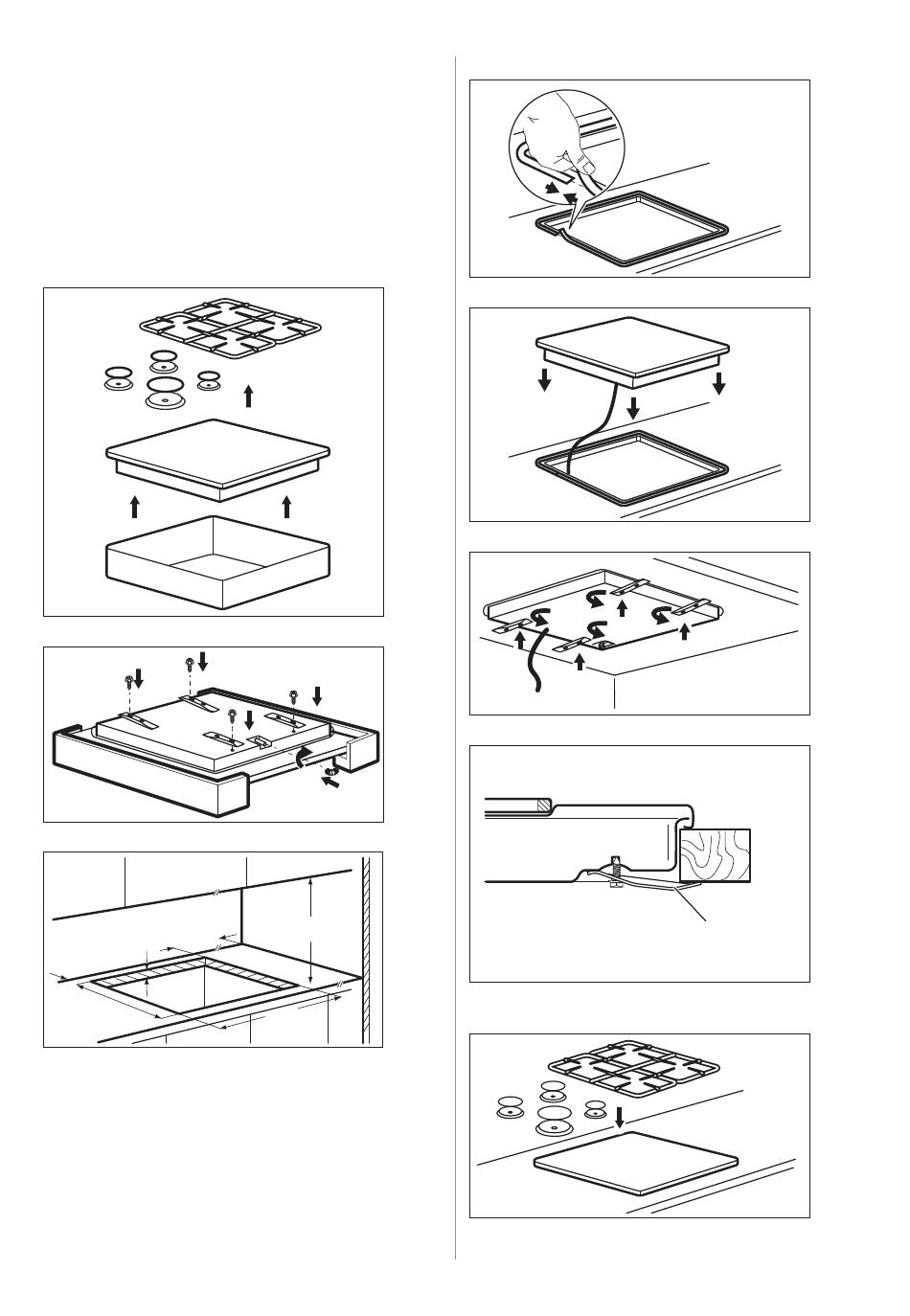

3.7 Assembly
1.
2.
3.
min.
100 mm
min.
55 mm
30 mm
2
+
480 mm
0
10
ENGLISH
min.
650 mm
2
+
560 mm
0
4.
5.
6.
7.
A. Supplied bracket
8.
A
