SMART + WIFI RADIATOR
THERMOSTAT
GB

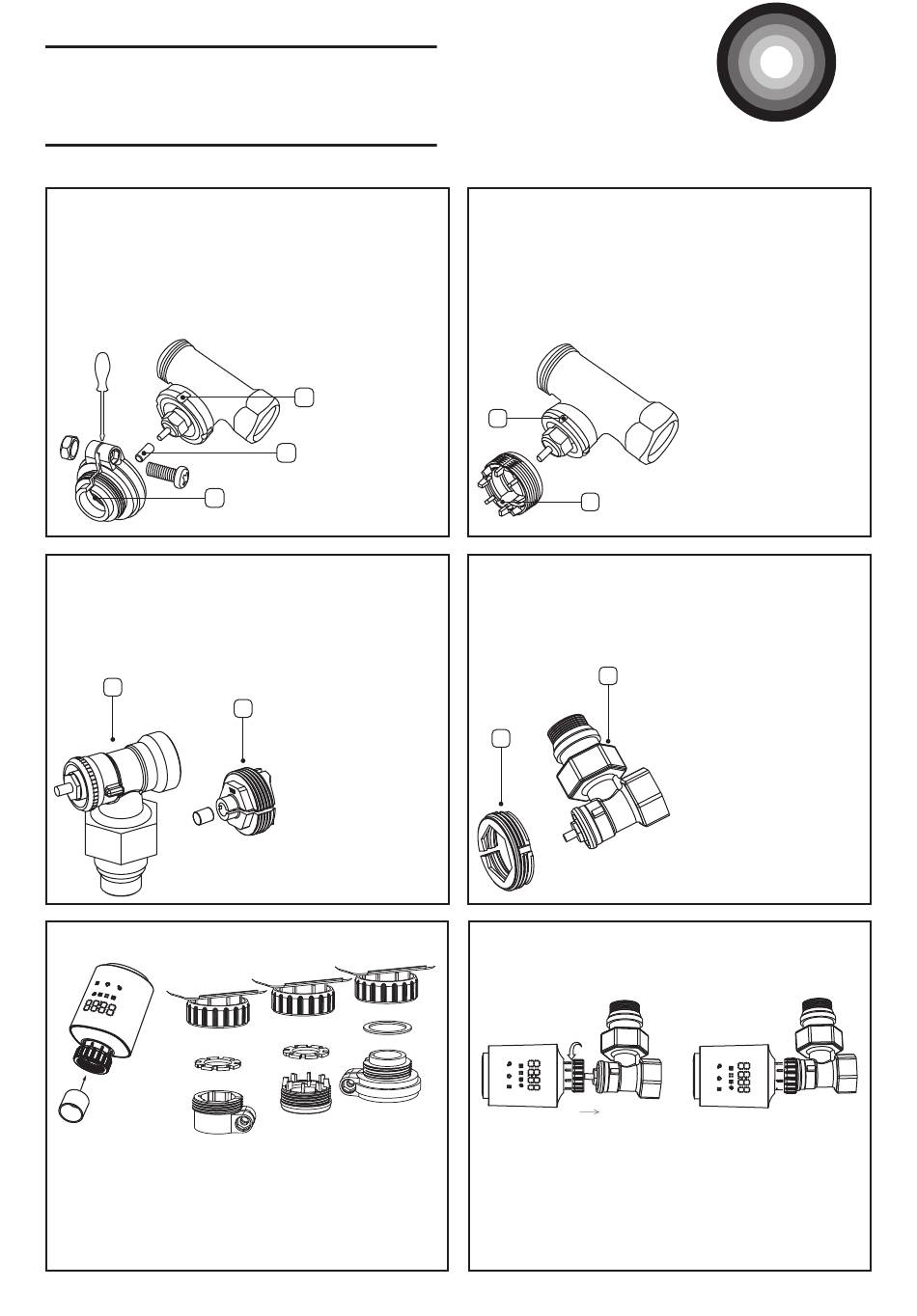

RAV
During installation, make sure that the pins inside the adapter (2) match the
notches (1) on the valve body. Ensure that the appropriate adapter for the valve
is clipped on correctly. The lifter extension (3) must be fitted to the valve pin on
RAV valves before installation.
Giacomini
During installation, make sure that the pins inside the adapter (2) match the
notches (1) on the valve body. Ensure that the appropriate adapter for the valve
is clipped on correctly.
1
Adjusting the Axle Tolerances
The valves from different manufactu-
rers may have tolerance fluctuations
that make the radiator thermos1on
the valve. In this case, the provided
support ring should be placed into the
flange before mounting the radiator
thermostat. In some case, where the
valve pin has a different length greater
than 14mm or radiator can not close
5
1
3
2
2
the valve to go down the temperature,
you will need to add a spacer inside
the base ring, the spacer comes with
two thickness, 0.5mm/1mm.
(refer as trouble shooting code F4).
RAVL
During installation, make sure that the pins inside the adapter (2) match the
notches (1) on the valve body. Ensure that the appropriate adapter for the valve
is clipped on correctly.
1
2
Caleffi
During installation, make sure that the pins inside the adapter (2) match the
notches (1) on the valve body. Ensure that the appropriate adapter for the valve
is clipped on correctly.
1
2
Finalizing the Hardware
Installation
• After "AdA" appear, the radiator is
ready to fix
with valve.
• Turn the thread ring to fix with valve.
• After valve is well fixed, then press
„Confirm" button (F) to enter adap-
tation step. In the end, the main
menu default set temperature 17°
appear. Then the device is well in-
stalled. If screen display "F1/F2/F3/
F4", refer to the trouble shooting
chapter.
