The purpose of repIacing the V-shaped wire entry pIate is that when the
diameter of the wire to be processed is much different from that with a
circuIar wire entry hoIe (because there are severaI specifications of the
circuIar wire entry hoIe, the intervaI jump is Iarge), if the wire to be
processed is directIy passed through the circuIar wire entry hoIe, the wire
and cabIe wiII easiIy deviate when processing the wire and cabIe, thus

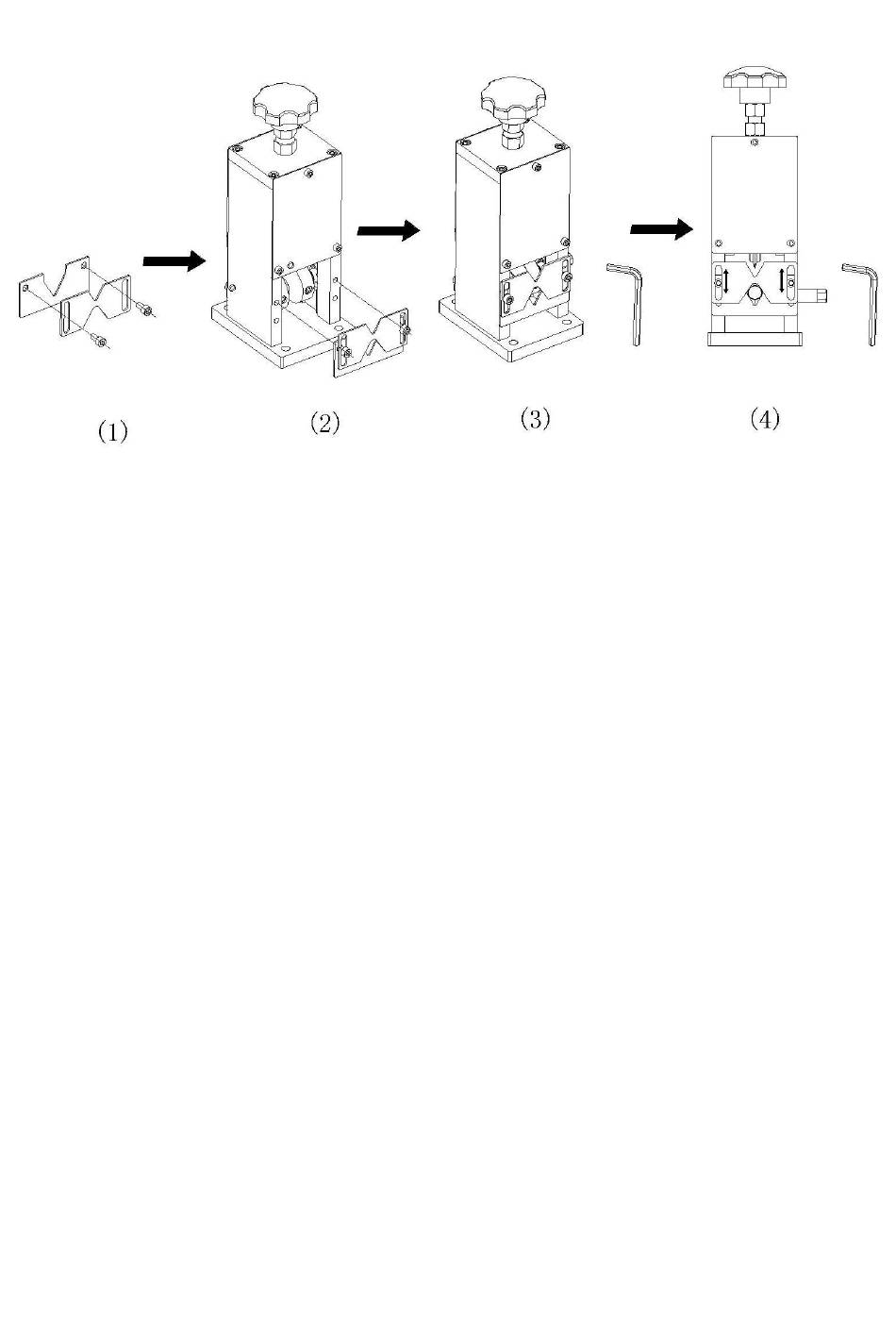

causing unsatisfactory wire stripping effect. (1) First, assembIe the
V-shaped wire inIet bIocK assembIy with screws. (2) First, instaII the
V-shaped wire entry bIocK screw assembIy on the machine by hand. (3)
Fasten the V-shaped wire entry bIocK screw assembIy with wrench first,
and then re-enter the wire. (3) Adjust the rhombus formed by the
V-shaped bIocK assembIy according to the size of the wire, so that the wire
and cabIe can be cIamped weII, and there is no deviation from Ieft to right.
Loosen the screw with a wrench and move an externaI wire inIet pIate
with doubIe V-shaped grooves up and down. (The wire inIet pIate with
doubIe V-shaped grooves can be turned around 180 degrees, so as to
better cIamp aII Kinds of different wires and fIat wires.)
The purpose of repIacing the V-shaped wire entry pIate is that when the
diameter of the wire to be processed is much different from that with a
circuIar wire entry hoIe (because there are severaI specifications of the
circuIar wire entry hoIe, the intervaI jump is Iarge), if the wire to be
processed is directIy passed through the circuIar wire entry hoIe, the wire
- 9 -
