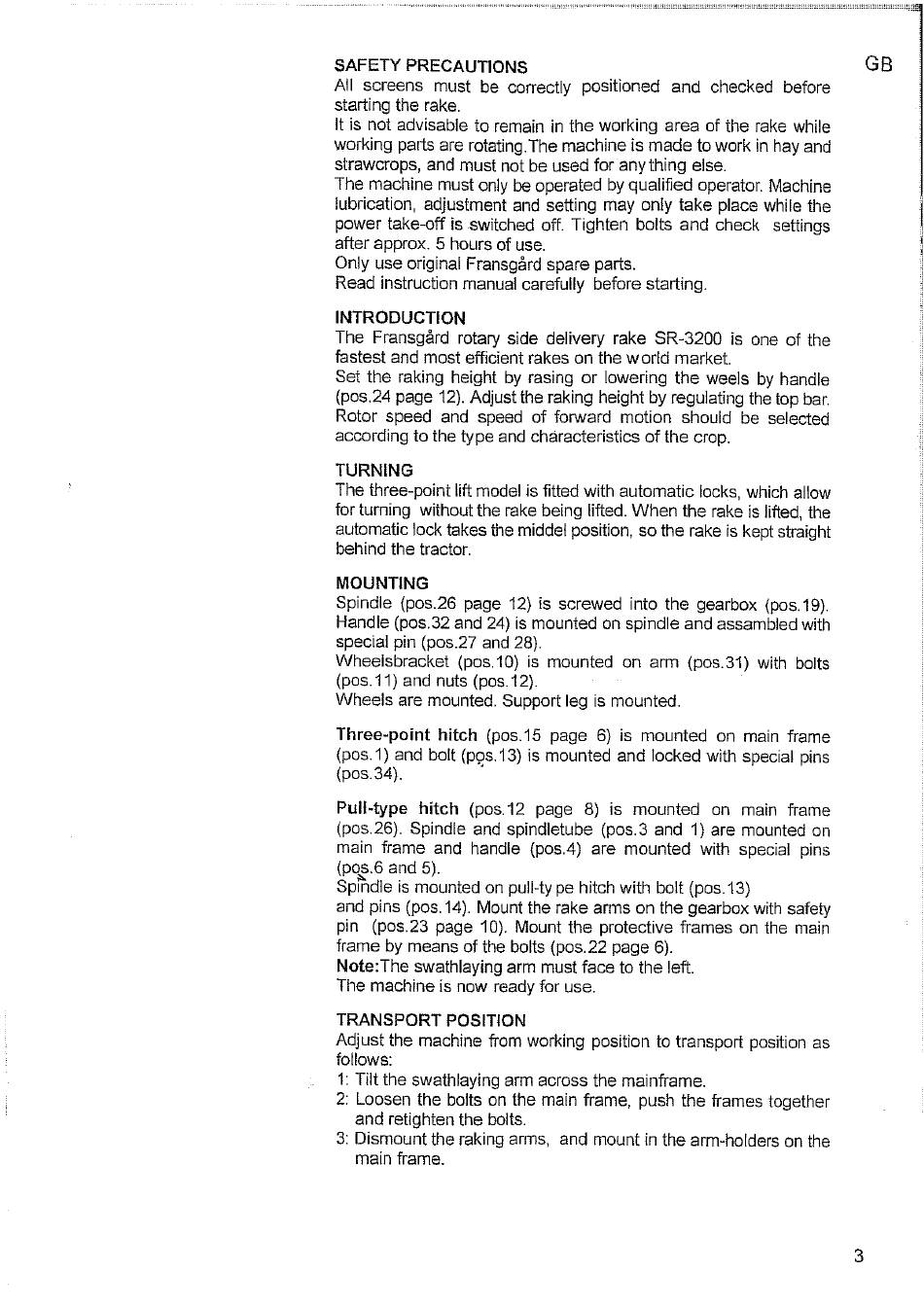

SAFETY PRECAUTIONS
All screens must be correctly positioned and checked before
starting the rake.
It is not advisable to remain in the working area of the rake while
working patts are rotating.The machine is made to work in hay and
strawcrops, and must not be used for any thing else.
The machine must only be operated by qualified operator. Machine
lubrication, adjustment and setting may only take place while the
power take-off is switched off. Tighten bolts and check settings
after approx. 5 hours of use.
Only use original Fransgård spare parts
Read instruction manual carefully before starting
INTRODUCTION
The Fransgård rotary side delivery rake SR-3200 is one of the
fastest
and most efficient
Set the raking height by rasing or lowering the weels by handle
(pos.24 page 12).Adjust the raking height by regulating the top bar.
Rotor speed and speed of forward motion should be selected
according to the type and chäracteristics of the crop.
TURNING
The three-point lift model is fitted with automatic locks, which allow
for turning without the rake being lifted. When the rake is lifted, the
automatic lock takes the middel position, so the rake is kept straight
behind
the tractor.
MOUNTING
Spindle (pos.26 page 12) is screwed into the gearbox (pos.19).
Handle (pos.32 and 24) is mounted on spindle and assambled with
special pin (pos.27 and 28).
Wheeisbracket
(pos. 10) is mounted on arm (pos.31) with bolts
(pos.ll)
and nuts (pos. 12)
Wheels are mounted. Support leg is mounted.
Three-point
hitch (pos.15 page 6) is mounted on main frame
(pos.1) and bolt (pps.13) is mounted and locked with special pins
(pos.34).
Pull-type
hitch
(pos.12 page 8) is mounted
(pos.26). Spindle and spindletube (pos.3 and 1) are mounted on
main frame and handie (pos.4) are mounted With special pins
(pos.6 and 5).
Spindle is mounted on pull-ty pe hitch with bolt (pos. 13)
and pins (pos.14). Mount the rake arms on the gearbox with safety
pin (pos.23 page 10). Mount the protective frames on the main
frame by means of the bolts (pos.22 page 6).
Note:The swathlaying arm must face to the left.
The machine is now ready for use.
TRANSPORT
POSITION
Adjust the machine from working position to transport position as
follows:
1: Tilt the swathlaying arm across the mainframe
2: Loosen the bolts on the main frame, push the frames together
and retighten the bolts.
3: Dismount the raking arms, and mount in the arm-holders on the
main
frame.
rakes on the world
market.
on main frame
