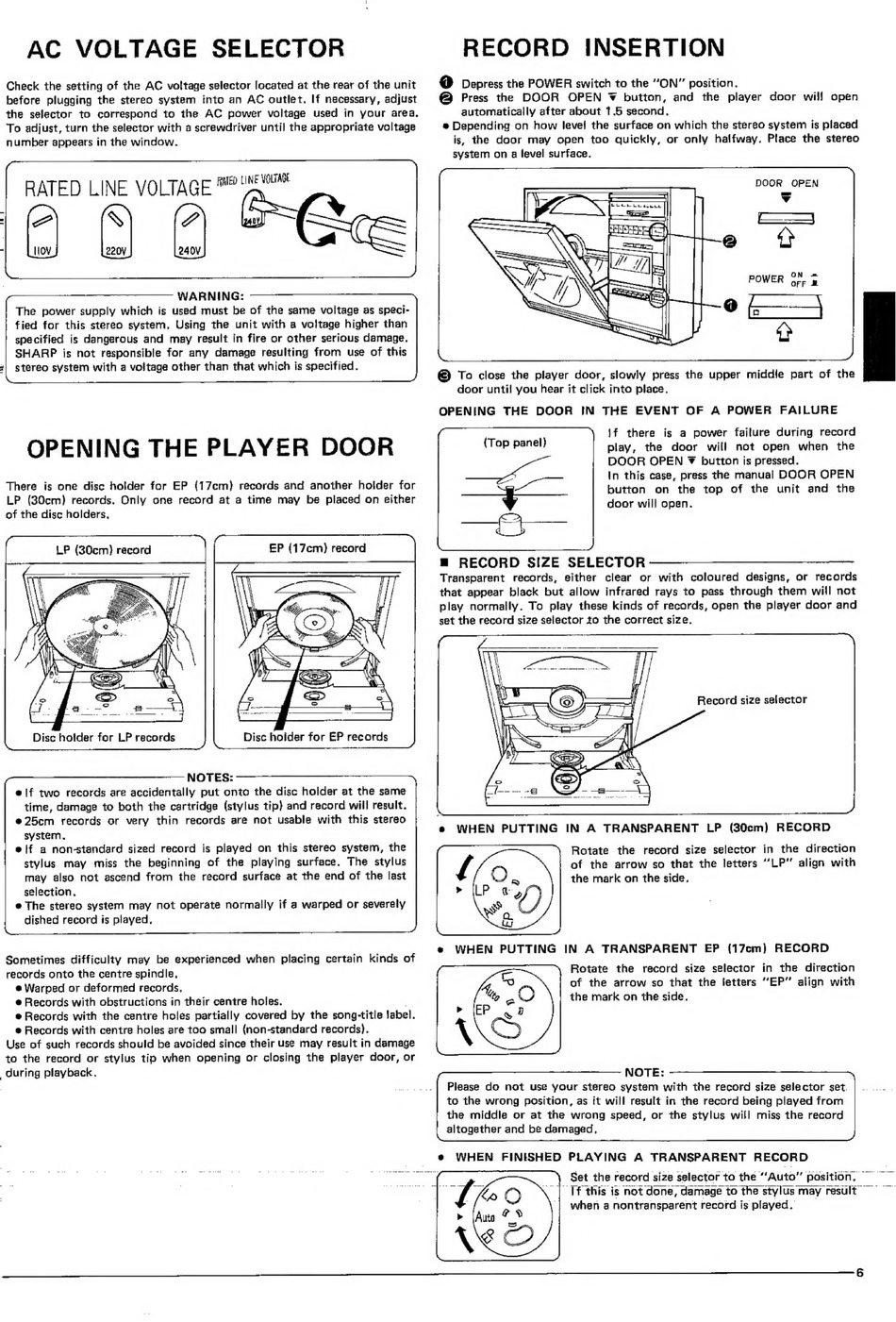

AC VOLTAGE SELECTOR
Check the setting of the AC voltage selector located at the rear of the unit
before plugging the stereo system into an AC outlet. If necessary, adjust
the selector to correspond to the AC power voltage used in your area.
To adjust, turn the selector with a screwdriver until the appropriate voltage
number appears in the window.
VOLTAGE
RATED LINE VOLTAGE ™?"%
oo Y L
lov 220V 240V
WARNING:
The power supply which is used must be of the same voltage as speci-
fied for this stereo system, Using the unit with a voltage higher than
specified is dangerous and may result in fire or other serious damage,
SHARP is not responsible for any damage resulting from use of this
stereo system with a voltage other than that which is specified.
OPENING THE PLAYER DOOR
There is one disc holder for EP (17cm) records and another holder for
LP (30cm) records, Only one record at a time may be placed on either
of the disc holders.
(30cm) re
Galerie. Ey
Disc holder for EP records
Disc holder for LP records
NOTES:
@lf two records are accidentally put onto the disc holder at the same
time, damage to both the cartridge (stylus tip} and record wiil result.
@25cm records or very thin records are not usable with this stereo
system.
e{f a non-standard sized record is played on this stereo system, the
stylus may miss the beginning of the playing surface. The stylus
may also not ascend from the record surface at the end of the last
selection,
® The stereo system may not operate normally if a warped or severely
dished record is played.
Sometimes difficulty may be experienced when placing certain kinds of
records onto the centre spindle,
® Warped or deformed records,
@ Records with obstructions in their centre holes.
® Records with the centre holes partially covered by the song-title Jabel.
@ Records with centre holes are too small (non-standard records).
Use of such records should be avoided since their use may result in damage
to the record or stylus tip when opening or closing the player door, or
during playback.
RECORD INSERTION
@ Depress the POWER switch to the "ON" position.
@® Press the DOOR OPEN ¥ button, and the player door wil! open
automatically after about 1.5 second,
® Depending on how level the surface on which the stereo system is placed
is, the door may open too quickly, or only halfway. Place the stereo
system on a level surface,
DOOR OPEN
© To close the player door, slowly press the upper middie part of the
door until you hear it click into place.
OPENING THE DOOR IN THE EVENT OF A POWER FAILURE
if there is a power failure during record
play, the door will not open when the
DOOR OPEN ¥ button is pressed.
In this case, press the manual DOOR OPEN
button on the top of the unit and the
door will open.
{Top panel}
@ RECORD SIZE SELECTOR ————_—________-"_-
Transparent records, either clear or with coloured designs, or records
that appear black but allow infrared rays to pass through them will not
play normally. To play these kinds of records, open the player door and
set the record size selector to the correct size.
Record size selector
® WHEN PUTTING IN A TRANSPARENT LP (30cm) RECORD
Rotate the record size selector in the direction
of the arrow so that the letters "LP align with
the mark on the side,
® WHEN PUTTING IN A TRANSPARENT EP (17cm) RECORD
Rotate the record size selector in the direction
of the arrow so that the letters "EP" align with
the mark on the side.
NOTE:
Please do not use your stereo system with the record size selector set.
to the wrong position, as it will result in the record being played from
the middle or at the wrong speed, or the stylus will miss the record
altogether and be damaged,
_ @ WHEN FINISHED PLAYING A TRANSPARENT RECORD
Set the record size selector to the ""Auto" position.
when a nontransparent record is played.
T f this is not done, damage to the stylus may result"
6
