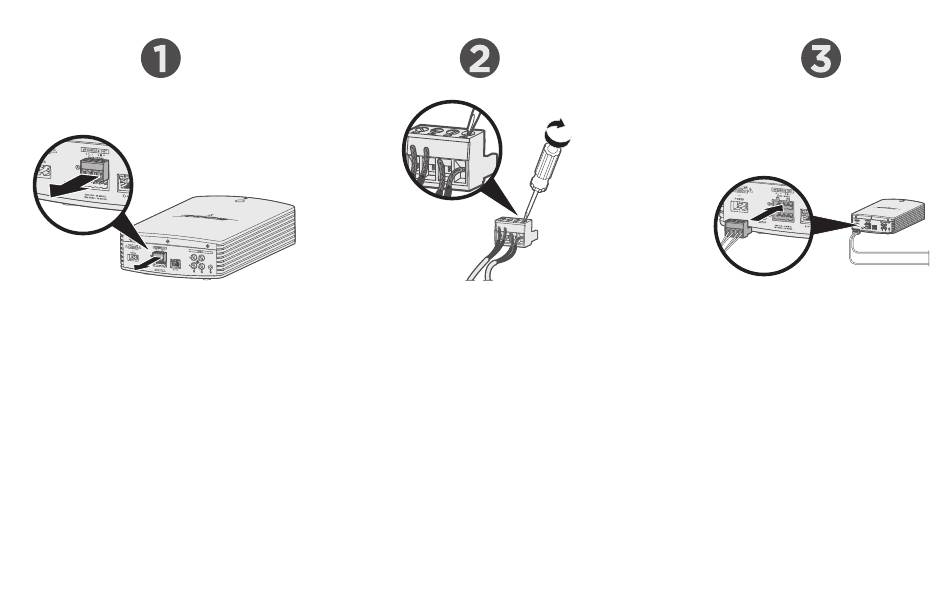

Remove terminal block A.
Each terminal block accepts one pair
of speakers.
E N G L I S H
All manuals and user guides at all-guides.com
Connect and secure the speaker wires
to terminal block A.
1. Insert the left speaker's marked wire into the
+ L
positive terminal and the plain wire into
L –
the negative terminal.
2. Insert the right speaker's marked wire into the
+ R
positive terminal and the plain wire into
R –
the negative terminal.
Reinsert terminal block A.
To connect a second pair of speakers,
repeat steps 1-3 using terminal
block B.
Note: Refer to your speaker owner's
guide for instructions on connecting
the other end of the speaker wires to
the speakers. You can connect up to
two pairs of unpowered speakers.
