Specifications
Connection voltage:
220-240VAC 50Hz
Dimming technology:
Trailing edge (R,C)
Dimmable LED lamps:
0-250W Trailing (R,C)
Lamps with electronic transformers:
0-250W
Halogen and incandescent lamps:
0-250W
•
Suitable for both retrofit lamp bulbs and new installations.
•
Soft start system for longer LED lamp life. Built-in protection for temperature
protection and overload.
•
Suitable for standard switching and hotel switching with multiple dimmers.
•
Operate the same lighting group with different dimmers. Each dimmer works
independently and does not interfere with another dimmer.
•
Automatic detection of the maximum light level.
Suitable cover plates brands
•
Berker by Hager
•
Busch-Jaeger
•
GIRA
•
JUNG
*NIKO plate is not included. Available separately on the EcoDim website via ED10072
Dimmer knob
Only for NIKO*
Only for Busch-Jaeger
Only for JUNG
Central plate
Cover frame
Only for NIKO*
Only for NIKO* & Busch-Jaeger
Dimmer
*
NIKO
*NIKO plate is not included. Available separately
on the EcoDim website via:
ED10072
•
Kopp
•
Merten by Schneider
•
Niko*
•
PEHA

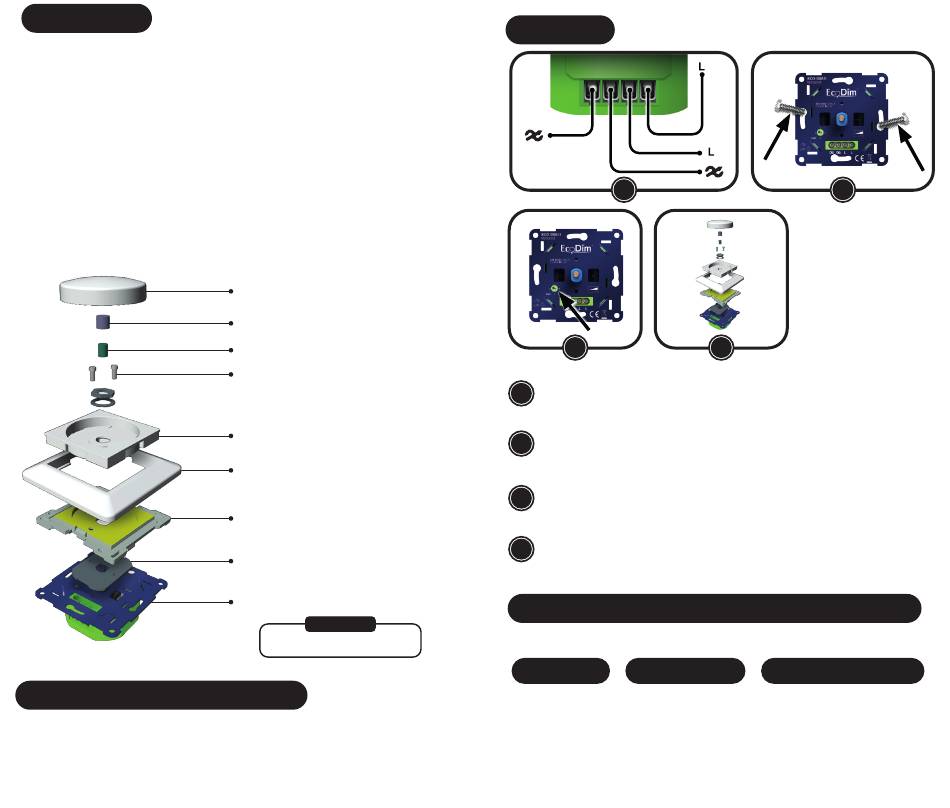

Installation
1
1
3
Step 1
1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown in the 'Wiring diagram' .
2
Step 2
Now install the dimmer in the flush-mounting box.
Step 3
3
Switch the electricity on again. Turn on the connected lamps using the dimmer shaft.
Now set the MIN as indicated under 'Setting min. light level' .
4
Step 4
Replace the cover frame, central plate and dimmer button on the dimmer.
Reduction of connection capacity by PowerFactor
When calculating the LED connection power of the dimmer, take into account the PowerFactor
of the dimmable LED lighting. See the global calculation below for this.
NUMBER OF LED LIGHT
=
NOMINAL POWER
SOURCES
Example: 10 lamps * (5W per lamp / 0.8 PowerFactor) = 62.5 Watt
Simplified EU Declaration of Conformity:
We, EcoDim B.V., hereby declare that this product conforms to the directives applicable from the
European Union.
The full text of the EU declaration of conformity can be consulted at the following
internet address: https://www.ecodim.nl/en/service/ecodim-certificering
2
2
4
NOMINAL POWER LED /
*
POWERFACTOR.
