SOMFY V 500 PRO io Connect Installationsanleitung Seite 36

[1].

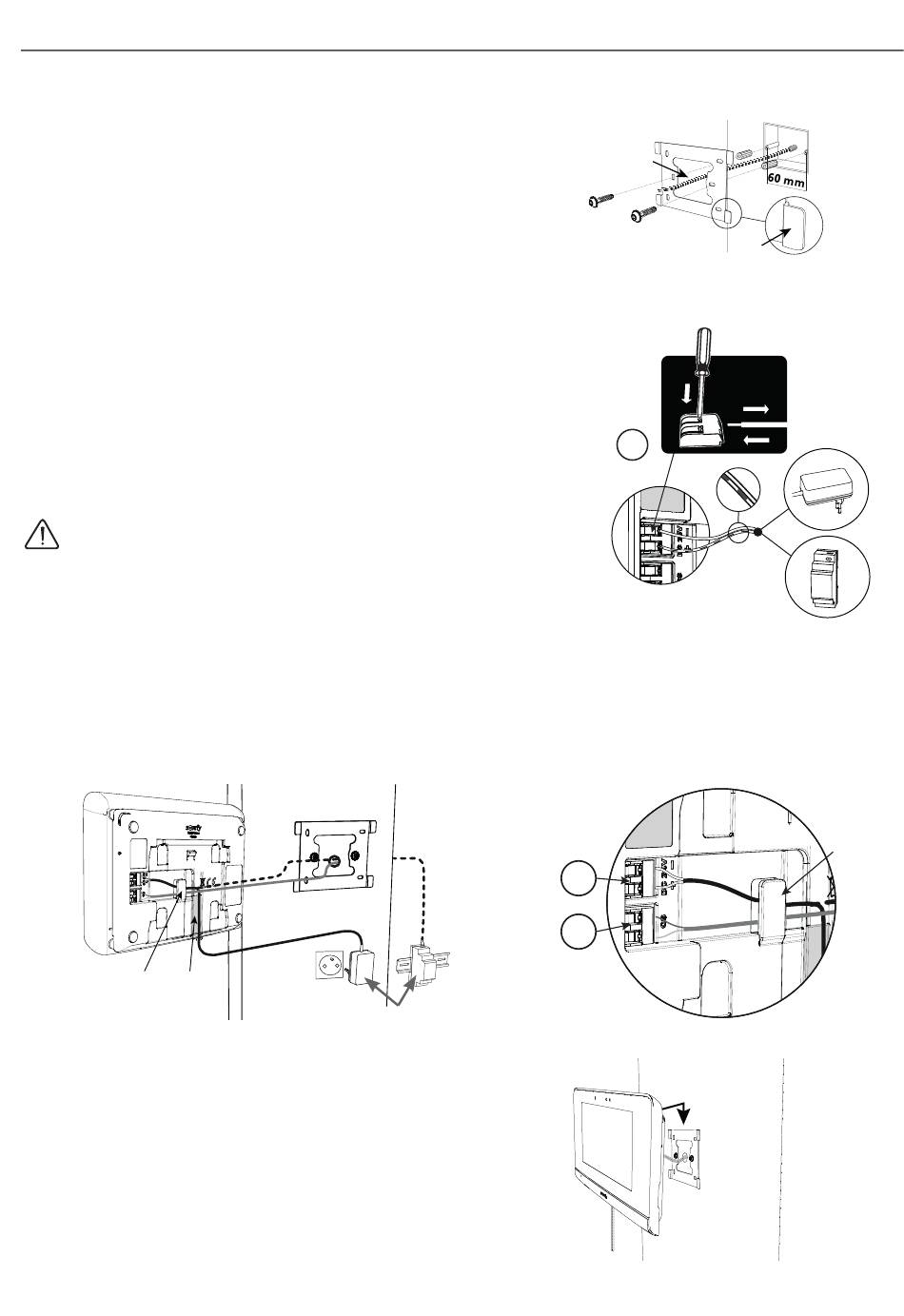

Screw the mounting bracket to the wall.
The mounting lugs must protrude towards you (A).
Ensure that the cables protruding from the wall are routed inside the bracket
(B).
If the cables do not protrude from the wall, do not route them inside
the bracket, and use the cable tray provided for this purpose (C, at the
bottom of the page).
[2].
Strip a length of 10 mm on the cables protruding from the wall.
[3].
On the rear of the monitor, insert the 2 power supply cables
up to the stops on the 24V DC terminal block [7-1], observing
the correct polarity.
It is essential to use the mains adapter supplied with the monitor
or the DIN rail power supply.
Do not power
on the installation yet.
[4].
Insert the 2 call station wires up to the stops on the CS/Call station terminal block [7-2].
The polarity is irrelevant.
[5].
Check that the cables are correctly inserted into the terminal blocks by pulling them gently, then place them in the
specially provided notch (D).
(D) (C)
[6].
Fasten the monitor to the wall bracket by sliding it gently
downwards to the stop.
36
INSTALLING THE MONITOR
230V AC
(B)
7-1
+
7-1
7-2
(A)
-
-
+
2 1
(D)
