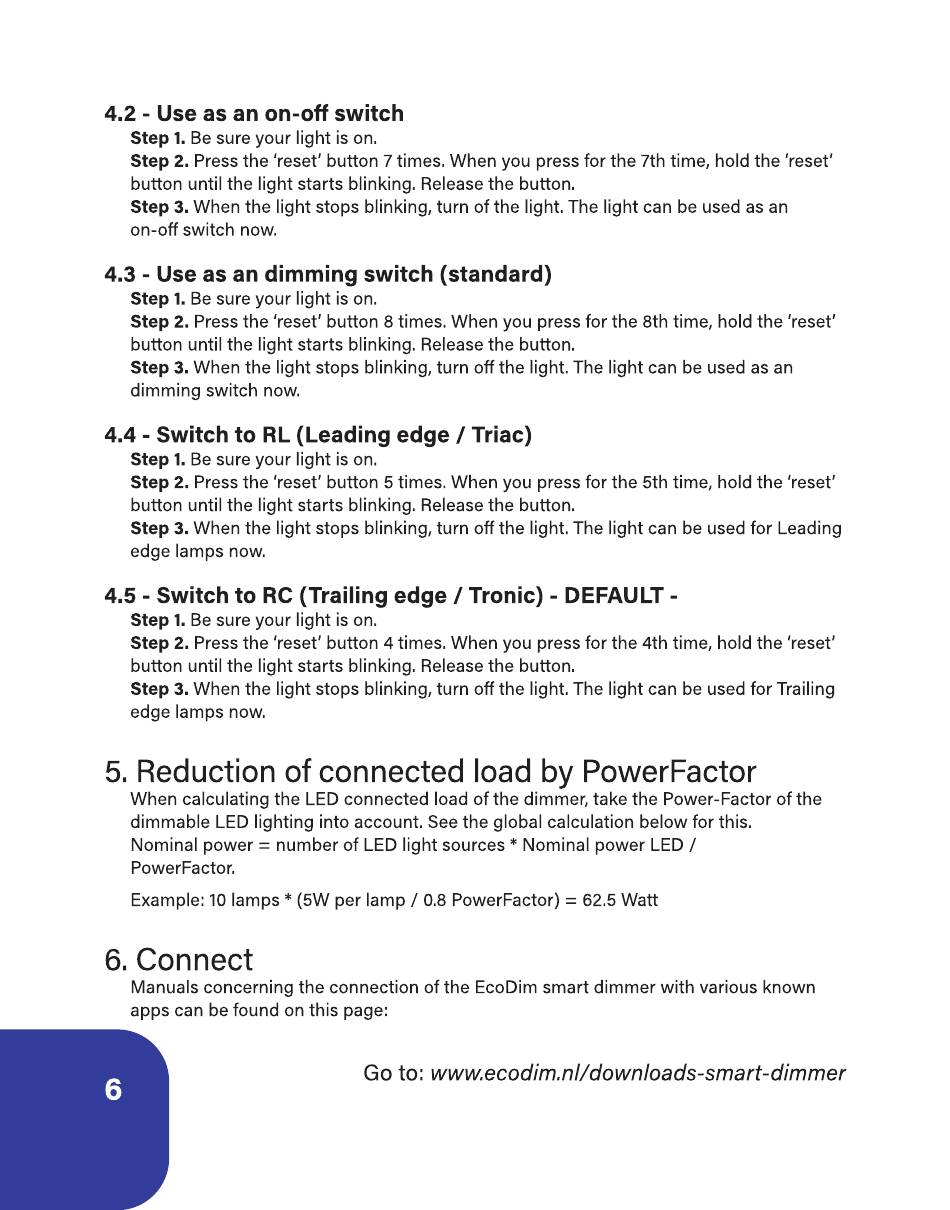

4.2 - Use as an on-off
Step I. ae sure your light is on.
Step 2. Press the 'reset' button 7 times. When you press for the 7th time, hold the 'reset'
button until the light starts blinking. Releasethe button.
Step 3.When the light stops blinking, tum ot the light, The light can be used as an
on-off switch
4.3 - Use as an dimming switch (standard)
Step 1. sure
Step 2. the 'reset•button Btimes. "Vhenyou press for the 8th time, hold the
button until the light starts blinking, Releasethe button.
Step 3. When the light Stops blinking, turn Off the light. The light Can be used as an
dimming switch
4.4 - Switch to RL (Leading edge / Triac)
Step l. ae sureyour light is on.
Step 2. Pressthe 'reset' button Stimes. When you press for the 5th time, hold the teset'
button until the light starts blinking. Release the button.
Step 3.When the light stops blinking, turn Offthe light. The light Canbe usedfor Leading
edge lamps now
4.5 - switch to RC (Trailing edge / Tronic) - DEFAULT -
Step I. ae sureyour light is on.
Step 2. Press the 'reset' button 4 times. When you press for the 4th time, hold the 'reset'
button until the light starts blinking. Releasethe button.
Step 3.When the light stops blinking, tum off the light. The light can be usedfor Trailing
edge lamps now.
5. Reduction of connected load by PowerFactor
When calculating the LEOconnected load otthe dimmer,take the Power-Factor ofthe
dimmable LED lighting into account.
Nominal power = number OfLEOlight sources• Nominal power LED /
PowerFactor.
Example;10 lamps • (5W per lamp / 08 powerFaCtOr) = 62.5"Vatt
6, Connect
Manuals concerning
apps Can found Onthis page;
switch
light is on.
See the global calculation
the connection Of the EcoDim Smart dimmer With various known
Go to: www.ecodim.n//downloads-smart-dimmer
below for this.
