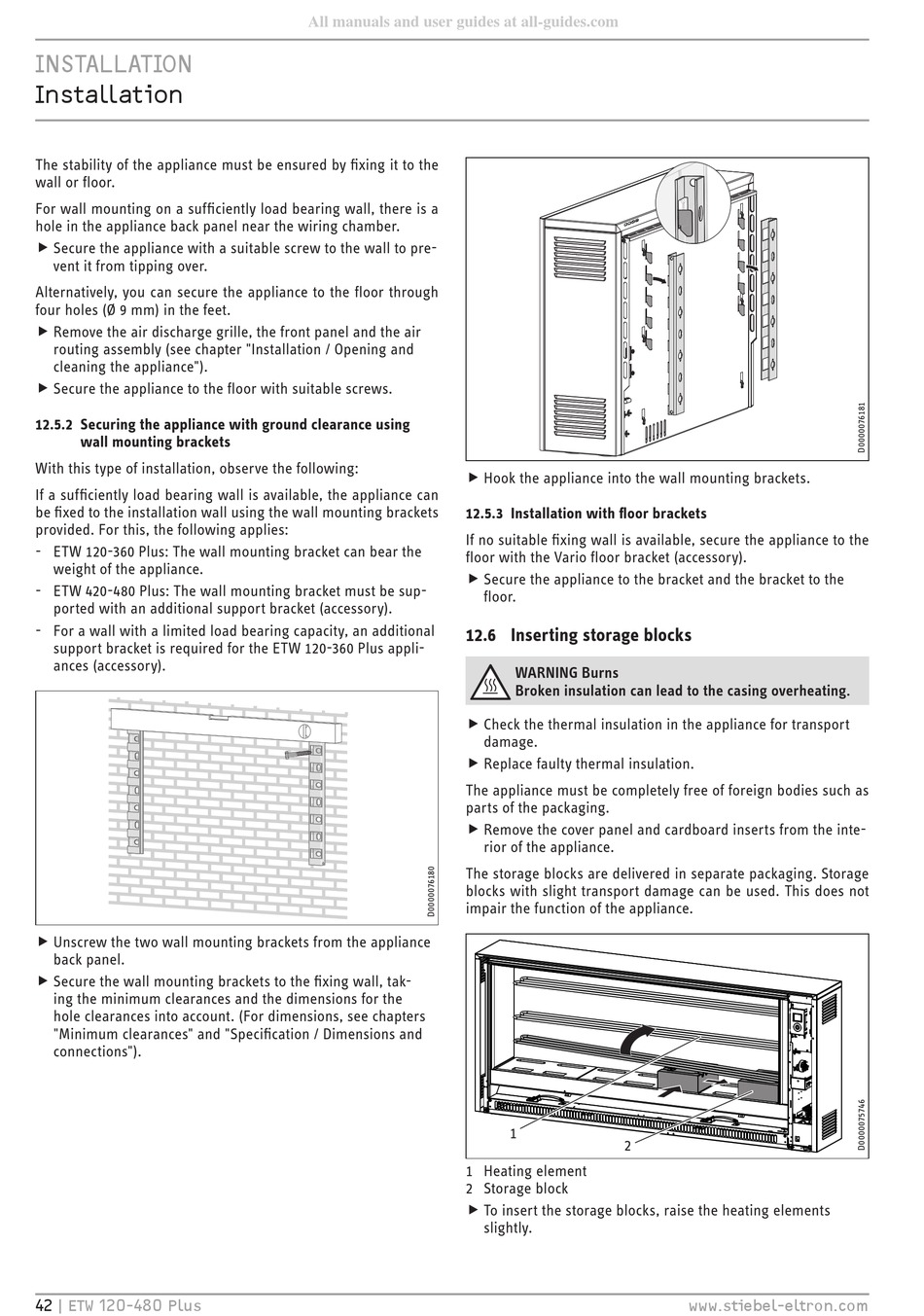

INsTALLATIoN
Installation
The stability of the appliance must be ensured by fixing it to the
wall or floor.
For wall mounting on a sufficiently load bearing wall, there is a
hole in the appliance back panel near the wiring chamber.
f Secure the appliance with a suitable screw to the wall to pre-
f
vent it from tipping over.
Alternatively, you can secure the appliance to the floor through
four holes (Ø 9 mm) in the feet.
f Remove the air discharge grille, the front panel and the air
f
routing assembly (see chapter "Installation / Opening and
cleaning the appliance").
f Secure the appliance to the floor with suitable screws.
f
12.5.2 Securing the appliance with ground clearance using
wall mounting brackets
With this type of installation, observe the following:
If a sufficiently load bearing wall is available, the appliance can
be fixed to the installation wall using the wall mounting brackets
provided. For this, the following applies:
- ETW 120-360 Plus: The wall mounting bracket can bear the
weight of the appliance.
- ETW 420-480 Plus: The wall mounting bracket must be sup-
ported with an additional support bracket (accessory).
- For a wall with a limited load bearing capacity, an additional
support bracket is required for the ETW 120-360 Plus appli-
ances (accessory).
f Unscrew the two wall mounting brackets from the appliance
f
back panel.
f Secure the wall mounting brackets to the fixing wall, tak-
f
ing the minimum clearances and the dimensions for the
hole clearances into account. (For dimensions, see chapters
"Minimum clearances" and "Specification / Dimensions and
connections").
42
| ETW 120-480 Plus
All manuals and user guides at all-guides.com
f Hook the appliance into the wall mounting brackets.
f
12.5.3 Installation with floor brackets
If no suitable fixing wall is available, secure the appliance to the
floor with the Vario floor bracket (accessory).
f Secure the appliance to the bracket and the bracket to the
f
12.6 Inserting storage blocks
f Check the thermal insulation in the appliance for transport
f
f Replace faulty thermal insulation.
f
The appliance must be completely free of foreign bodies such as
parts of the packaging.
f Remove the cover panel and cardboard inserts from the inte-
f
The storage blocks are delivered in separate packaging. Storage
blocks with slight transport damage can be used. This does not
impair the function of the appliance.
1 Heating element
2 Storage block
f To insert the storage blocks, raise the heating elements
f
floor.
WARNING Burns
Broken insulation can lead to the casing overheating.
damage.
rior of the appliance.
1
2
slightly.
www.stiebel-eltron.com
