English EX-1339HMVS

4. Switch-Settings

There are 16 4-pin DIP-switches on the bottom of the EX-1339HMVS. Of thes, 8 DIP-switches for
the modes (M1-M8) and 8 DIP-switches for termination (T1-T8) (see picture below). The switches
are numbered for the assignment of the ports. For example, for the port 1 must be used switch M1
or T1. The following tables on page 7 and 8, you can see the setting of the mode switch and
terminator switch.

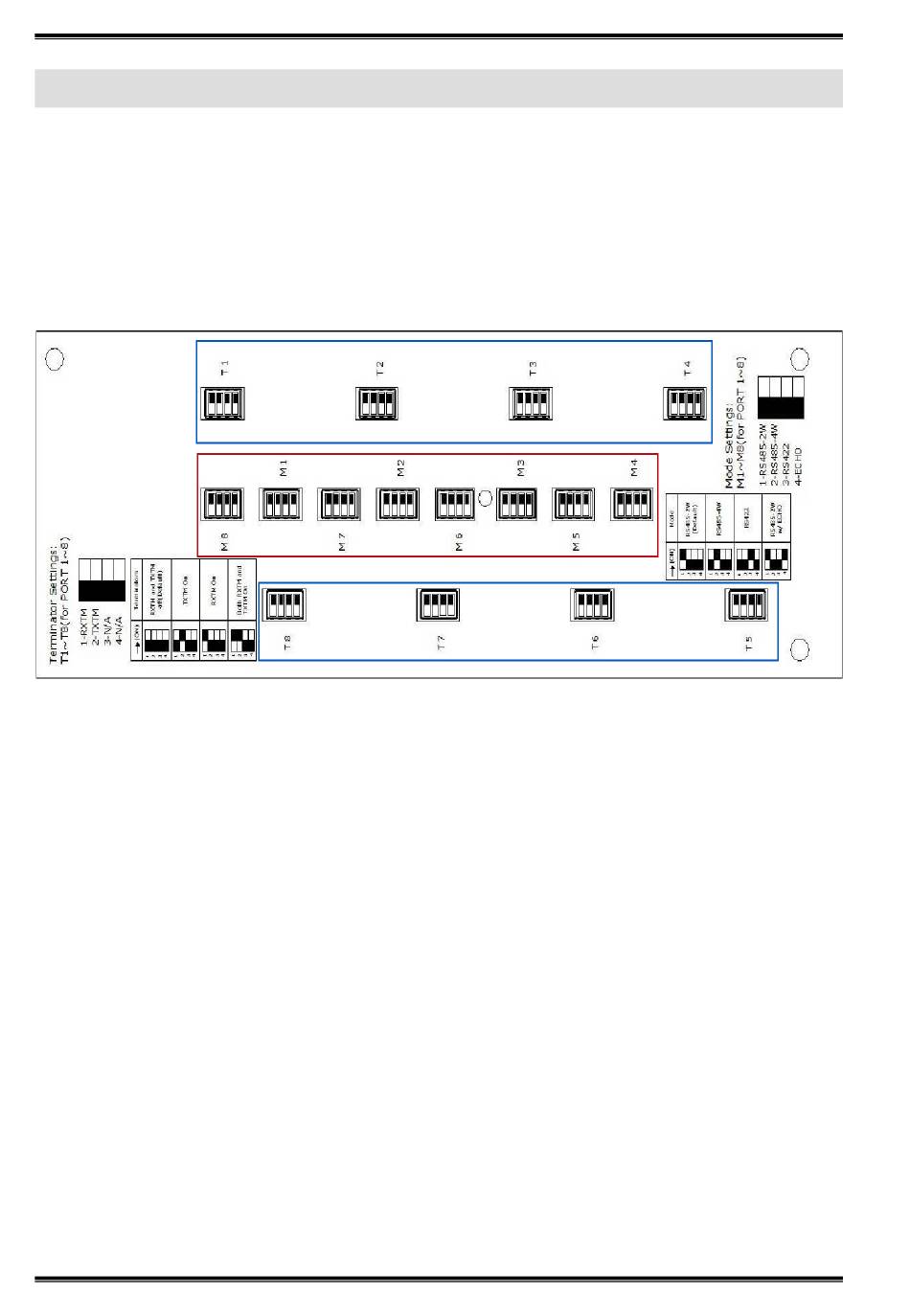

Red= Mode Switch (M1-M8) Blue= Terminator Switch (T1-T8)
