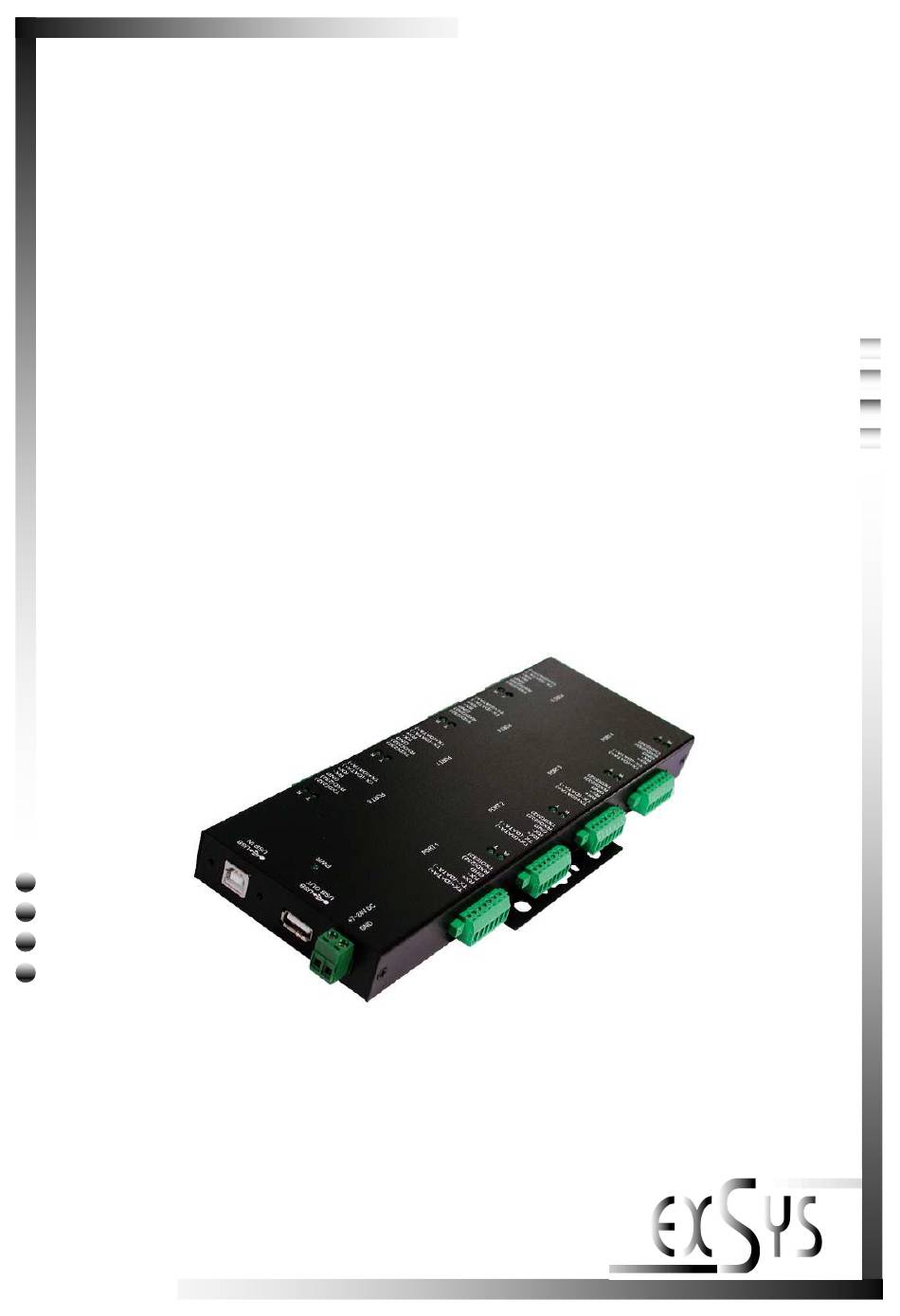

- Seite 1 Bedienungsanleitung Vers. 1.0 / 10.11.14 EX-1339HMV EX-1339HMVS 8x RS-232/422/485 zu USB 2.0 Manual...
-
Seite 2: Inhaltsverzeichnis
EX-1339HMV / EX-1339HMVS Inhaltsverzeichnis Beschreibung ······················································································ 3 Lieferumfang ······················································································ 3 Aufbau und Anschlüsse ······································································ 4-5 3.1 Aufbau ······································································································ 4 3.2 Anschlüsse ································································································ 5 Switch-Einstellungen ········································································· 6-8 Hardware Installation ············································································ 9 Treiber Installation ··········································································· 9-10 Index Description ························································································ 11 Extent of Delivery ··············································································· 11 Layout and Connections ··································································... -
Seite 3: Beschreibung
Deutsch 1. Beschreibung Die EX-1339HMV / EX-1339HMVS ist ein Modul zur Umsetzung von USB 2.0 auf acht RS-232/422/485 Schnittstellen mit FIFO 16C550 Ports für den Anschluss von High Speed Seriellen Peripherie Geräten (z.B. Modem, Plotter usw.). Das USB Modul ist Hot Plug &... -
Seite 4: Aufbau Und Anschlüsse
Deutsch EX-1339HMV / EX-1339HMVS 3. Aufbau und Anschlüsse 3.1 Aufbau Port 5 (S5): Port 6 (S6): Betriebs LED RS-232/422/485 RS-232/422/485 Port 7 (S7): RS-232/422/485 Port 8 (S8): RS-232/422/485 Port 4 (S4): RS-232/422/485 Port 3 (S3): USB B-Buchse RS-232/422/485 (verschraubbar) Port 2 (S2):... -
Seite 5: Anschlüsse
EX-1339HMV / EX-1339HMVS Deutsch 3. Aufbau und Anschlüsse 3.2 Anschlüsse +7V ~ 24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V ~ 24V USB A-Buchse: USB 2.0 A-Buchse Signal Signal... -
Seite 6: Switch-Einstellungen
EX-1339HMV / EX-1339HMVS 4. Switch-Einstellungen Es gibt 16 4-Pin DIP-Schalter auf der Unterseite der EX-1339HMV / EX-1339HMVS. Davon sind 8 Dip-Schalter für den Modi (M1-M8) und 8 Dip-Schalter für die Terminie- rung (T1-T8) (siehe nachfolgendes Bild). Die Switche sind für die Zuordnung der Ports nummeriert. - Seite 7 EX-1339HMV / EX-1339HMVS Deutsch 4. Switch-Einstellungen Mode Switch (M1-M8) RS 485-2W RS 485-4W RS 422 ECHO DIP-Schalter Beschreibung RS 485-2W RS 485 2-Draht Mode RS 485-4W (Werkseinstellung) RS 422 ECHO RS 485-2W RS 485-4W RS 485 4-Draht Mode RS 422...
- Seite 8 Deutsch EX-1339HMV / EX-1339HMVS 4. Switch-Einstellungen Terminator Switch (T1-T8) RXTM 120 Ohm zwischen RX+ und RX- TXTM 120 Ohm zwischen TX+ und TX- Keine Funktion Keine Funktion DIP-Schalter Beschreibung RXTM Beide Terminatoren für RX+/RX– und TXTM TX+/TX– sind inaktiv (Werkseinstellung)
-
Seite 9: Hardware Installation
EX-1339HMV / EX-1339HMVS Deutsch 5. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwi- schen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. - Seite 10 Deutsch EX-1339HMV / EX-1339HMVS 6. Treiber Installation ÜBERPRÜFEN DES INSTALLIERTEN TREIBERS Klicken Sie auf Start< >Ausführen< geben Sie “compmgmt.msc“ ein und klicken Sie auf >OK<. Wählen Sie nun >GeräteManager<. Dort müssten Sie unter „Anschlüsse (COM und LPT)“ mehrere neue Einträge z.B. „USB Serial Port (COM3)“ und unter „Universeller Serieller Bus Controller“...
-
Seite 11: Description
English 1. Description The EX-1339HMV / EX-1339HMVS are plug & play high-speed USB 2.0 to Serial mod- ule. It converts USB 2.0 to eight RS-232/422/485 screw terminal. It is the optimal solu- tion for connection with different devices (e.g. Modem, Plotter etc.). The USB to Serial module design utilizes the Chip-Set FTDI with 16C550 UART. -
Seite 12: Layout And Connections
English EX-1339HMV / EX-1339HMVS 3. Layout and Connections 3.1 Layout Port 5 (S5): Port 6 (S6): Power LED RS-232/422/485 RS-232/422/485 Port 7 (S7): RS-232/422/485 Port 8 (S8): RS-232/422/485 Port 4 (S4): RS-232/422/485 Port 3 (S3): USB B-Port RS-232/422/485 (screw lock) -
Seite 13: Connections
EX-1339HMV / EX-1339HMVS English 3. Layout and Connections 3.2 Connections +7V ~ 24V T-Block: ATTENTION!!! Never connect power to GND it will destroy your Hardware!!! GND (Ground) +7V ~ 24V USB A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- USB B-Port: USB 2.0 B-Port... -
Seite 14: Switch-Settings
EX-1339HMV / EX-1339HMVS 4. Switch-Settings There are 16 4-pin DIP-switches on the bottom of the EX-1339HMV / EX-1339HMVS. Of thes, 8 DIP-switches for the modes (M1-M8) and 8 DIP-switches for termination (T1- T8) (see picture below). The switches are numbered for the assignment of the ports. - Seite 15 EX-1339HMV / EX-1339HMVS English 4. Switch-Settings Mode Switch (M1-M8) RS 485-2W RS 485-4W RS 422 ECHO DIP-Switch Description RS 485-2W RS 485 2-wire Mode RS 485-4W (Factory Setting) RS 422 ECHO RS 485-2W RS 485-4W RS 485 4-wire Mode RS 422...
- Seite 16 English EX-1339HMV / EX-1339HMVS 4. Switch-Settings Terminator Switch (T1-T8) RXTM 120 Ohm between RX+ and RX- TXTM 120 Ohm between TX+ and TX- No Function No Function DIP-Switch Description RXTM Both Terminator for RX+/RX– and TX+/ TXTM TX– are disable...
-
Seite 17: Hardware Installation
EX-1339HMV / EX-1339HMVS English 5. Hardware Installation Because there are large differences between PC’s, we can give you only a general in- stallation guide. Please refer your computer’s reference manual whenever in doubt. 1. Connect the USB cable (B-Plug) to the USB B-Port at the USB module. - Seite 18 English EX-1339HMV / EX-1339HMVS 6. Software Installation CHECK THE INSTALLED DRIVER Click at Start<>Run< then enter “compmgmt.msc“ and click at >OK<. In the windows that open select >Device Manager<. Under ”Ports (COM and LPT)“ you should find some new entry’s, for example „USB Serial Port (COM3)“. If you see this or similar entries the module is installed correctly.
