CONNECTORS & LED'S
RJ45 Port:
RJ45 Port
Pin Signal PoE Pin
1 BI_DA+ VCC+
2 BI_DA- VCC+
87654321
3 BI_DB+ VCC-
4 BI_DC+ VCC+
SFP slot:
ATTENTION!
SFP Transceivers are a Class 1 Laser/LED product. To avoid
causing serious damage to your
directly into the laser beam.
Status LEDs:
PoE LED
LINK / Activity LED
LED Name Color LED Function
Steady on: Linked
LINK (ACT) Yellow
Blinking: Data Transmission
Steady on: PoE is activated
PoE Green Blinking: Power Device (PD) detected
Off: No (PD) device connected
Steady on: Fiber linked
FX Green
Blinking: Data Transmission
12V to 48V T-Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect the power supply to the terminal block
while it is switched on!
V- V+ V- V+
Redundant power supply possible to reduce operational failure.
5
HARDWARE INSTALLATION
Please read the following installation instructions.
1. Install the EX-60340 on a mounting rail using the DIN-Rail kit or on the wall using the wall
mounting bracket.
Signal PoE
The DIN-Rail Kit is pre-assembled with
5 BI_DC- VCC+
two screws on the rear side
6 BI_DB- VCC-
7 BI_DD+ VCC-
8 BI_DD- VCC-
2. Slide the optionally available SFP transceiver into the SFP slot.
eyes, do not stare
3. Connect your network device (PoE IP Camera etc.) to the switch using a network cable.
4. Connect the fiber optic cable used to connect to the media converter or switch to the SFP
transceiver you are using.
CAUTION! Do not look directly into the laser beam of the fiber optic connector!
5. Connect the power connector of the optionally available power supply to the terminal block
and switch on the power supply.
6. After the power is turned on, the PWR indicator lights up. If the indicator does not light up,
FX LED
check that it is connected to the power supply correctly.
7. When all cables are connected correctly, the indicators light up according to the port status
of the LEDs (page 5).
NOTICE & CLEANING
Switch off the power supply before disconnecting modules or wires.
The propper power supply voltage is indicated on the product label. Check the voltage of your
power source to ensure you are using the correct voltage. DO NOT use a voltage higher than
what is specified on the product.
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not stare directly into the laser beam.
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket.
Attention! Never use a moist or wet cloth for cleaning!
To install the wall mount, the DIN-
Rail kit must be replaced by the
mounting bracket
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.0 / 21.02.23

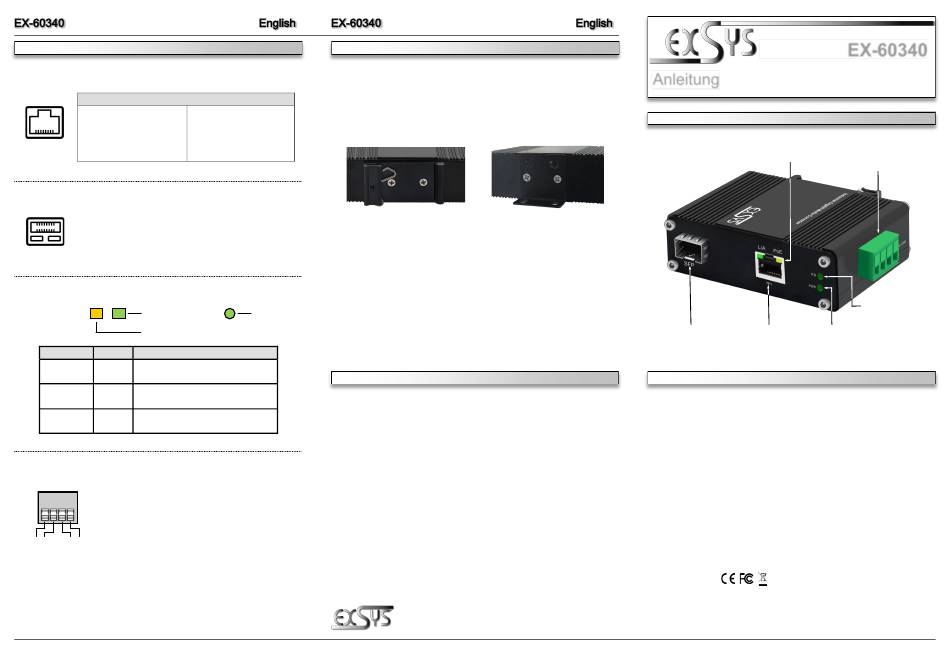

AUFBAU
Status LEDs
1x SFP Slot 1x RJ45 Betriebs-LED
100/1000 Gigabit PoE
BESCHREIBUNG & TECHNISCHE DATEN
Der kompakte industrietaugliche Medienkonverter EX-60340 bietet eine zuverlässige Konvertie-
rung zwischen Kupfer- und Lichtwellenleiter-Umgebungen.
10/100/1000Base-T mit 60W PoE+ und dual mode 100/1000Base-X SFP (auto detection). Der
Ethernet-Port unterstützt sowohl den Halbduplex- als auch den Vollduplex-Modus. Je nach
Bedarf können verschiedene Arten von optional erhältlichen SFP-Modulen verwendet werden.
Dank dem robusten Metallgehäuse und dem erweiterten Betriebstemperaturbereich von -40°C
bis 80°C ist er für eine Vielzahl von Anwendungen auch in rauen Umgebungen geeignet. Die
Stromversorgung erfolgt über den Terminal Block (12~48VDC). Der EX-60340 unterstützt Auto-
MDI/MDI-X und Auto-Negotation. Im Lieferumfang ist ein DIN-Rail Kit (vormontiert) und ein
Wandmontagebügel enthalten.
Kompatibilität: Gigabit Ethernet 10/100/1000Base-T, 100/1000Base-X
PoE: IEEE 802.3af/at (PoE+)
PoE (PSE): Typ 1 = 15.4W / Typ 2 = 34.2W / 4PPoE = 60W
Betriebssysteme: Alle Betriebssysteme
Anschlüsse: 1x RJ45-Buchse, 1x SFP-Slot, 1x Terminal Block 12~48VDC
Lieferumfang: EX-60340, DIN-Rail Kit, Wandmontagehalterung,
Anleitung
Zertifikate:
1
EX-60340
12-48V T-Block für optional
erhältliches Netzteil
FX-LED
Er ist kompatibel zu
