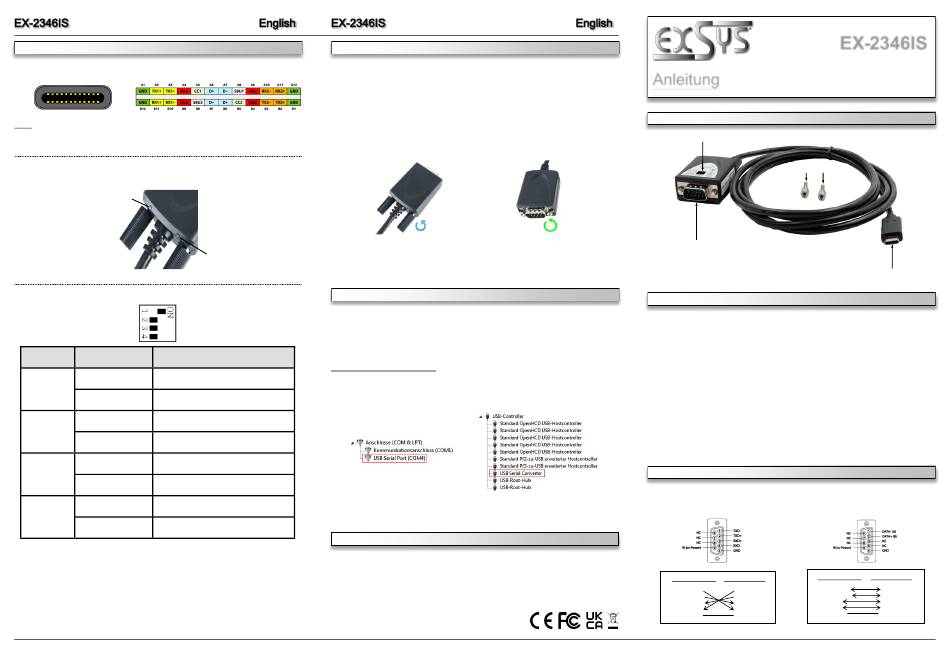

Exsys EX-2346IS Anleitung

CONNECTORS & DIP-SWITCH
USB 2.0 C-Plug:
Note!
By dual assignment of the pins, the USB Type-C plug can be plugged into the port on
both sides.
Status LED's:
RXD
DIP-Switch:
DIP-Switch Position
ON (Factory Settings)
1
OFF 4-wire RS-485 or RS-422 Mode
ON Reserved for features in future
2
OFF (Factory Settings) Reserved for features in future
ON 120 Ohm TXD Termination Resistor is Enabled
3
OFF (Factory Settings) 120 Ohm TXD Termination Resistor is Disabled
ON 120 Ohm RXD Termination Resistor is Enabled
4
OFF (Factory Settings) 120 Ohm RXD Termination Resistor is Disabled
5
HARDWARE INSTALLATION
Because there are large differences between PCs, we can give you only a general installation
guide. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-2346IS USB to the USB A-Port at the your PC.
2. If you would like to screw the serial cable to the 9 Pin connector of the EX-1346IS, then
unscrew the screws (see Picture 1) and screw the supplied hexagon nuts into the holes on
the EX-2346IS (see Picture 2). Now you can attach the serial cable to the EX-1346IS.
TXD
3. When you are ready you can start your PC and continue with „Driver Installation".
DRIVER INSTALLATION
After the hardware installation, the operating system will recognize the device automatically and
install the drivers. If the driver should not be installed automatically, please download the driver
from our homepage (www.exsys.de / www.exsys.ch) first. Now select the folder with your
operating system and install the driver. Follow the hardware assistant and finish the installation.
Important! Restart your PC in any case after installing the drivers.
Description
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
2-wire RS-485 Mode
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
CLEANING
To clean the unit, use only a dry, lint-free cloth and apply light pressure to remove dirt. Be
careful not to leave any fibres of the cloth in the connector area.
Never use a damp or wet cloth for cleaning!
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Remove the Screws Insert the Hexagon Nuts
Picture 1 Picture 2
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17 Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
Anleitung Anleitung
Vers. 1.0, 21.12.22 Vers. 1.2 / 22.08.24
AUFBAU
DIP-Schalter
2x Sechskantmuttern
S1: 9 Pin Stecker Seriell RS-422/485
BESCHREIBUNG & TECHNISCHE DATEN
Das USB-C zu seriell EX-2346IS stellt eine serielle RS-422/485 High Performance UART
16C550 Schnittstelle mit 15KV ESD Überspannungsschutz und 4.0KV Isolation zur Verfügung.
Es wurde entwickelt um serielle Geräte am USB-C Port eines PCs, Servers oder einer
Workstation anzuschließen. Durch die einfache Installation am USB-Port muss der Rechner
nicht geöffnet werden und der Konverter kann bei laufendem Betrieb installiert werden. Die
Rändelschrauben können durch die beiden mitgelieferten Muttern ersetzt werden, wenn das
anzuschließende Kabel über Schrauben verfügt. Zusätzlich wird ein 9 Pin Adapter zu 5 Pin
Terminal Block mitgeliefert. Das Kabel bietet die perfekte Lösung für den Anschluss von
Barcodescanner, Kartenlesegeräte, Waagen usw.
Kompatibilität: USB 1.1, 2.0, 3.0, 3.1, 3.2
Betriebssysteme: Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
Anschlüsse: 1x USB 2.0 C-Stecker, 1x 9 Pin Stecker Seriell RS-422/485
Lieferumfang: EX-2346IS, Adapter 9 Pin Buchse zu 5 Pin Terminal Block,
2x Sechskantmuttern, Anleitung
ANSCHLÜSSE & DIP-SCHALTER
DB 9M RS-422/485 Anschlussbelegung:
RS-422 und RS-485 4-Draht Anschlussbelegung
RS-485 2-Draht Anschlussbelegung
DB9 (EX-2346IS)
DB9 (EX-2346IS) DB9 (Endgerät)
1 TXD- 1 TCD-
2 TXD+ 2 TXD+
3 RXD+ 3 RXD+
4 RXD- 4 RXD-
5 GND 5 GND
1
EX-2346IS
USB 2.0 C-Stecker
zum Anschluss an PC
DB9 (Endgerät)
1 DATA- 1 DATA-
2 DATA+ 2 DATA+
3 NC 3 NC
4 NC 4 NC
5 GND 5 GND
