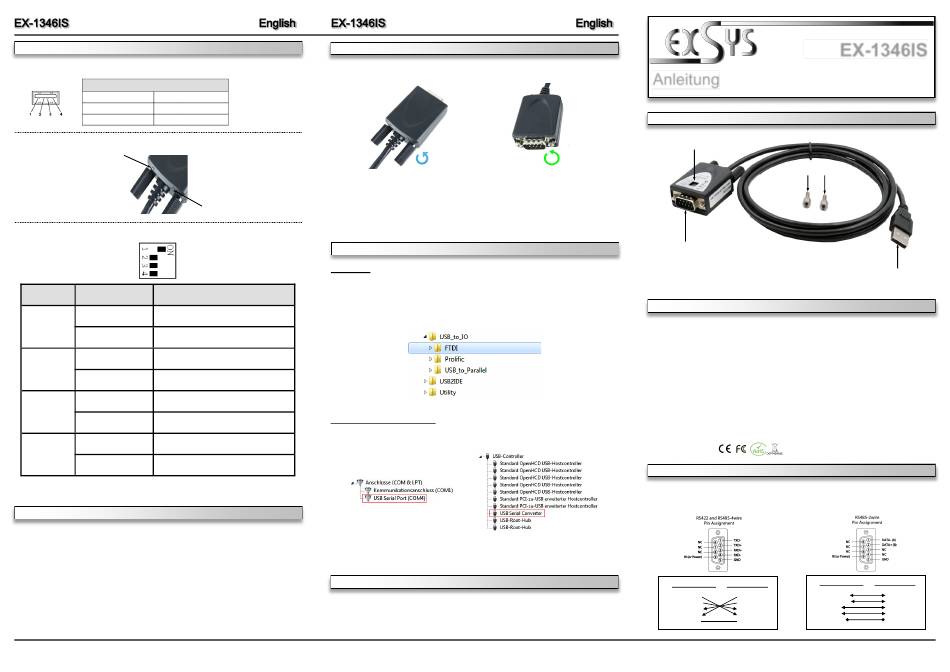

Exsys EX-1346IS Anleitung

CONNECTORS, STATUS LED'S & DIP-SWITCH
USB 2.0 A-Plug:
USB 2.0 A-Plug
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA- 4
Status LED's:
RXD
DIP-Switch:
DIP-Switch Position
ON (Factory Settings)
1
OFF 4-wire RS-485 or RS-422 Mode
ON Reserved for features in future
2
OFF (Factory Settings) Reserved for features in future
ON 120 Ohm TXD Termination Resistor is Enabled
3
OFF (Factory Settings) 120 Ohm TXD Termination Resistor is Disabled
ON 120 Ohm RXD Termination Resistor is Enabled
4
OFF (Factory Settings) 120 Ohm RXD Termination Resistor is Disabled
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1346IS. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-1346IS USB to the USB A-Port at the your PC.
2. If you would like to screw the serial cable to the 9 Pin connector of the EX-1346IS, then
unscrew the screws (see Picture 1) and screw the supplied hexagon nuts into the holes on
the EX-1346IS (see Picture 2). Now you can attach the serial cable to the EX-1346IS.
5
HARDWARE INSTALLATION
GND
3. Now set the DIP-Switch to the desired settings (see figure DIP-Switch on page 2).
TXD
4. When you are ready you can start your PC and continue with the point „Driver Installation".
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver shoul not be installed automatically, please insert the Driver CD into your
Description CD-Rom drive (e.g. Drive D:) and open the folder „USB_to_IO/FTDI". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Important! Restart your PC in any case after installing the drivers.
2-wire RS-485 Mode
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Remove the Screws Insert the Hexagon Nuts
Picture 1 Picture 2
6
Anleitung
Vers. 1.0 / 07.09.21
AUFBAU
DIP-Schalter
2x Sechskantmuttern
S1: 9 Pin Stecker Seriell RS-422/485
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1346IS ist ein Modul zur Umsetzung von USB 2.0 auf eine RS-422/485 Schnittstelle mit
FIFO 16C550 Port mit 15KV ESD Überspannungs-Schutz und 4KV Optische Isolation für den
Anschluss von High Speed seriellen RS-422/485 Peripherie Geräten (z.B. Modem, Plotter
usw.). Die EX-1346IS ist mit einem USB 2.0 A-Stecker zum Anschluss an den PC und einem
RS-422/485 seriellen 9 Pin Stecker ausgestattet. Das USB Modul ist Hot Plug & Play fähig. Für
die Einstellungen der I/O Adressen und Interrupts sind keine Jumper und Einstellungen notwen-
dig, da die Einstellungen automatisch vom System BIOS und bei der Installation des Betriebs-
systems vorgenommen werden.
Kompatibilität: USB 1.1, 2.0 & 3.2
Betriebssysteme: Windows 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux/ MAC
Anschlüsse: 1x USB 2.0 A-Stecker, 1x 9 Pin Stecker Seriell RS-422/485
Lieferumfang: EX-1346IS, Adapter 9 Pin Buchse zu 5 Pin Terminal Block,
2x Sechskantmuttern, Treiber CD, Anleitung
Zertifikate:
ANSCHLÜSSE, STATUS LED'S & DIP-SCHALTER
RS-422/485 Anschlussbelegung:
DB 9M
DB9 (EX-1346IS)
DB9 (EX-1346IS) DB9 (Endgerät)
1 TXD- 1 TCD-
2 TXD+ 2 TXD+
3 RXD+ 3 RXD+
4 RXD- 4 RXD-
5 GND 5 GND
1
EX-1346IS
USB 2.0 A-Stecker
zum Anschluss an PC
DB9 (Endgerät)
1 DATA- 1 DATA-
2 DATA+ 2 DATA+
3 NC 3 NC
4 NC 4 NC
5 GND 5 GND
