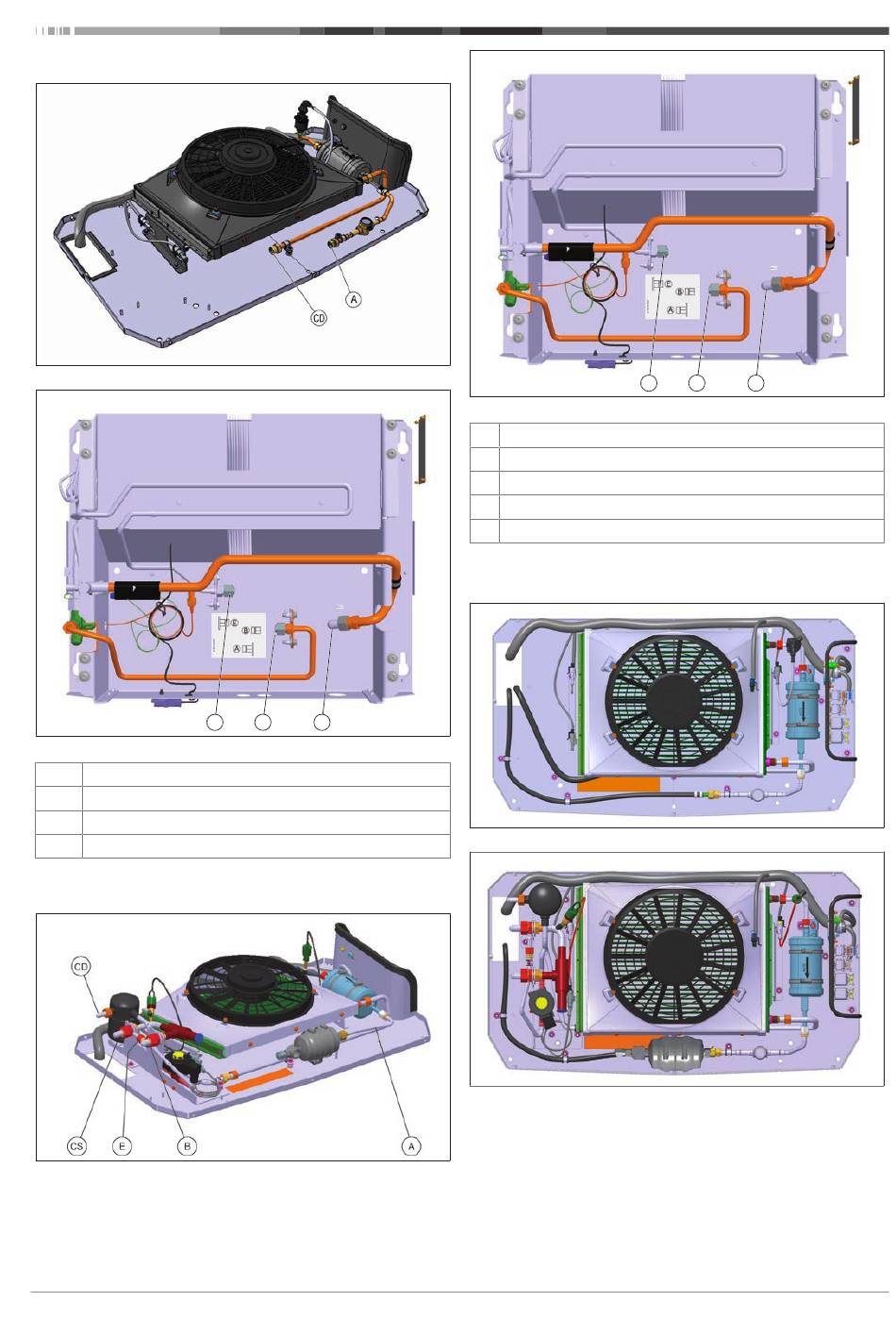

Webasto Frigo Top 24 RT-D Einbauanweisung Seite 9

7.3.1 Frigo Top 24 RT-D R134a hose connections
Fig. 15 Frigo Top 24 RT-D, Connections, condenser R134a
Fig. 16 Frigo Top 24 RT-D, Connections, evaporator R134a
A Liquid line
CD Compressor discharge
B=CS Compressor suction
E Defrost (closed on R134a)
7.3.2 Frigo Top 24 RT-DG R452A hose
connections
Fig. 17 Frigo Top 24 RT-DG, Connections, condenser R452A
6248543A Frigo Top 24 RT-D _ RT-DG ML
A
E B
Fig. 16 Frigo Top 24 RT-DG, Connections, evaporator R452A
A Liquid line
B CRO inlet = evaporator outlet
CD Compressor discharge = oil separator inlet
CS Compressor suction
E Defrost line
7.4 Hose lay-out in Frigo Top
The images below show the hose lay-out in the Frigo Top.
Fig. 19 Frigo Top 24 RT-D, hose lay-out condenser R134a
Fig. 20 Frigo Top 24 RT-DG, hose lay-out condenser R452A
Installation of the hoses | 7
E A B
