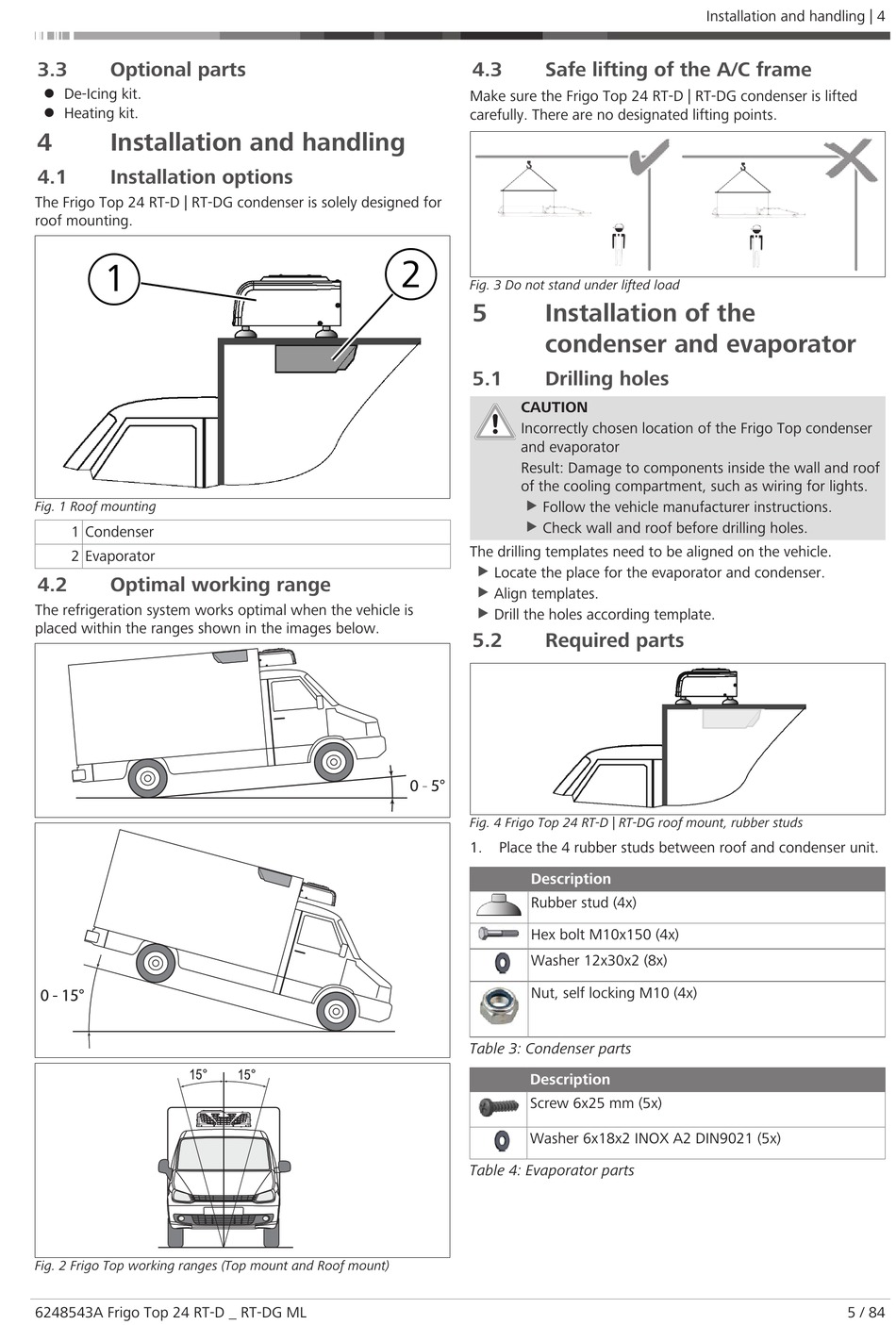

3.3

Optional parts

l De-Icing kit.
l Heating kit.
4

Installation and handling

4.1

Installation options

The Frigo Top 24 RT-D | RT-DG condenser is solely designed for
roof mounting.
1
Fig. 1 Roof mounting
1 Condenser
2 Evaporator
4.2

Optimal working range

The refrigeration system works optimal when the vehicle is
placed within the ranges shown in the images below.
Fig. 2 Frigo Top working ranges (Top mount and Roof mount)
6248543A Frigo Top 24 RT-D _ RT-DG ML
4.3

Safe lifting of the A/C frame

Make sure the Frigo Top 24 RT-D | RT-DG condenser is lifted
carefully. There are no designated lifting points.
2
Fig. 3 Do not stand under lifted load
5 Installation of the
condenser and evaporator
5.1

Drilling holes

CAUTION
Incorrectly chosen location of the Frigo Top condenser
and evaporator
Result: Damage to components inside the wall and roof
of the cooling compartment, such as wiring for lights.
u
Follow the vehicle manufacturer instructions.
u
Check wall and roof before drilling holes.
The drilling templates need to be aligned on the vehicle.
u
Locate the place for the evaporator and condenser.
u
Align templates.
u Drill the holes according template.
5.2

Required parts

Fig. 4 Frigo Top 24 RT-D | RT-DG roof mount, rubber studs
1. Place the 4 rubber studs between roof and condenser unit.
Description
Rubber stud (4x)
Hex bolt M10x150 (4x)
Washer 12x30x2 (8x)
Nut, self locking M10 (4x)
Table 3: Condenser parts
Description
Screw 6x25 mm (5x)
Washer 6x18x2 INOX A2 DIN9021 (5x)
Table 4: Evaporator parts
