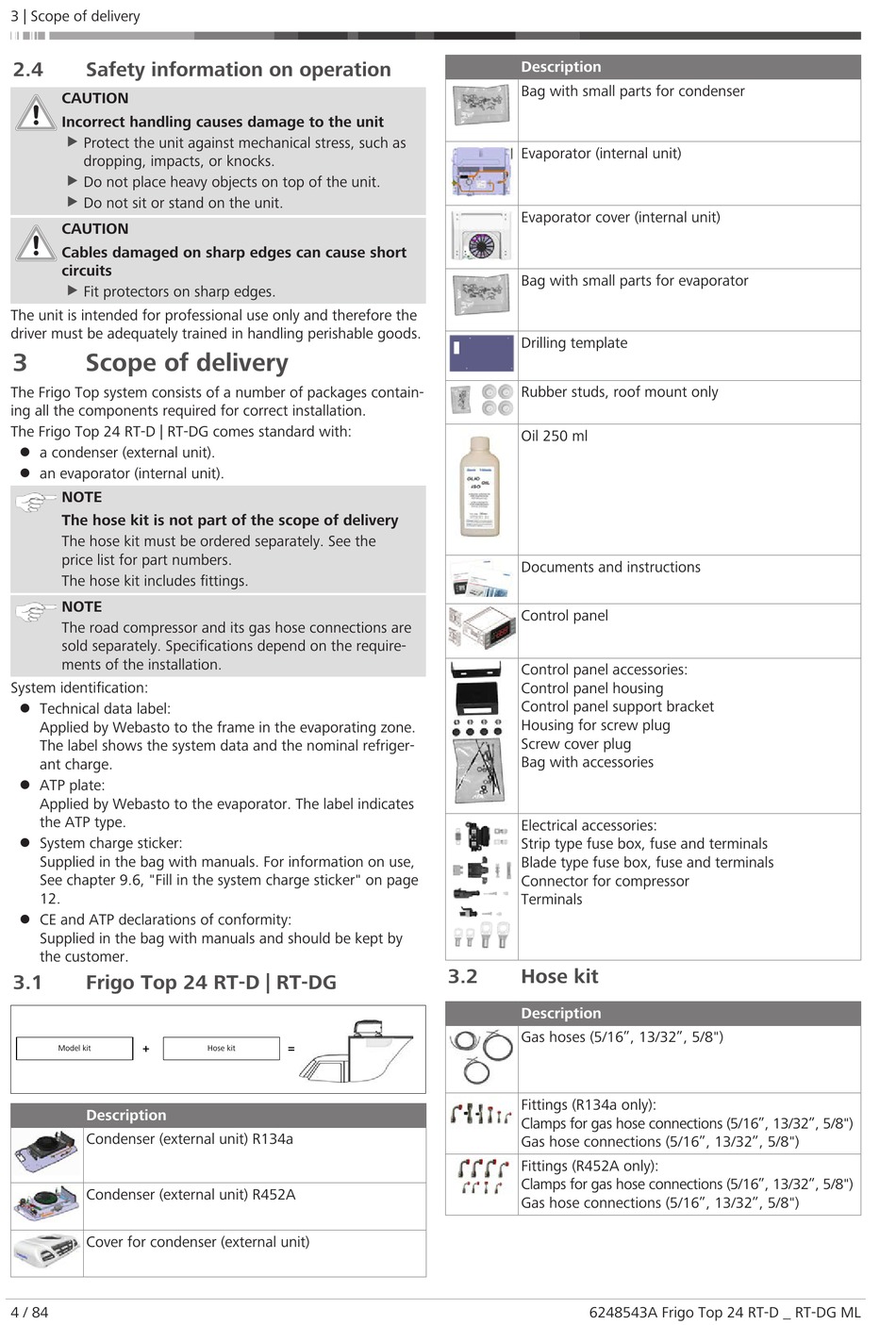

Webasto Frigo Top 24 RT-D Einbauanweisung Seite 4

3 | Scope of delivery
2.4 Safety information on operation
CAUTION
Incorrect handling causes damage to the unit
u Protect the unit against mechanical stress, such as
dropping, impacts, or knocks.
u
Do not place heavy objects on top of the unit.
u Do not sit or stand on the unit.
CAUTION
Cables damaged on sharp edges can cause short
circuits
u
Fit protectors on sharp edges.
The unit is intended for professional use only and therefore the
driver must be adequately trained in handling perishable goods.
3 Scope of delivery
The Frigo Top system consists of a number of packages contain-
ing all the components required for correct installation.
The Frigo Top 24 RT-D | RT-DG comes standard with:
l a condenser (external unit).
l an evaporator (internal unit).
NOTE
The hose kit is not part of the scope of delivery
The hose kit must be ordered separately. See the
price list for part numbers.
The hose kit includes fittings.
NOTE
The road compressor and its gas hose connections are
sold separately. Specifications depend on the require-
ments of the installation.
System identification:
l Technical data label:
Applied by Webasto to the frame in the evaporating zone.
The label shows the system data and the nominal refriger-
ant charge.
l ATP plate:
Applied by Webasto to the evaporator. The label indicates
the ATP type.
l System charge sticker:
Supplied in the bag with manuals. For information on use,
See chapter 9.6, "Fill in the system charge sticker" on page
12.
l CE and ATP declarations of conformity:
Supplied in the bag with manuals and should be kept by
the customer.
3.1 Frigo Top 24 RT-D | RT-DG
+
Model kit
Description
Condenser (external unit) R134a
Condenser (external unit) R452A
Cover for condenser (external unit)
4 / 84
=
Hose kit
Description
Bag with small parts for condenser
Evaporator (internal unit)
Evaporator cover (internal unit)
Bag with small parts for evaporator
Drilling template
Rubber studs, roof mount only
Oil 250 ml
Documents and instructions
Control panel
Control panel accessories:
Control panel housing
Control panel support bracket
Housing for screw plug
Screw cover plug
Bag with accessories
Electrical accessories:
Strip type fuse box, fuse and terminals
Blade type fuse box, fuse and terminals
Connector for compressor
Terminals
3.2 Hose kit
Description
Gas hoses (5/16", 13/32", 5/8")
Fittings (R134a only):
Clamps for gas hose connections (5/16", 13/32", 5/8")
Gas hose connections (5/16", 13/32", 5/8")
Fittings (R452A only):
Clamps for gas hose connections (5/16", 13/32", 5/8")
Gas hose connections (5/16", 13/32", 5/8")
6248543A Frigo Top 24 RT-D _ RT-DG ML
