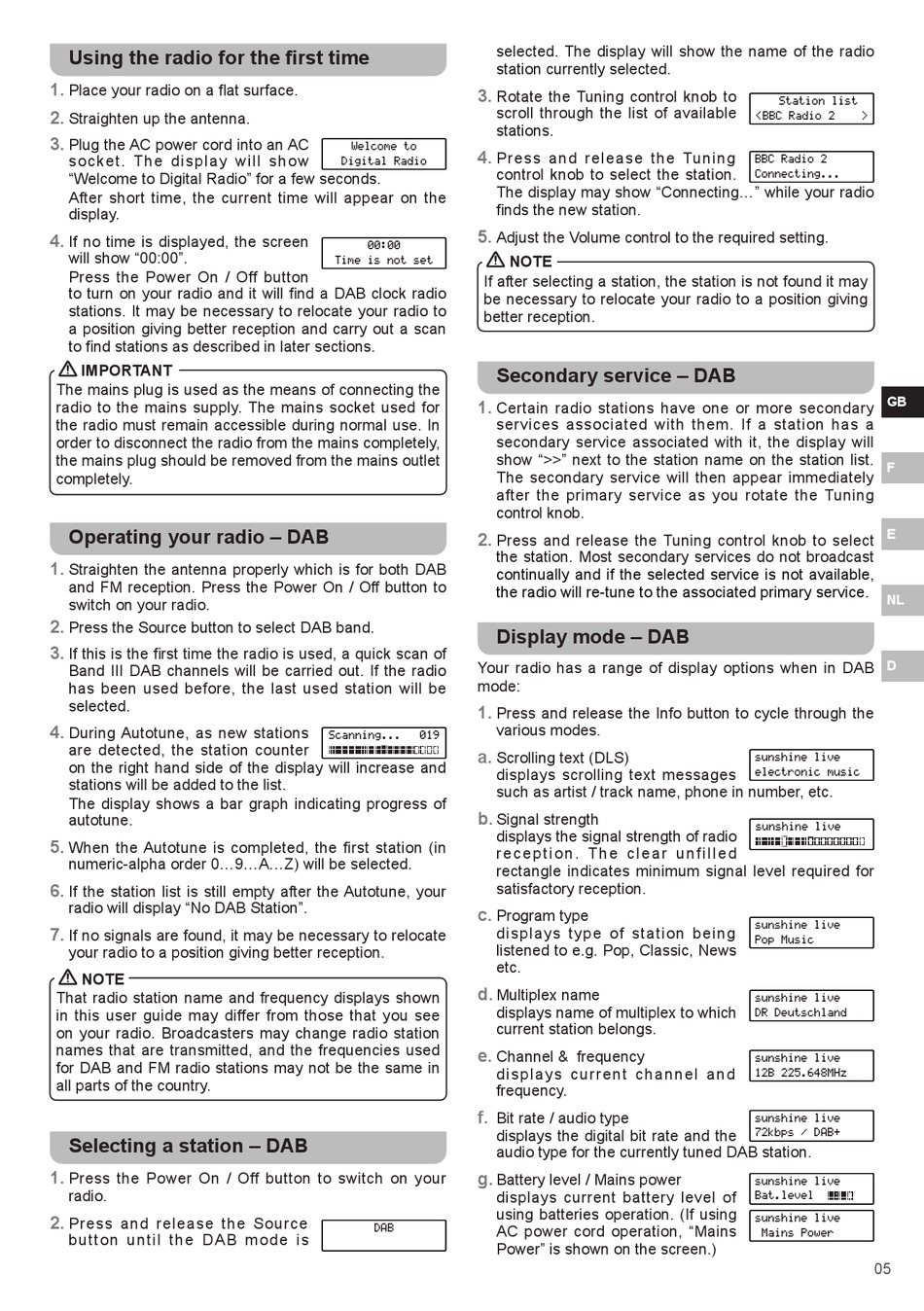

Using the radio for the first time
1.
Place your radio on a flat surface.
2.
Straighten up the antenna.
3.
Plug the AC power cord into an AC
socket. The display will show
"Welcome to Digital Radio" for a few seconds.
After short time, the current time will appear on the
display.
4.
If no time is displayed, the screen
will show "00:00".
Press the Power On / Off button
to turn on your radio and it will find a DAB clock radio
stations. It may be necessary to relocate your radio to
a position giving better reception and carry out a scan
to find stations as described in later sections.
IMPORTANT
The mains plug is used as the means of connecting the
radio to the mains supply. The mains socket used for
the radio must remain accessible during normal use. In
order to disconnect the radio from the mains completely,
the mains plug should be removed from the mains outlet
completely.
Operating your radio – DAB
1.
Straighten the antenna properly which is for both DAB
and FM reception. Press the Power On / Off button to
switch on your radio.
2.
Press the Source button to select DAB band.
3.
If this is the first time the radio is used, a quick scan of
Band III DAB channels will be carried out. If the radio
has been used before, the last used station will be
selected.
4.
During Autotune, as new stations
are detected, the station counter
on the right hand side of the display will increase and
stations will be added to the list.
The display shows a bar graph indicating progress of
autotune.
5.
When the Autotune is completed, the first station (in
numeric-alpha order 0...9...A...Z) will be selected.
6.
If the station list is still empty after the Autotune, your
radio will display "No DAB Station".
7.
If no signals are found, it may be necessary to relocate
your radio to a position giving better reception.
NOTE
That radio station name and frequency displays shown
in this user guide may differ from those that you see
on your radio. Broadcasters may change radio station
names that are transmitted, and the frequencies used
for DAB and FM radio stations may not be the same in
all parts of the country.
Selecting a station – DAB
1.
Press the Power On / Off button to switch on your
radio.
2.
Press and release the Source
button until the DAB mode is
selected. The display will show the name of the radio
station currently selected.
3.
Rotate the Tuning control knob to
scroll through the list of available
stations.
Welcome to
4.
Press and release the Tuning
Digital Radio
control knob to select the station.
The display may show "Connecting..." while your radio
finds the new station.
5.
Adjust the Volume control to the required setting.
00:00
Time is not set
If after selecting a station, the station is not found it may
be necessary to relocate your radio to a position giving
better reception.
Secondary service – DAB
1.
Certain radio stations have one or more secondary
services associated with them. If a station has a
secondary service associated with it, the display will
show ">>" next to the station name on the station list.
The secondary service will then appear immediately
after the primary service as you rotate the Tuning
control knob.
2.
Press and release the Tuning control knob to select
the station. Most secondary services do not broadcast
continually and if the selected service is not available,
the radio will re-tune to the associated primary service.
Display mode – DAB
Your radio has a range of display options when in DAB
mode:
1.
Press and release the Info button to cycle through the
various modes.
Scanning...
019
a.
Scrolling text (DLS)
displays scrolling text messages
such as artist / track name, phone in number, etc.
b.
Signal strength
displays the signal strength of radio
r e c e p t i o n . T h e c l e a r u n f i l l e d
rectangle indicates minimum signal level required for
satisfactory reception.
c.
Program type
displays type of station being
listened to e.g. Pop, Classic, News
etc.
d.
Multiplex name
displays name of multiplex to which
current station belongs.
e.
Channel & frequency
displays current channel and
frequency.
f.
Bit rate / audio type
displays the digital bit rate and the
audio type for the currently tuned DAB station.
g.
Battery level / Mains power
displays current battery level of
using batteries operation. (If using
DAB
AC power cord operation, "Mains
Power" is shown on the screen.)
NOTE
Station list
<BBC Radio 2
>
BBC Radio 2
Connecting...
GB
F
E
NL
D
sunshine live
electronic music
sunshine live
sunshine live
Pop Music
sunshine live
DR Deutschland
sunshine live
12B 225.648MHz
sunshine live
72kbps / DAB+
sunshine live
Bat.level
sunshine live
Mains Power
05
