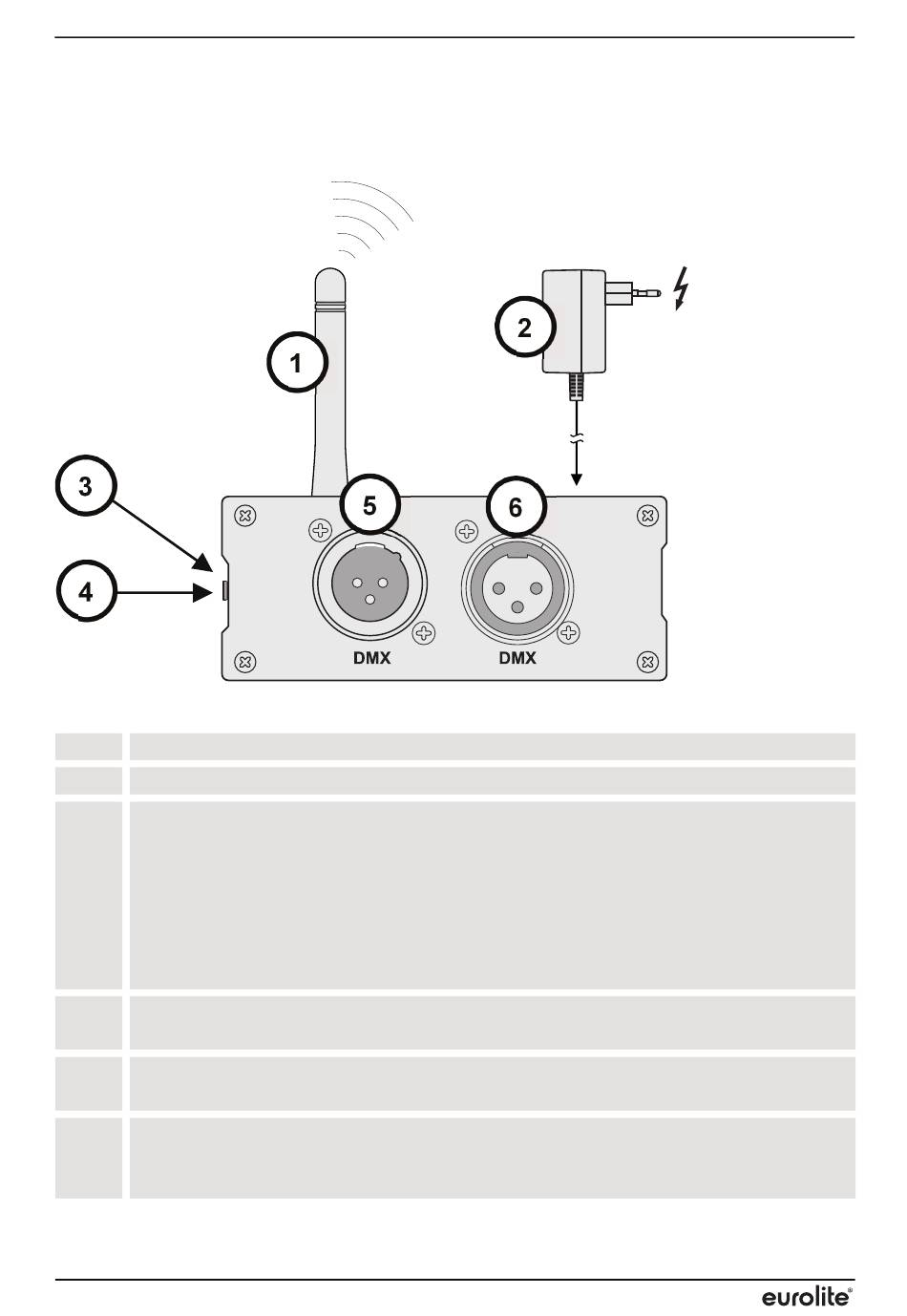

OPERATING ELEMENTS & CONNECTIONS
3
4
1 Antenna
2 Power input
3 Status indicator
• Lights permanently red at the transmitter when a DMX signal is
being transmitted.
• Flashes green at the receiver when a DMX signal is being
received.
• Shortly flashes red, green and blue after connecting the power
supply.
4 Button
To change the transmission channel and pair the devices.
5 DMX512 input
3-pin XLR mounting plug for connecting a DMX lighting controller.
6 DMX512 output
3-pin XLR mounting jack for connecting DMX-controlled fixtures
such as LED spot lights and moving heads.
