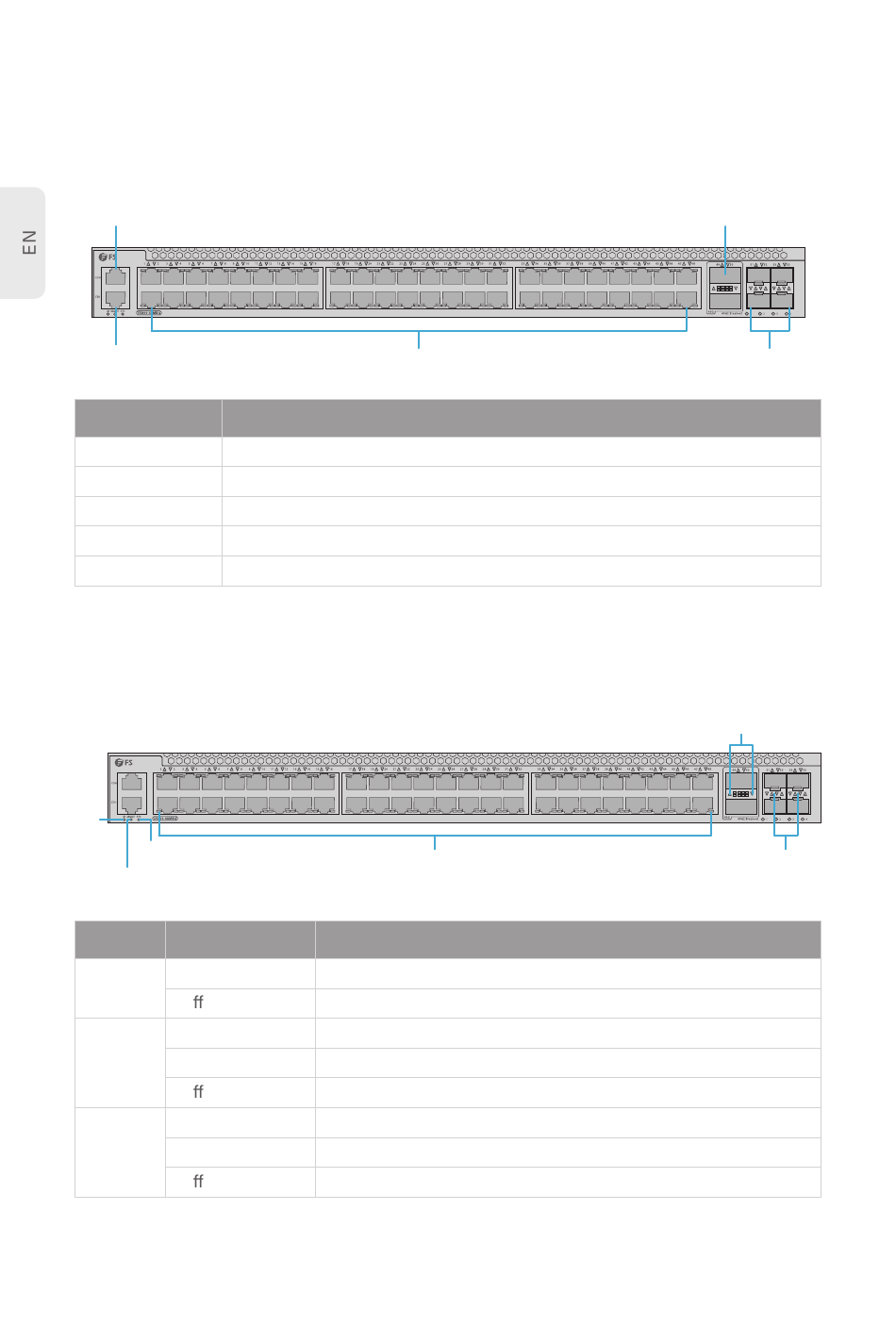

Hardware Overview

Front Panel Ports
CON
ETH
Ports Description
CON An RJ45 console port for serial management
ETH An Ethernet management port
RJ45
100/1000/2500BASE-T ports for Ethernet connection
QSFP+ QSFP+ ports for 40G connection
SFP28 SFP28 ports for 10G/25G connection
Front Panel LEDs
ID
SYS
MGMT
LEDs State
Blue
ID
O
Green
SYS
Amber
O
Green
ETH Blinking Green
O
2
RJ45
RJ45
Description
The ID indication function is enabled.
The ID indication function is disabled.
The system is running normally.
There is an alarm or error in the system.
No power or no system runs or the system runs abnormally.
The port is linked.
The port is receiving or transmitting packets.
The port is not linked.
QSFP+
SFP28
QSFP+
SFP28
