Installing the Transducer on a Trolling Motor
You must secure the transducer cable to the shaft or other secure location during installation. Damage to the
transducer cable wires or cable jacket can cause transducer failure.

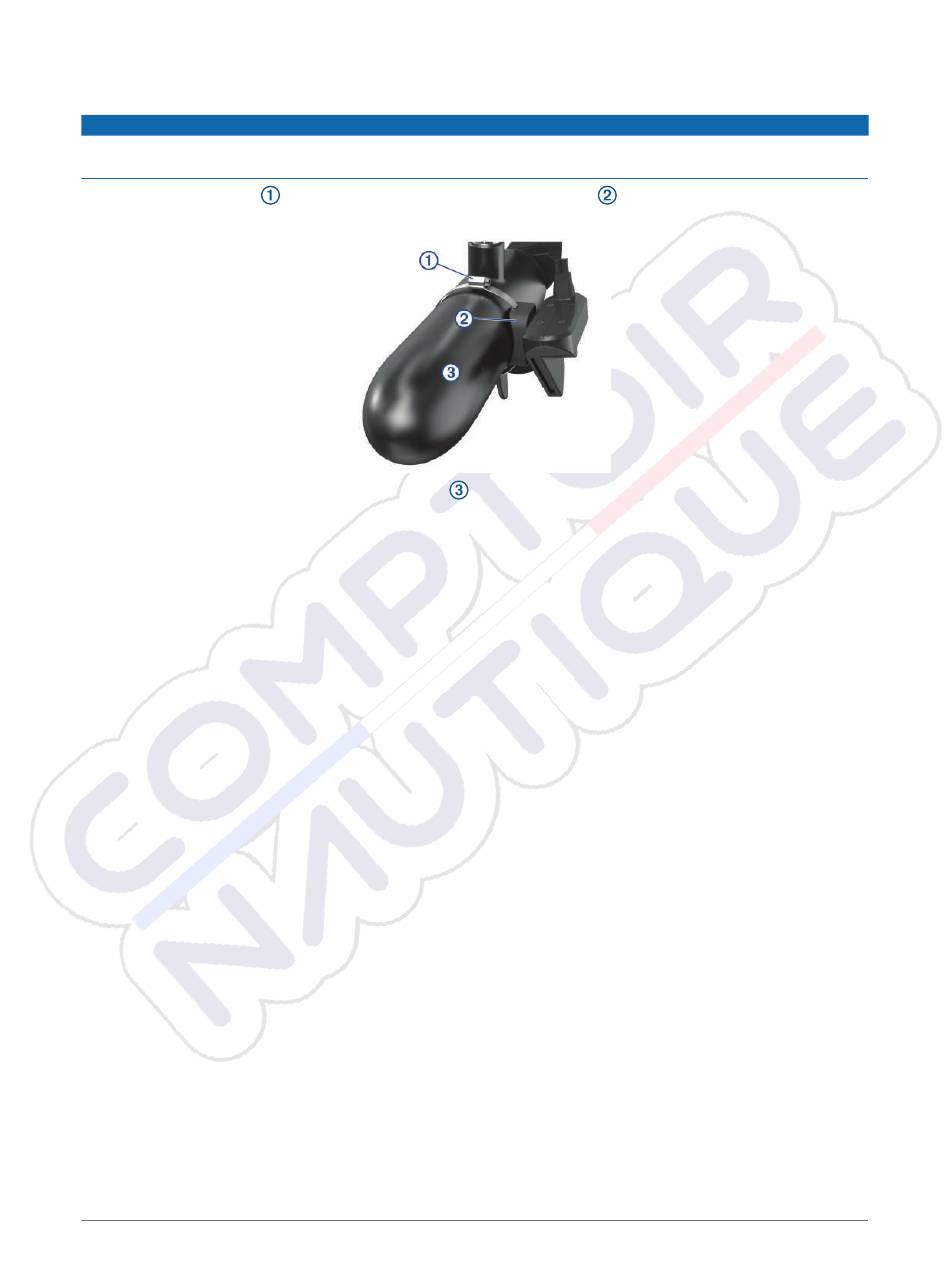

1 Insert the hose clamp
sides of the mount.
2 Secure the hose clamp around the trolling motor
NOTE: Do not rotate the transducer.
3 Secure the transducer cable to the motor shaft or other secure location.
4 Route the transducer cable to the installation location of the sonar module while taking these precautions.
• You should not route the cable close to electrical wires or other sources of electrical interference.
• You must route the cable so it is not pinched when the trolling motor is deployed or stowed.
NOTE: If necessary, for extra cable length you can connect an optional extension cable, available at
buy.garmin.com or from your Garmin dealer.
5 Position the transducer to your desired angle
4
NOTICE
through the slot on the trolling motor mount
(Trolling Motor Mount Orientation, page
until equal lengths extend on both
.
5).
