1.5.5 Reading Freeze Frames
●
The "Reading Freeze Frames" function displays the moment when
fault codes occur during the vehicle's operation, along with data
information from sensors related to the vehicle's operating environ-
ment, allowing the user to understand the vehicle's state and condi-
tions when a fault occurs.
1.5.6 Actuator Testing
●
The "Actuator Testing" function allows the user to test the vehicle's
related actuators, in order to quickly identify faulty components by
understanding their current working status.
Live Data Stream
Engine speed
Engine temperature
lgnition timing advance
(cylinder 1)
Intake air temperature
Manifold pressure (absolute)
F1-[Wave]
Engine temperature
Max 94.00 deg C
Min 74.00 deg C
Read Freeze Data
Engine speed
Engine temperature
Fault code
Intake air temperature
F1-[Ecs]
9
1/7
0.00
rpm
80
deg C
6.00
deg
25
deg C
101
kPa
92.00 deg C
1/4
0.00
rpm
80
deg C
P0122
25
deg C

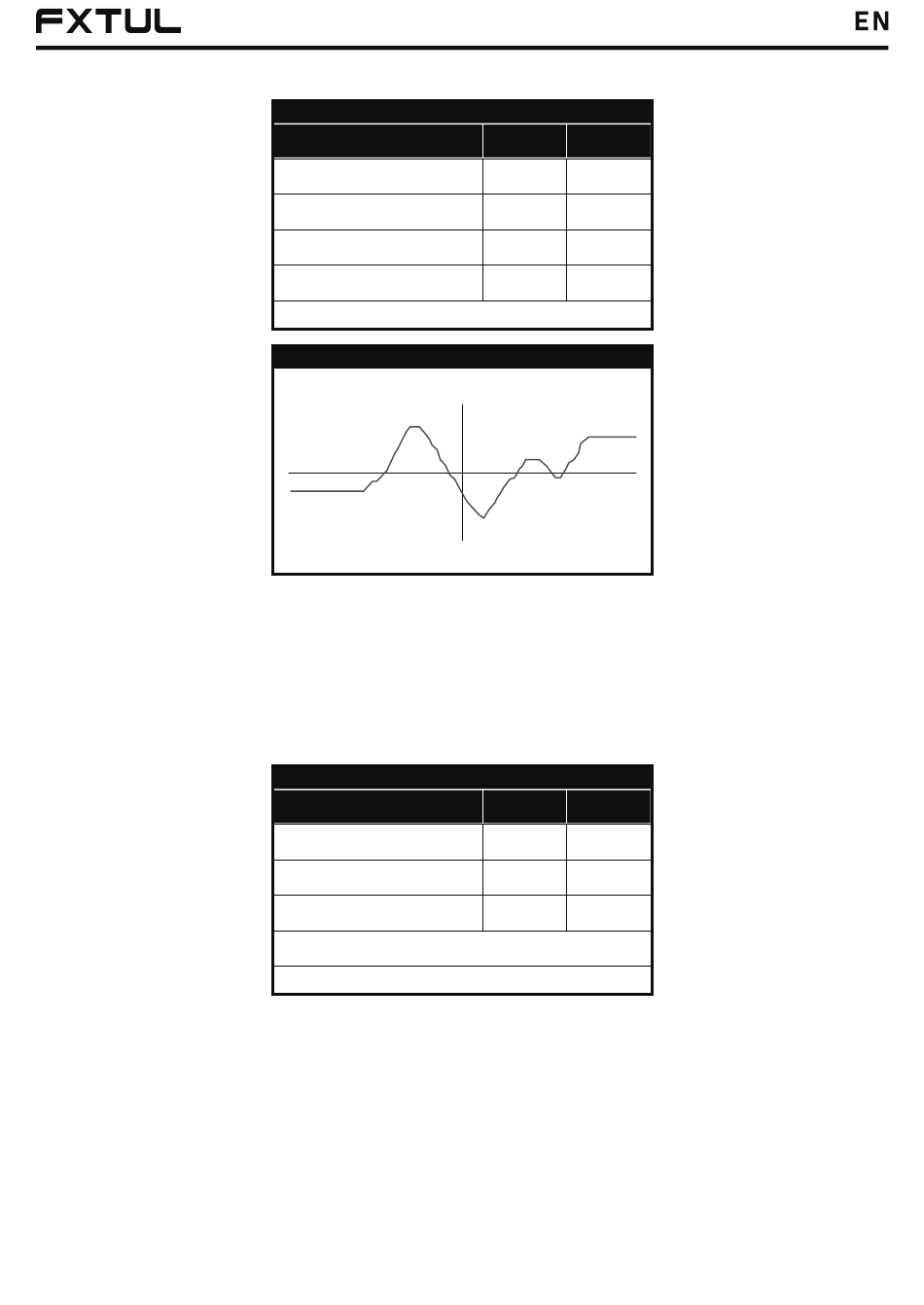

Figure 10 -
Data Stream
Display
Figure 11 –
Data Flow
Waveform
Figure 12 –
Freeze frame
information
