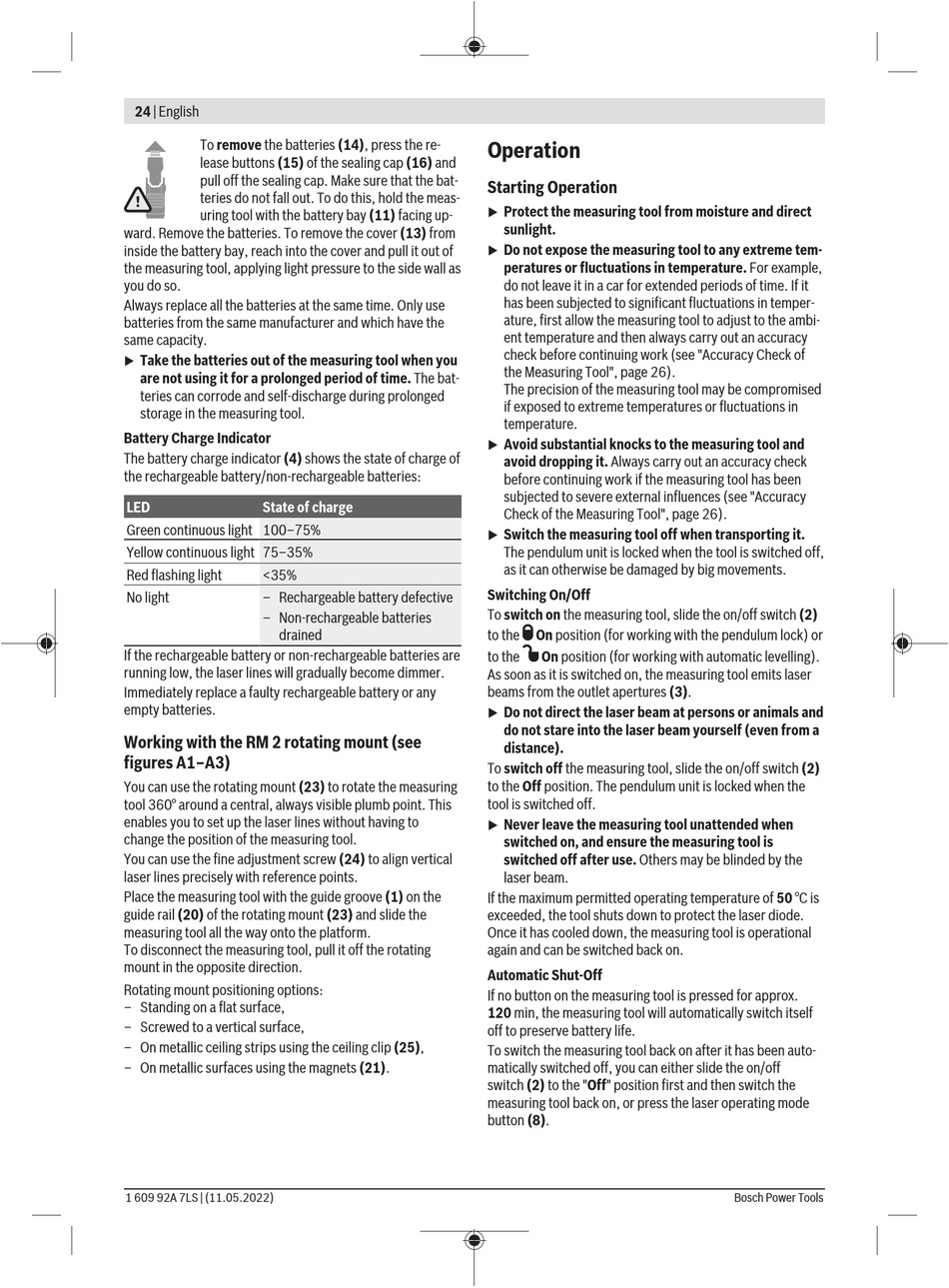

24 | English
To remove the batteries (14), press the re-
lease buttons (15) of the sealing cap (16) and
pull off the sealing cap. Make sure that the bat-
teries do not fall out. To do this, hold the meas-
uring tool with the battery bay (11) facing up-
ward. Remove the batteries. To remove the cover (13) from
inside the battery bay, reach into the cover and pull it out of
the measuring tool, applying light pressure to the side wall as
you do so.
Always replace all the batteries at the same time. Only use
batteries from the same manufacturer and which have the
same capacity.
Take the batteries out of the measuring tool when you
u
are not using it for a prolonged period of time. The bat-
teries can corrode and self-discharge during prolonged
storage in the measuring tool.
Battery Charge Indicator
The battery charge indicator (4) shows the state of charge of
the rechargeable battery/non-rechargeable batteries:
LED State of charge
Green continuous light 100–75%
Yellow continuous light 75–35%
Red flashing light <35%
No light – Rechargeable battery defective
– Non-rechargeable batteries
drained
If the rechargeable battery or non-rechargeable batteries are
running low, the laser lines will gradually become dimmer.
Immediately replace a faulty rechargeable battery or any
empty batteries.
Working with the RM 2 rotating mount (see
figures A1–A3)
You can use the rotating mount (23) to rotate the measuring
tool 360° around a central, always visible plumb point. This
enables you to set up the laser lines without having to
change the position of the measuring tool.
You can use the fine adjustment screw (24) to align vertical
laser lines precisely with reference points.
Place the measuring tool with the guide groove (1) on the
guide rail (20) of the rotating mount (23) and slide the
measuring tool all the way onto the platform.
To disconnect the measuring tool, pull it off the rotating
mount in the opposite direction.
Rotating mount positioning options:
– Standing on a flat surface,
– Screwed to a vertical surface,
– On metallic ceiling strips using the ceiling clip (25),
– On metallic surfaces using the magnets (21).
1 609 92A 7LS | (11.05.2022)
Operation
Starting Operation
Protect the measuring tool from moisture and direct
u
sunlight.
Do not expose the measuring tool to any extreme tem-
u
peratures or fluctuations in temperature. For example,
do not leave it in a car for extended periods of time. If it
has been subjected to significant fluctuations in temper-
ature, first allow the measuring tool to adjust to the ambi-
ent temperature and then always carry out an accuracy
check before continuing work (see "Accuracy Check of
the Measuring Tool", page 26).
The precision of the measuring tool may be compromised
if exposed to extreme temperatures or fluctuations in
temperature.
Avoid substantial knocks to the measuring tool and
u
avoid dropping it. Always carry out an accuracy check
before continuing work if the measuring tool has been
subjected to severe external influences (see "Accuracy
Check of the Measuring Tool", page 26).
Switch the measuring tool off when transporting it.
u
The pendulum unit is locked when the tool is switched off,
as it can otherwise be damaged by big movements.
Switching On/Off
To switch on the measuring tool, slide the on/off switch (2)
to the On position (for working with the pendulum lock) or
to the On position (for working with automatic levelling).
As soon as it is switched on, the measuring tool emits laser
beams from the outlet apertures (3).
Do not direct the laser beam at persons or animals and
u
do not stare into the laser beam yourself (even from a
distance).
To switch off the measuring tool, slide the on/off switch (2)
to the Off position. The pendulum unit is locked when the
tool is switched off.
Never leave the measuring tool unattended when
u
switched on, and ensure the measuring tool is
switched off after use. Others may be blinded by the
laser beam.
If the maximum permitted operating temperature of 50 °C is
exceeded, the tool shuts down to protect the laser diode.
Once it has cooled down, the measuring tool is operational
again and can be switched back on.
Automatic Shut-Off
If no button on the measuring tool is pressed for approx.
120 min, the measuring tool will automatically switch itself
off to preserve battery life.
To switch the measuring tool back on after it has been auto-
matically switched off, you can either slide the on/off
switch (2) to the "Off" position first and then switch the
measuring tool back on, or press the laser operating mode
button (8).
