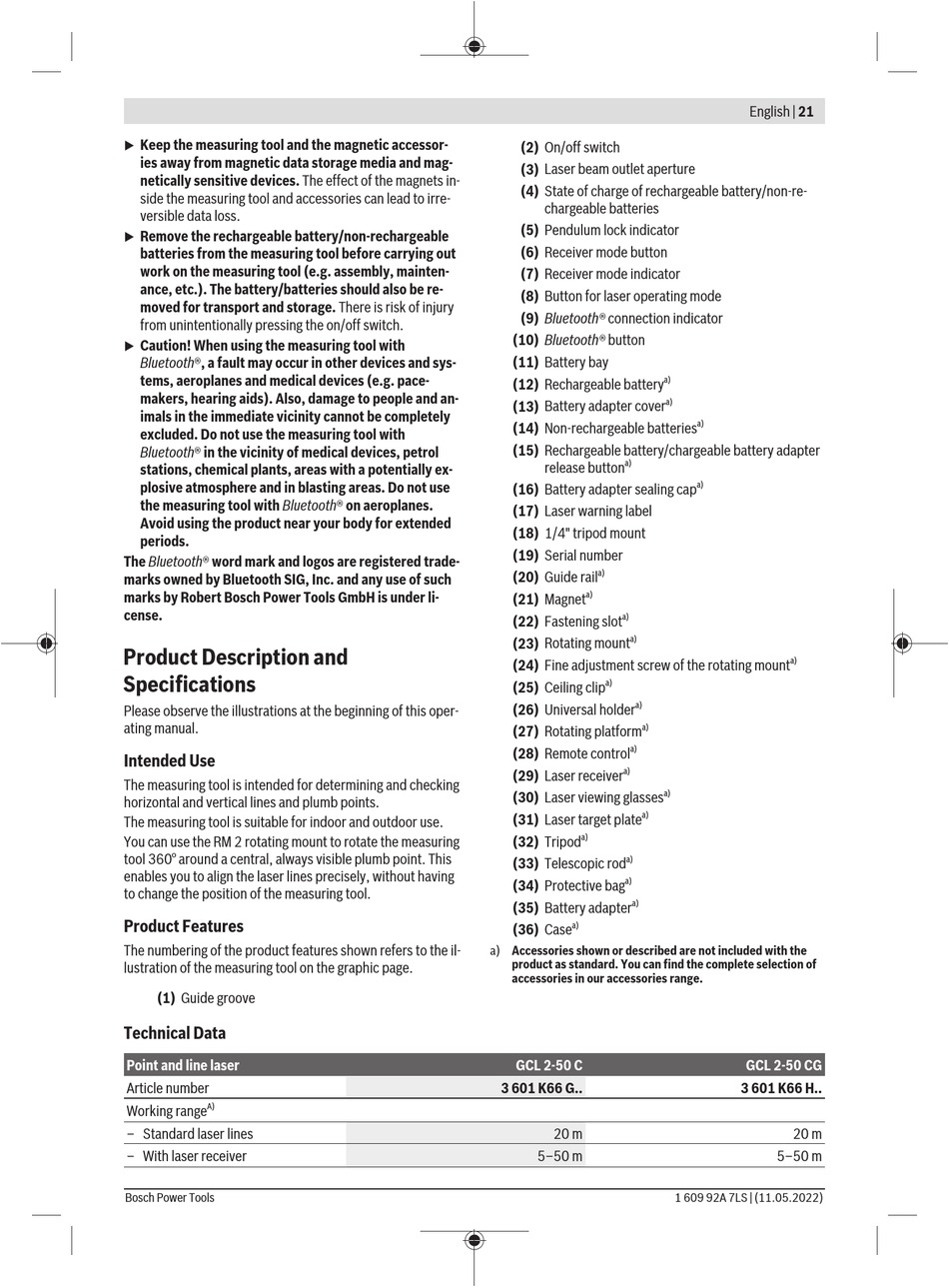

Keep the measuring tool and the magnetic accessor-
u
ies away from magnetic data storage media and mag-
netically sensitive devices. The effect of the magnets in-
side the measuring tool and accessories can lead to irre-
versible data loss.
Remove the rechargeable battery/non-rechargeable
u
batteries from the measuring tool before carrying out
work on the measuring tool (e.g. assembly, mainten-
ance, etc.). The battery/batteries should also be re-
moved for transport and storage. There is risk of injury
from unintentionally pressing the on/off switch.
Caution! When using the measuring tool with
u
Bluetooth®, a fault may occur in other devices and sys-
tems, aeroplanes and medical devices (e.g. pace-
makers, hearing aids). Also, damage to people and an-
imals in the immediate vicinity cannot be completely
excluded. Do not use the measuring tool with
Bluetooth® in the vicinity of medical devices, petrol
stations, chemical plants, areas with a potentially ex-
plosive atmosphere and in blasting areas. Do not use
the measuring tool with Bluetooth® on aeroplanes.
Avoid using the product near your body for extended
periods.
The Bluetooth® word mark and logos are registered trade-
marks owned by Bluetooth SIG, Inc. and any use of such
marks by Robert Bosch Power Tools GmbH is under li-
cense.
Product Description and
Specifications
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended Use
The measuring tool is intended for determining and checking
horizontal and vertical lines and plumb points.
The measuring tool is suitable for indoor and outdoor use.
You can use the RM 2 rotating mount to rotate the measuring
tool 360° around a central, always visible plumb point. This
enables you to align the laser lines precisely, without having
to change the position of the measuring tool.
Product Features
The numbering of the product features shown refers to the il-
lustration of the measuring tool on the graphic page.
(1) Guide groove
Technical Data
Point and line laser
Article number
A)
Working range
– Standard laser lines
– With laser receiver
Bosch Power Tools
(2) On/off switch
(3) Laser beam outlet aperture
(4) State of charge of rechargeable battery/non-re-
chargeable batteries
(5) Pendulum lock indicator
(6) Receiver mode button
(7) Receiver mode indicator
(8) Button for laser operating mode
(9) Bluetooth® connection indicator
(10) Bluetooth® button
(11) Battery bay
a)
(12) Rechargeable battery
a)
(13) Battery adapter cover
(14) Non-rechargeable batteries
(15) Rechargeable battery/chargeable battery adapter
a)
release button
(16) Battery adapter sealing cap
(17) Laser warning label
(18) 1/4" tripod mount
(19) Serial number
a)
(20) Guide rail
a)
(21) Magnet
a)
(22) Fastening slot
a)
(23) Rotating mount
(24) Fine adjustment screw of the rotating mount
a)
(25) Ceiling clip
a)
(26) Universal holder
a)
(27) Rotating platform
a)
(28) Remote control
a)
(29) Laser receiver
a)
(30) Laser viewing glasses
a)
(31) Laser target plate
a)
(32) Tripod
a)
(33) Telescopic rod
a)
(34) Protective bag
a)
(35) Battery adapter
a)
(36) Case
a) Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.
GCL 2-50 C
3 601 K66 G..
20 m
5–50 m
English | 21
a)
a)
a)
GCL 2-50 CG
3 601 K66 H..
20 m
5–50 m
