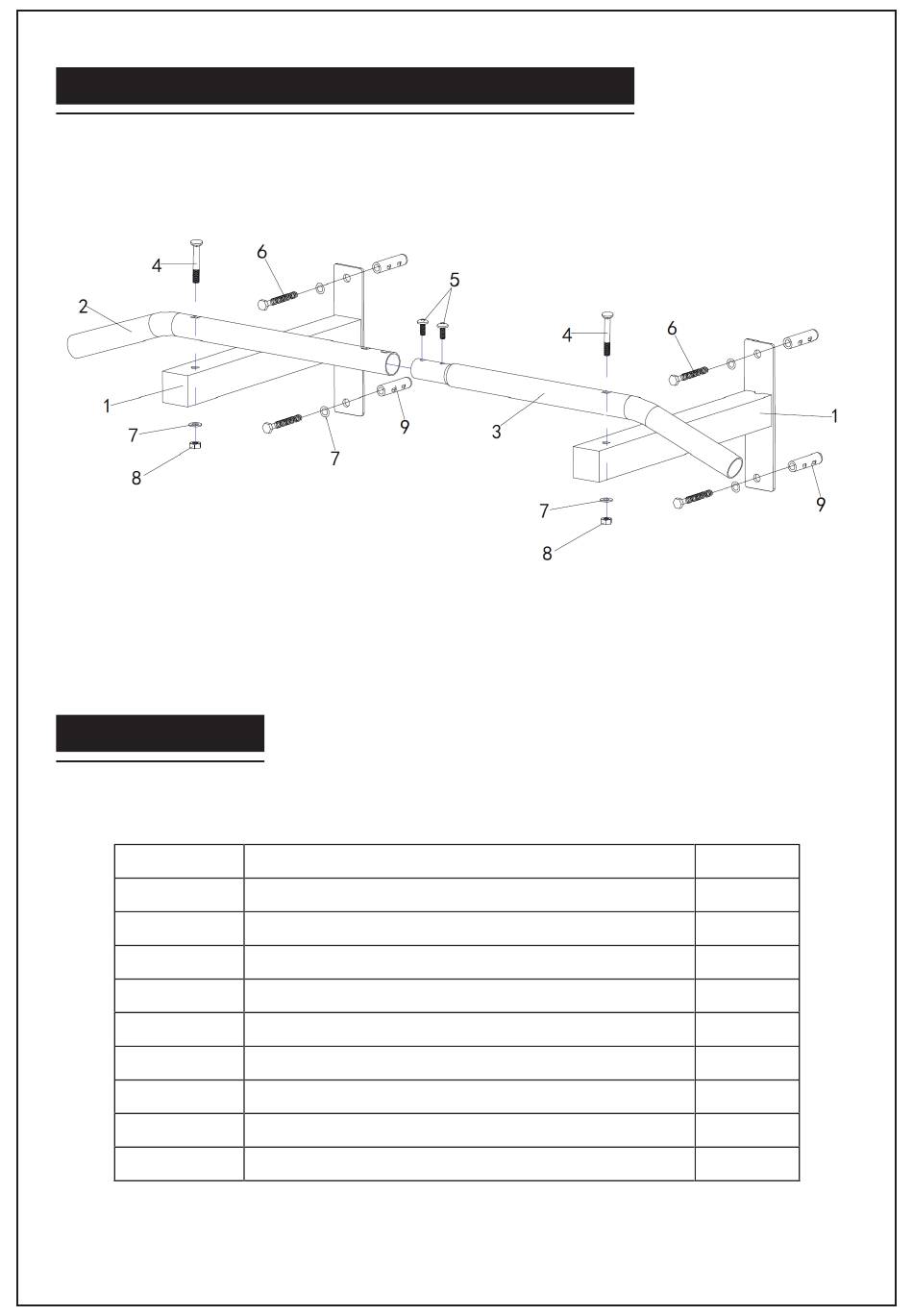

EXPLODED-VIEW ASSEMBLY DRAWING

PARTS LIST

NO.
1.
2.
3.
4.
5.
6.
7.
8.
9.
DESCRIPTION
Main Frame
Handle Bar Left
Handle Bar Right
M8x85 Carriage Bolt
M8x15 Bolt
M8x70 Bolt
M8 Washer
M8 Nylon Nut
Nylon Pipe
QTY
2
1
1
2
2
4
6
2
4
