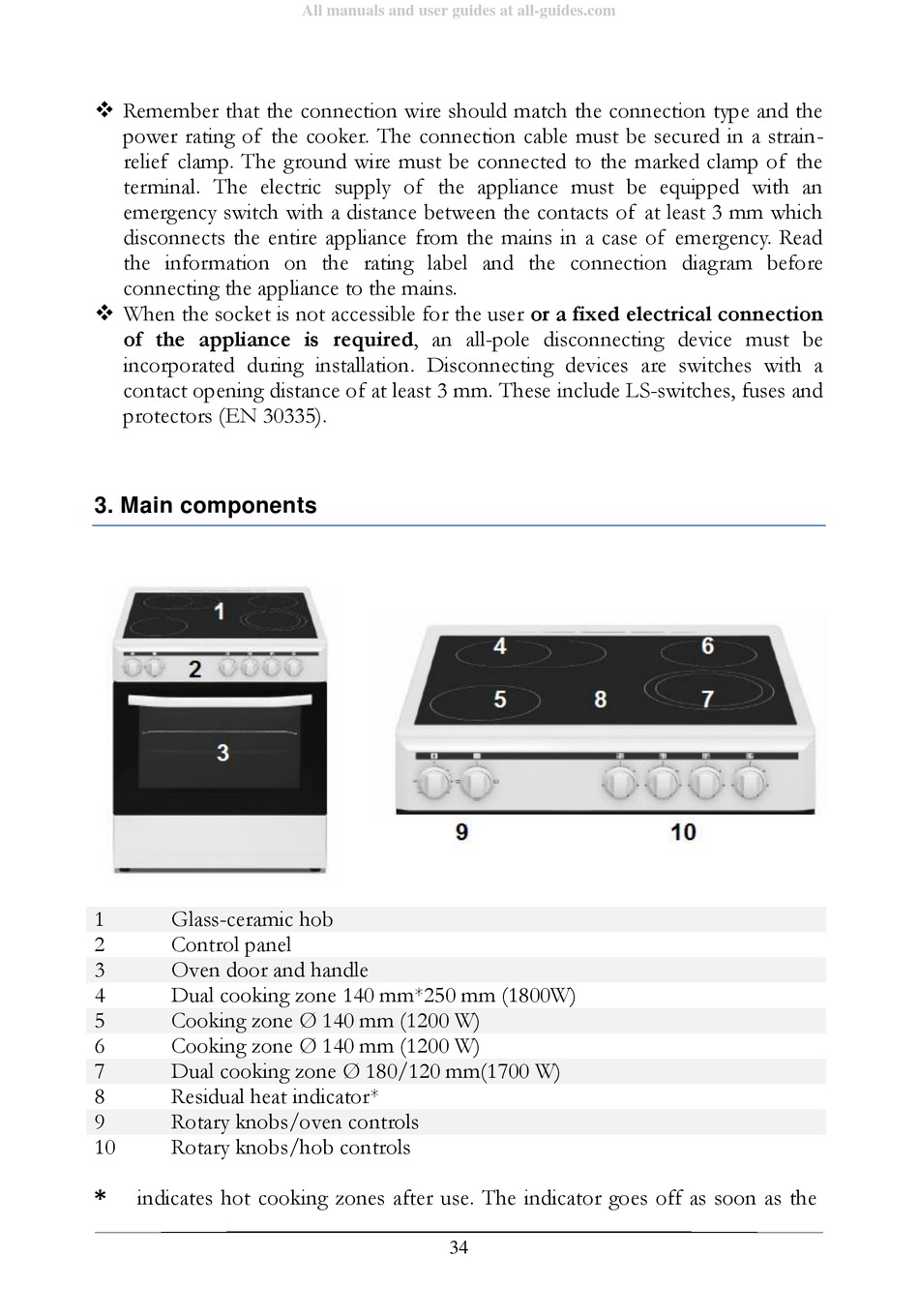

Remember that the connection wire should match the connection type and the
power rating of the cooker. The connection cable must be secured in a strain-
relief clamp. The ground wire must be connected to the marked clamp of the
terminal. The electric supply of the appliance must be equipped with an
emergency switch with a distance between the contacts of at least 3 mm which
disconnects the entire appliance from the mains in a case of emergency. Read
the information on the rating label and the connection diagram before
connecting the appliance to the mains.
When the socket is not accessible for the user or a fixed electrical connection
of the appliance is required, an all-pole disconnecting device must be
incorporated during installation. Disconnecting devices are switches with a
contact opening distance of at least 3 mm. These include LS-switches, fuses and
protectors (EN 30335).
3. Main components
1
Glass-ceramic hob
2
Control panel
3
Oven door and handle
4
Dual cooking zone 140 mm*250 mm (1800W)
5
Cooking zone Ø 140 mm (1200 W)
6
Cooking zone Ø 140 mm (1200 W)
7
Dual cooking zone Ø 180/120 mm(1700 W)
8
Residual heat indicator*
9
Rotary knobs/oven controls
10
Rotary knobs/hob controls
*
indicates hot cooking zones after use. The indicator goes off as soon as the
