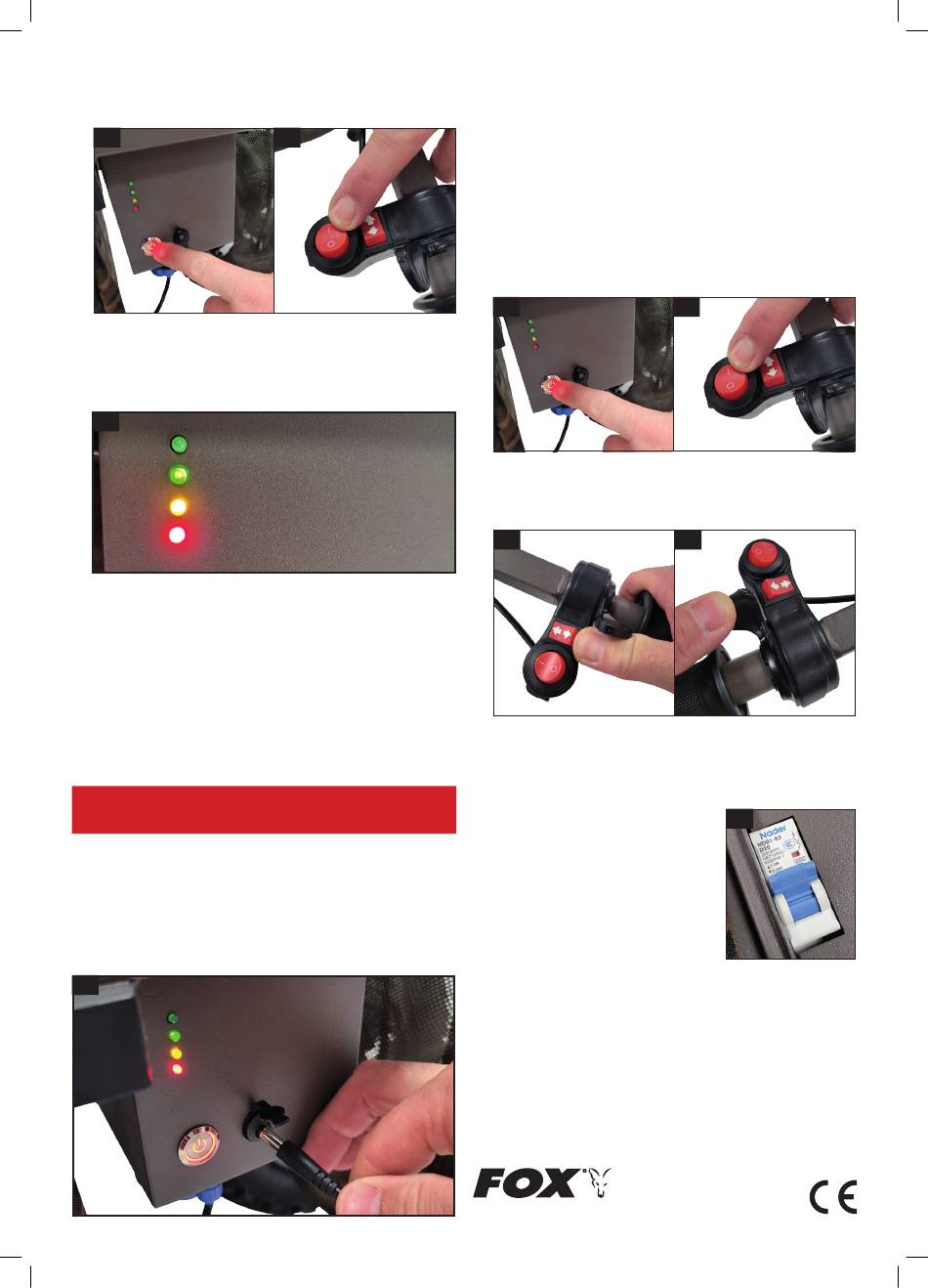

12. Turn the power box switch on (12A) and the power button on the
thumb controller (12B). You are now ready to go.
12A
13. The power box has 4 LED's to show the level of charge. When only
the red LED is illuminated the batteries need recharging.
13
Charging instructions
Your Transporter Power Barrow is supplied with 2 x 9Ah Sealed Lead
Acid batteries and a charger.
There is sufficient room in the power boxes to upgrade to larger
batteries (CTR020 will accommodate 2 x 12Ah batteries and CTR021
has sufficient room for 4 x 9Ah batteries).
Lithium batteries MUST NOT be used with the charger supplied!
ONLY use with sealed rechargeable lead acid batteries!
Transporter Power barrows have been designed to allow you to charge
the supplied batteries without having to remove them from the power
box. Simply ensure all the power switches are in the "off" position and
insert the charge plug into the charging port on the side of the power
box (14), then plug into the mains and switch the power on.
14
12B
The LED on the charger will illuminate GREEN when plugged into a
wall socket.
When the charger is connected to the power box and charging the
batteries the LED on the charger will illuminate RED.
Once the batteries are fully charged the LED on the charger will
illuminate GREEN.
Operating Instructions
1. Turn on both the power box button and the thumb controller button.
1A
2. The thumb controller button with arrows Indicates the direction
of travel.
2
3. Ensure the direction arrow is correctly chosen and gentle squeeze
the thumb lever, applying more or less pressure to adjust the
travelling speed.
4. There is a trip switch for safety.
If no power, please check this switch.
Maintenance
For any maintenance issues please
contact customer services on the
following email address:
eurocustomerservices@ratheroutdoors.com
DECLARATION OF CONFORMITY
Hereby, Fox International Group Ltd declares that the Transporter
Barrow (CTR020) and Transporter Barrow + (CTR021) is in compliance
with the Machinery Directive: 2006/42/EC & the Electromagnetic
compatibility Directive: 2014/30/EU
The Declaration of Conformity can be found at the following address:
https://www.foxint.com/home/support/declarations-of-conformity/
www.foxint.com
eurocustomerservices@ratheroutdoors.com
Fox International Group Ltd., 1 Myrtle Road, Warley, Brentwood, Essex CM14 5EG. UK
1B
3
4
