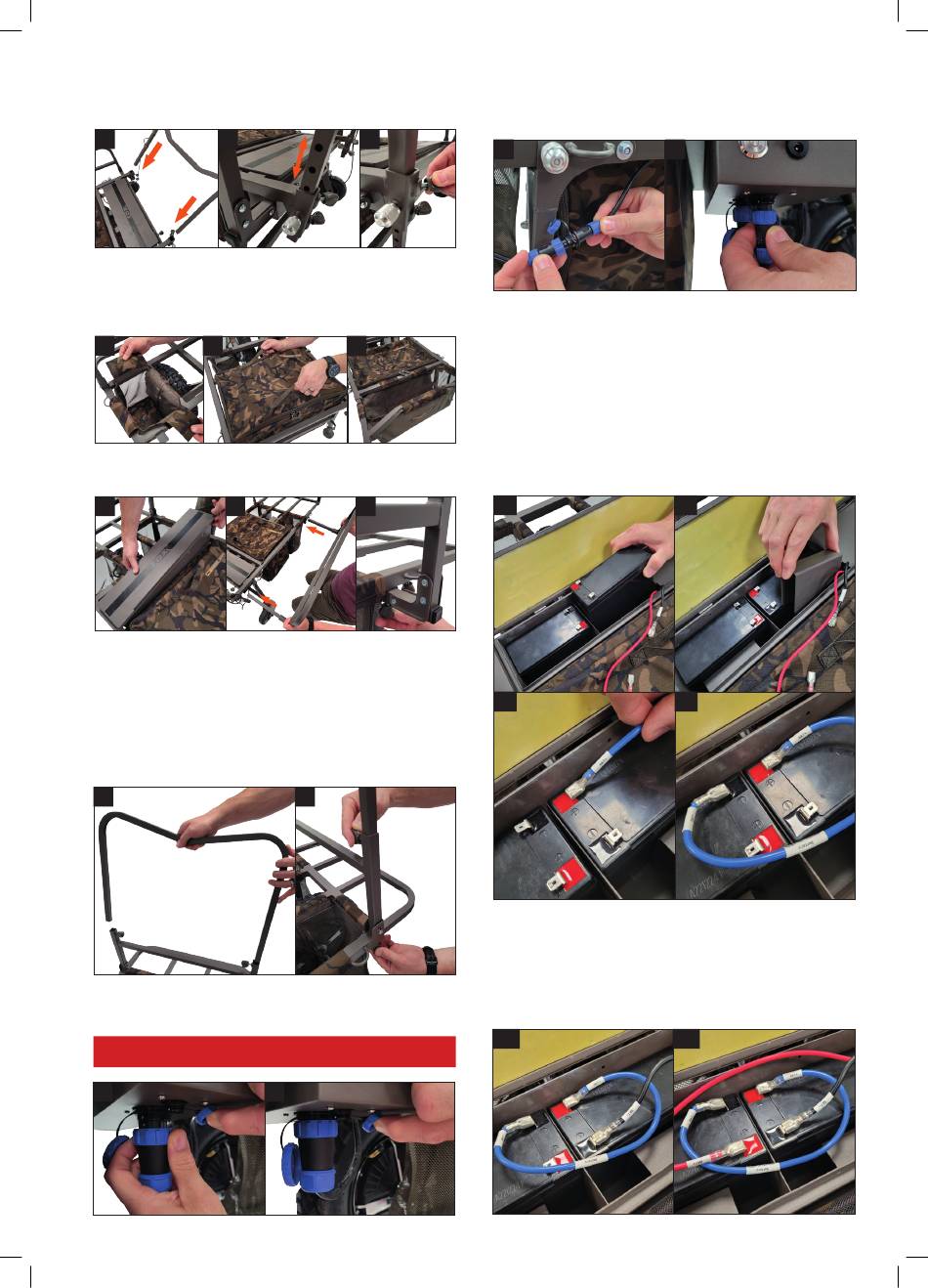

Power+ version - Adjust the handles to a comfortable height
(2E & 2F) and secure with the double thumb screws (2G).
2E
2F
3. Attach the mesh pockets either side of the wheel (3A) and the main
barrow bag to the main frame (3B). Power version – attach the
mesh bag to the handle frame (3C).
3A
3B
4. Place the Power box into position.
4
5A
5. Power+ version only – attach the side rails (5A) and secure
with thumb screws (5B).
6. Add the front support frame and insert thumb screws, securing tightly.
7. Finally add the remaining thumb screws to the front frame extension
and secure tightly.
6
8. Attach the wheel cable to the power box ensuring the silver location
dots are lined up (8A/8B).
NOTE: Please don't over tighten the locking collars
8A
2G
3C
5B
7
8B
9. Connect the handle frame cable to the main frame cable (9A) and
connect this into the power box (9B), ensuring the silver location
dots are lined up at each stage.
9A
10. Ensure all switches are turned to the "off" position. Place the 2
batteries into the power box (10A) with the terminals facing each
other. Drop the spacers into place (10B) and connect the batteries
together using the blue battery connection cable as indicated. One
end (BAT+) attaches to the positive (+) terminal of one battery (10C)
and the other end (BAT-) to the negative (-) terminal of the other
battery (10D).
10A
10C
11. Connect the Black Negative (BAT-) (11A) cable to the remaining
negative battery terminal and connect the red Positive (BAT+) cable
to the remaining positive battery terminal (11B).
11A
9B
10B
10D
11B
