RF Rx SW868/SW915/SW917/SW922-4S
Montage- und Anschlussanleitung / Funk-Empfänger
Mounting and wiring instructions / Wireless receiver
English
Teaching in of transmitters
The output of the receiver can be switched by a maximum of 40 trans-
mitters. To do this, teach in each transmitter once in the receiver.
- Press push-button LRN approx. 1 s
→ LED MD flashes slowly (2 Hz).
- Channel selection: press push-button SEL.
- Actuate transmitter to be taught in
→ the LED of the corresponding channel is off for a short time.
- To leave teach-in mode: press push-button LRN for approx. 1 s
→ LED MD lights up.
Deleting one transmitter
- Press push-button LRN for approx. 1 s
→ LED MD flashes slowly (2 Hz)
→ Teach-in mode active.
- Release push-button LRN
→ LED 1 lights up.
- Press push-button LRN for 5 s
→ LED MD flashes fast (5 Hz)
→ Delete mode active
- Channel selection: press push-button SEL.
- Actuate transmitter to be deleted
→ the LED of the corresponding channel flashes for a short time.
- To leave delete mode: press push-button LRN for approx. 1 s.
Inverse teaching in of one transmitter
- Procedure like teach-in but transmitter must be actuated before pro-
cedure is started by pressing LRN.

Deleting all transmitters

- Press push-button LRN for approx. 1 s drücken
→ LED MD flashes slowly (2 Hz)
→ Teach-in mode active
- Release push-button LRN
→ LED 1 lights up.
- Press push-button LRN for 5 s
→ LED MD flashes fast (5 Hz)
→ Delete mode active
- LED 1 lights up
→ release push-button LRN.
- Repress push-button LRN for 5 s until LED MD is off.
- LED MD lights up and LED 1 flashes fast
→ release push-button LRN.
- Operation mode was set back to standard.
SMA antenna socket
Maintenance and cleaning
.steute recommends routine maintenance as follows:
1. Remove all dirt particles: Clean enclosure on the outside only.
Clean device in accordance with IP protection class. Clean with
a soft cloth and water or a mild detergent. Do not clean using com-
pressed air.
2. Replace damaged parts.
3. Test the function.
Disposal
- Observe national, local and legal regulations concerning disposal.
- Recycle each material separately.
8 / 16

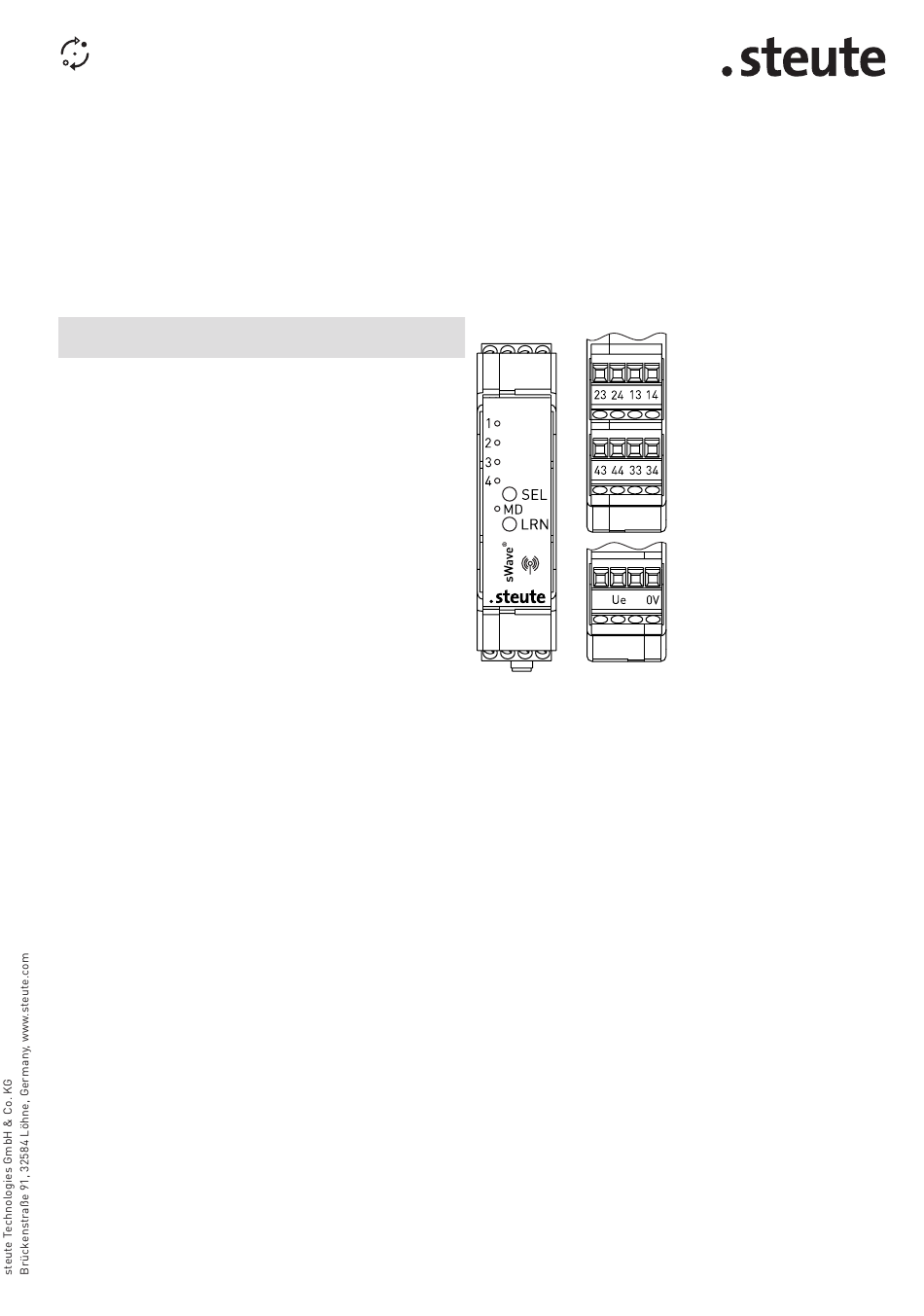

13-14 K1 Relay
23-24 K2 Relay
33-34 K3 Relay
43-44 K4 Relay
1 ... 4 Status display of the
outputs
SEL SELECT button
MD Mode LED
LRN Teach-in button
U , 0V Voltage supply
