Flow vision FS10-EX Montage- Und Einstellanleitung Seite 9

Vorschau ausblenden Andere Handbücher für FS10-EX:

Werbung

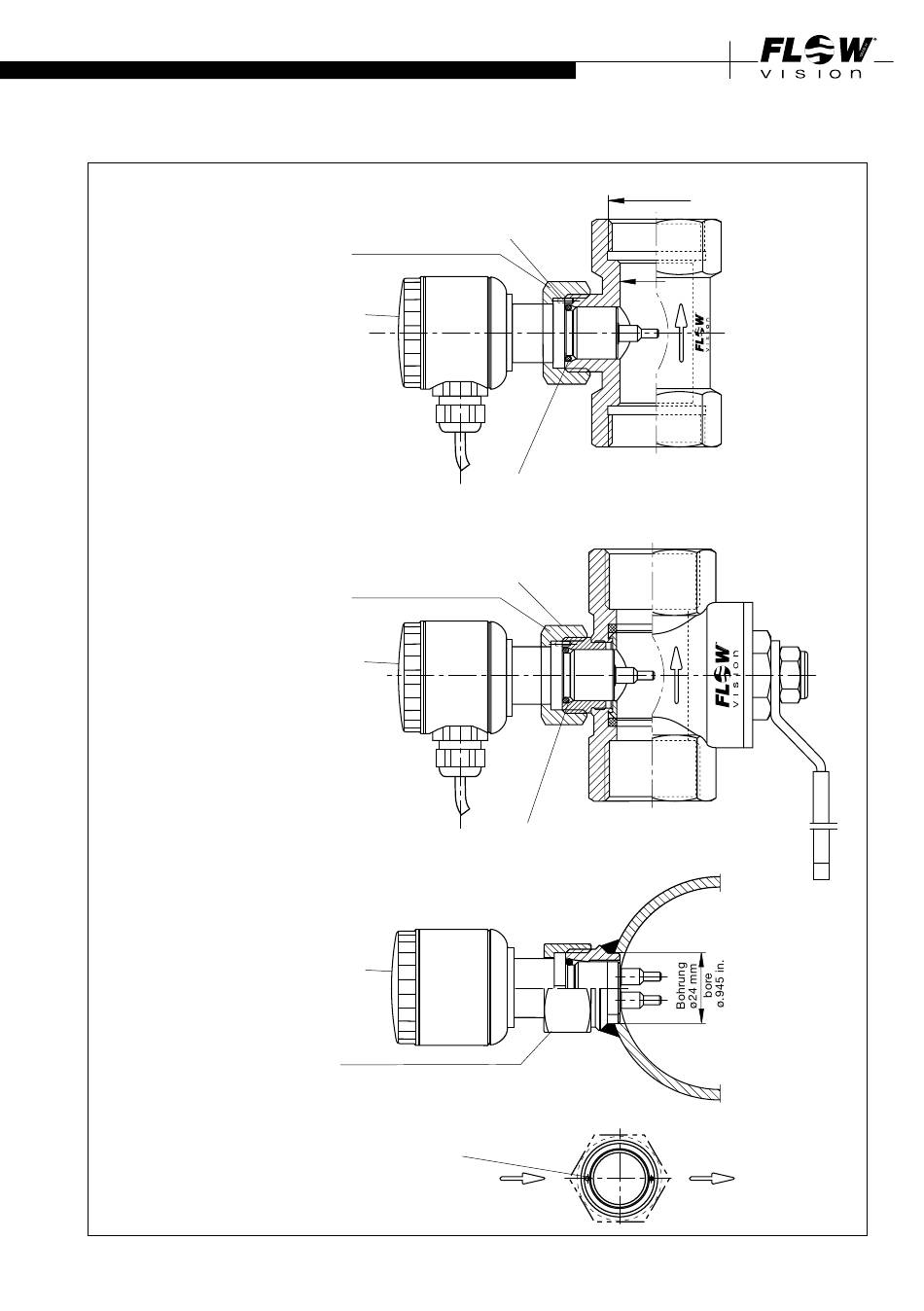

Sensoradapter TP-... / Sensor adapter TP-...:
Exakte Positionierung des Sensors ist sichergestellt (Arretierungsstift/-Nut)
Correct position of the sensor is ensured (retention pin/locking slot)
Überwurfmutter G3/4"
cap nut G3/4"
Strömungswächter FS10
Flow monitor FS10
Kugelhahn BV-... / Ball valve BV-...:
Exakte Positionierung des Sensors ist sichergestellt (Arretierungsstift/-Nut)
Correct position of the sensor is ensured (retention pin/locking slot)
Überwurfmutter G3/4"
cap nut G3/4"
Strömungswächter FS10
Flow monitor FS10
Anschweißset 05
Anschluss nach DIN ISO 6149
Welding set 05
to DIN ISO 6149
Strömungswächter FS10
Flow monitor FS10
Überwurfmutter G3/4"
cap nut G3/4"
Dichtung: O-Ring 15,3 x 2,2 mm in Anlehnung an DIN ISO 6149
sealing: O-ring 15.3 x 2.2 mm/.602 x .0866 in. following DIN ISO 6149
Exakte Positionierung des Sensors ist sichergestellt
(Arretierungsstift/-Nut)
Correct position of the sensor is ensured
(retention pin/locking slot)
FS10-EX | Flow Monitor
MONTIEREN | INSTALLATION
Dichtung: O-Ring 15,3 x 2,2 mm in Anlehnung an DIN ISO 6149
sealing: O-ring 15.3 x 2.2 mm/.602 x .0866 in. following DIN ISO 6149
Dichtung: O-Ring 15,3 x 2,2 mm in Anlehnung an DIN ISO 6149
sealing: O-ring 15.3 x 2.2 mm/.602 x .0866 in. following DIN ISO 6149
G
ød
Strömungsrichtung
flow direction
Fig. 5
9
