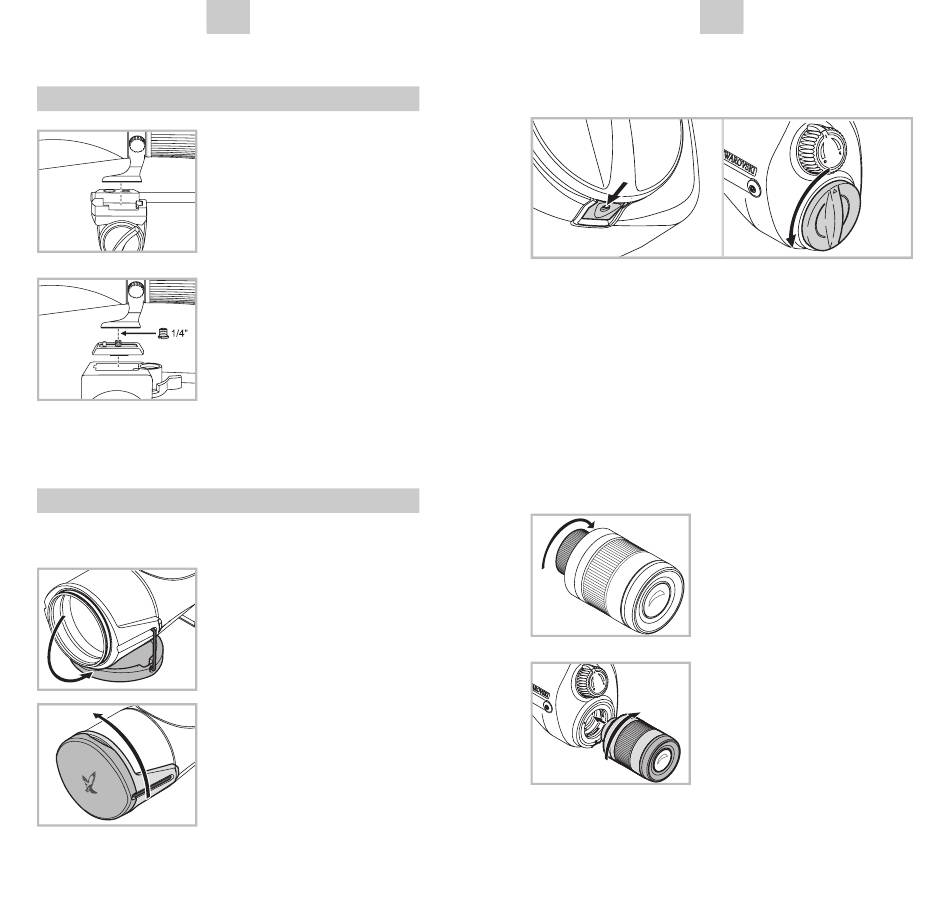

mounting the spotting scope on the tripod
SwarovSkI optIk tripod
The tripod base fits directly
into the SWAROVSKI OPTIK
tripod head.
other tripods
The tripod base has a con-
necting thread of 3/8˝ UNC.
The inserted bush reduces
the connecting thread to
1/4˝. The observation spot-
ting scope thus fits on any standard tripod.
operation
open/remove the protective lens cap
• The objective lens is pro-
tected from dirt by a cap.
• To open, pull the cover
slightly forward and flip the
cap onto the underside of
the spotting scope.
• To remove, unscrew the
protective lens cap to the
left (counterclockwise).
DE EN
All manuals and user guides at all-guides.com
20
remove bayonet mount protective cap
To remove the cap, slide the eyepiece lock on the
base body forward (in the direction of the lens)
and twist the bayonet mount protective cap to the
left (counterclockwise).
attachment and detachment of the eyepiece
• Remove the protective
cap for the bayonet from
the eyepiece by screwing it
to the left (anti-clockwise).
• Align the marking on the
eyepiece with the marking
on the bayonet fitting.
• Insert the eyepiece and
turn it to the right (clock-
wise)
mechanism of the body
clicks into the eyepiece.
EN DE
until the locking
