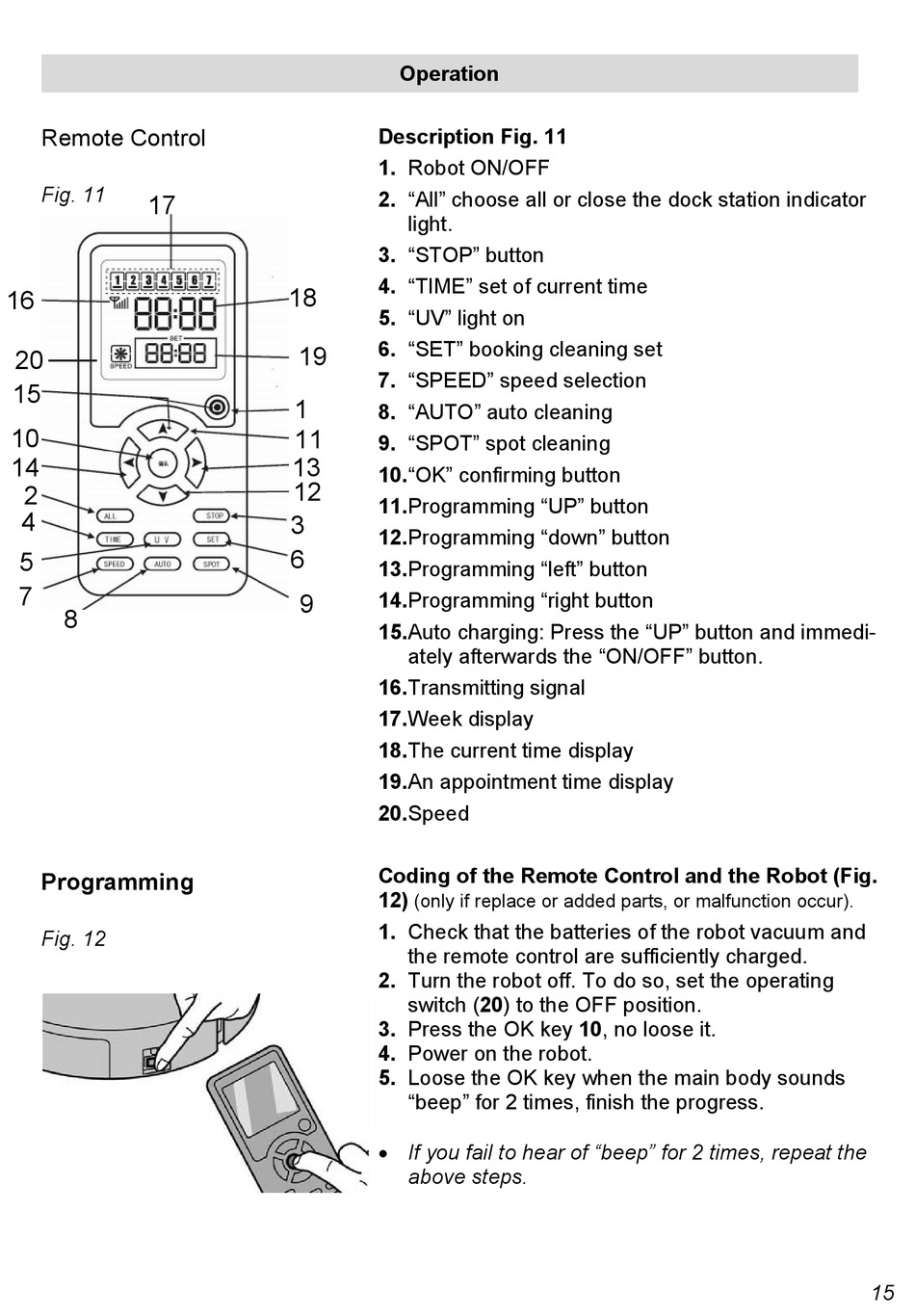

Remote Control; Programming - Fakir Robert Bedienungsanleitung

Remote Control

Fig. 11
17
16
20
15
10
14
2
4
5
7
8

Programming

Fig. 12
Operation
Description Fig. 11
1. Robot ON/OFF
2. "All" choose all or close the dock station indicator
light.
3. "STOP" button
4. "TIME" set of current time
18
5. "UV" light on
6. "SET" booking cleaning set
19
7. "SPEED" speed selection
1
8. "AUTO" auto cleaning
11
9. "SPOT" spot cleaning
13
10. "OK" confirming button
12
11. Programming "UP" button
3
12. Programming "down" button
6
13. Programming "left" button
14. Programming "right button
9
15. Auto charging: Press the "UP" button and immedi-
ately afterwards the "ON/OFF" button.
16. Transmitting signal
17. Week display
18. The current time display
19. An appointment time display
20. Speed
Coding of the Remote Control and the Robot (Fig.
12)
(only if replace or added parts, or malfunction occur).
1. Check that the batteries of the robot vacuum and
the remote control are sufficiently charged.
2. Turn the robot off. To do so, set the operating
switch (20) to the OFF position.
3. Press the OK key 10, no loose it.
4. Power on the robot.
5. Loose the OK key when the main body sounds
"beep" for 2 times, finish the progress.
 If you fail to hear of "beep" for 2 times, repeat the
above steps.
15
