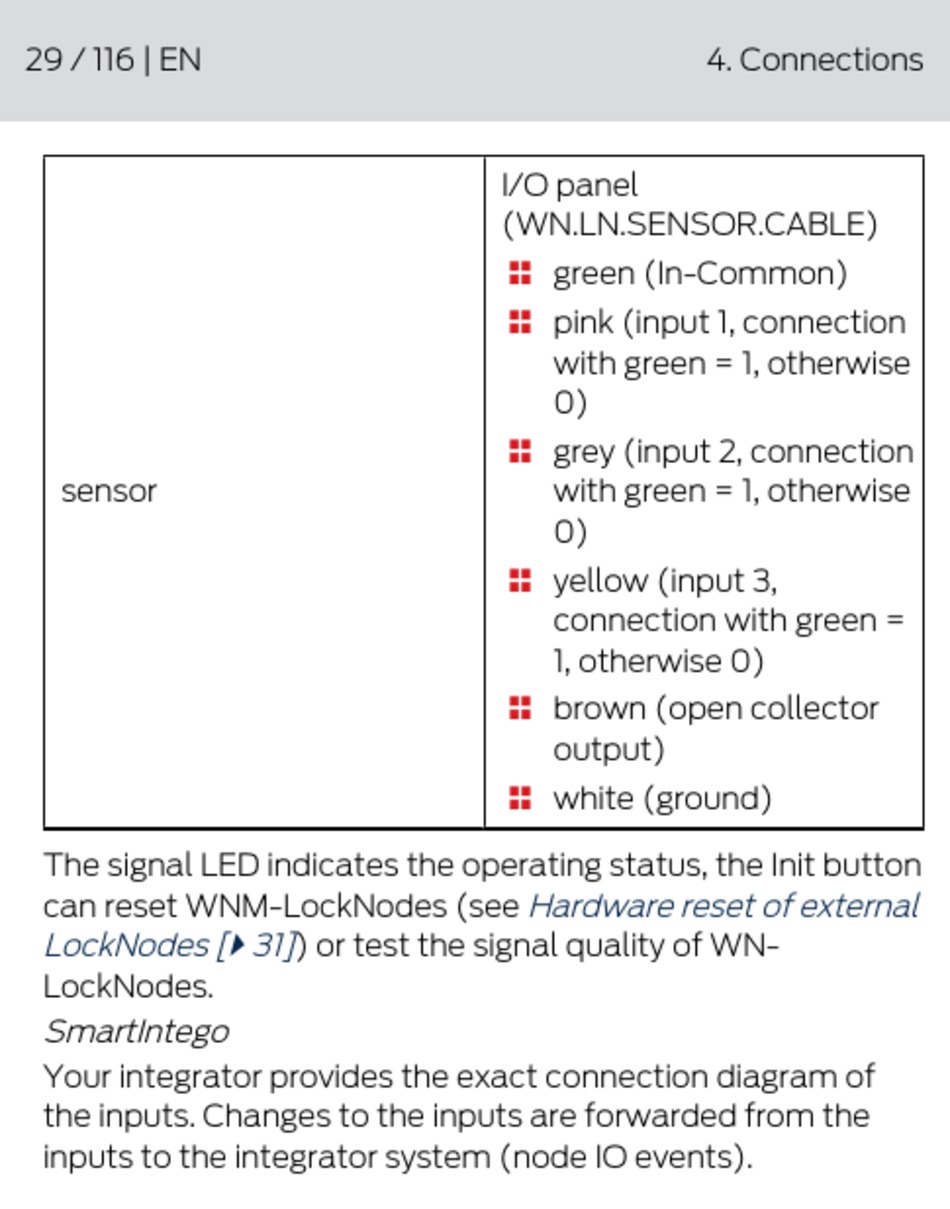

29 / 116 | EN
sensor
The signal LED indicates the operating status, the Init button
can reset WNM-LockNodes (see
LockNodes [} 31]
LockNodes.
SmartIntego
Your integrator provides the exact connection diagram of
the inputs. Changes to the inputs are forwarded from the
inputs to the integrator system (node IO events).
) or test the signal quality of WN-
I/O panel
(WN.LN.SENSOR.CABLE)
green (In-Common)
pink (input 1, connection
with green = 1, otherwise
0)
grey (input 2, connection
with green = 1, otherwise
0)
yellow (input 3,
connection with green =
1, otherwise 0)
brown (open collector
output)
white (ground)
Hardware reset of external
4. Connections
