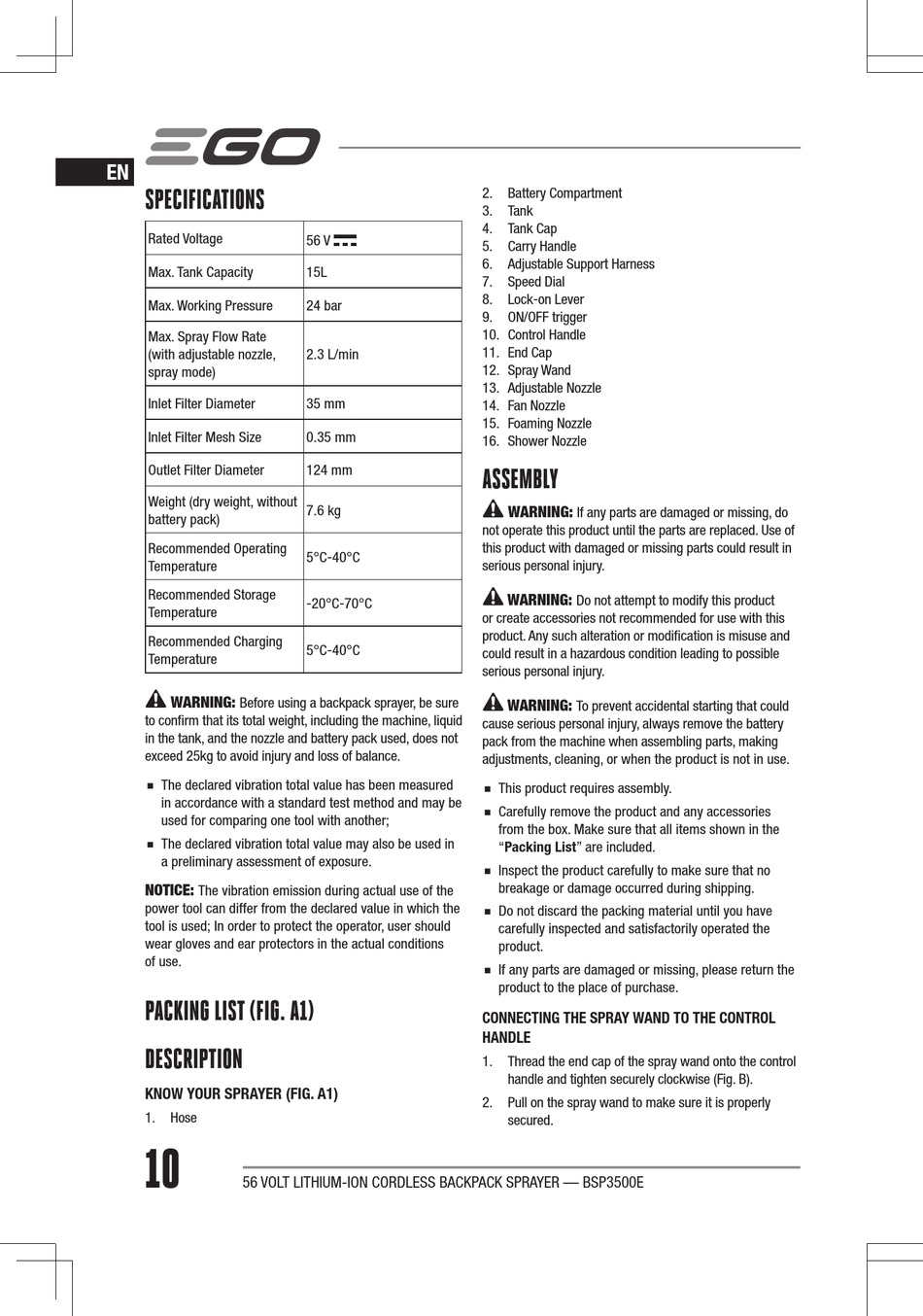

Ego Power+ BSP3500E Anleitung Seite 10

EN
SPECIFICATIONS
Rated Voltage
Max. Tank Capacity
Max. Working Pressure
Max. Spray Flow Rate
(with adjustable nozzle,
spray mode)
Inlet Filter Diameter
Inlet Filter Mesh Size
Outlet Filter Diameter
Weight (dry weight, without
battery pack)
Recommended Operating
Temperature
Recommended Storage
Temperature
Recommended Charging
Temperature
WARNING:
Before using a backpack sprayer, be sure
to confirm that its total weight, including the machine, liquid
in the tank, and the nozzle and battery pack used, does not
exceed 25kg to avoid injury and loss of balance.
◾
The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another;
◾
The declared vibration total value may also be used in
a preliminary assessment of exposure.
NOTICE:
The vibration emission during actual use of the
power tool can differ from the declared value in which the
tool is used; In order to protect the operator, user should
wear gloves and ear protectors in the actual conditions
of use.
PACKING LIST (FIG. A1)
DESCRIPTION
KNOW YOUR SPRAYER (FIG. A1)
1. Hose
10
56 VOLT LITHIUM-ION CORDLESS BACKPACK SPRAYER — BSP3500E
56 V
15L
24 bar
2.3 L/min
35 mm
0.35 mm
124 mm
7.6 kg
5°C-40°C
-20°C-70°C
5°C-40°C
2. Battery Compartment
3. Tank
4. Tank Cap
5. Carry Handle
6. Adjustable Support Harness
7. Speed Dial
8. Lock-on Lever
9. ON/OFF trigger
10. Control Handle
11. End Cap
12. Spray Wand
13. Adjustable Nozzle
14. Fan Nozzle
15. Foaming Nozzle
16. Shower Nozzle
ASSEMBLY
WARNING:
If any parts are damaged or missing, do
not operate this product until the parts are replaced. Use of
this product with damaged or missing parts could result in
serious personal injury.
WARNING:
Do not attempt to modify this product
or create accessories not recommended for use with this
product. Any such alteration or modification is misuse and
could result in a hazardous condition leading to possible
serious personal injury.
WARNING:
To prevent accidental starting that could
cause serious personal injury, always remove the battery
pack from the machine when assembling parts, making
adjustments, cleaning, or when the product is not in use.
◾
This product requires assembly.
◾
Carefully remove the product and any accessories
from the box. Make sure that all items shown in the
"Packing List" are included.
◾
Inspect the product carefully to make sure that no
breakage or damage occurred during shipping.
◾
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
◾
If any parts are damaged or missing, please return the
product to the place of purchase.
CONNECTING THE SPRAY WAND TO THE CONTROL
HANDLE
1. Thread the end cap of the spray wand onto the control
handle and tighten securely clockwise (Fig. B).
2. Pull on the spray wand to make sure it is properly
secured.
