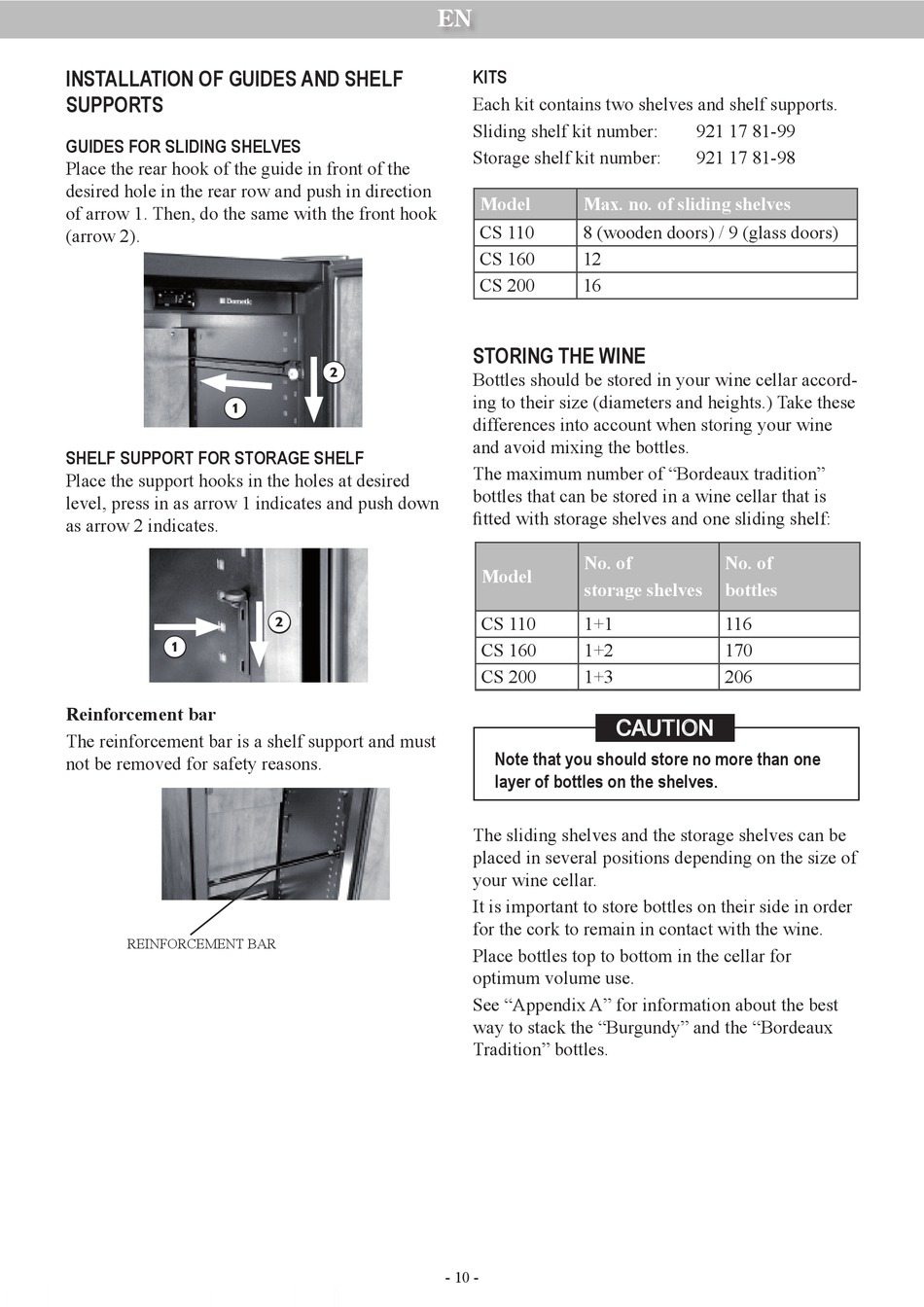

installation of guidEs and shElf
supports
guidEs for sliding shElvEs
Place the rear hook of the guide in front of the
desired hole in the rear row and push in direction
of arrow 1. Then, do the same with the front hook
(arrow 2).
1
shElf support for storagE shElf
Place the support hooks in the holes at desired
level, press in as arrow 1 indicates and push down
as arrow 2 indicates.
1
Reinforcement bar
The reinforcement bar is a shelf support and must
not be removed for safety reasons.
REINFORCEMENT BAR
EN
2
2
Kits
Each kit contains two shelves and shelf supports.
Sliding shelf kit number:
Storage shelf kit number:
Model Max. no. of sliding shelves
cS 110 8 (wooden doors) / 9 (glass doors)
cS 160 12
cS 200 16
storing thE WinE
Bottles should be stored in your wine cellar accord-
ing to their size (diameters and heights.) Take these
differences into account when storing your wine
and avoid mixing the bottles.
The maximum number of "Bordeaux tradition"
bottles that can be stored in a wine cellar that is
fitted with storage shelves and one sliding shelf:
No. of
Model
storage shelves
cS 110 1+1
cS 160 1+2
cS 200 1+3
CAUTION
note that you should store no more than one
layer of bottles on the shelves.
The sliding shelves and the storage shelves can be
placed in several positions depending on the size of
your wine cellar.
It is important to store bottles on their side in order
for the cork to remain in contact with the wine.
Place bottles top to bottom in the cellar for
optimum volume use.
See "Appendix A" for information about the best
way to stack the "Burgundy" and the "Bordeaux
Tradition" bottles.
- 10 -
921 17 81-99
921 17 81-98
No. of
bottles
116
170
206
