30133L
3.2 Specifications
1. Display: Backlight, 128 x 64 pixel display
2. Operating Temperature: 0 to 60°C (32 to 140 F°
3. Storage Temperature: -20 to 70°C (-4 to 158 F°
4. Extenal Power: 8 to 18 Volts provided via vehicle battery.
5. Internal Power: 9 V cell battery.
6. Dimensions: L 209 mm (7.00" - W107 mm (3.74" - H37 mm (1.38"
7. NW: 0.76Kg (0.84lb, GW:0.98 (1.21lb
3.3 Accessories
1. User's manual -- Instructions on tool operations.
2. USB cable -- Used to update the device.
3. CD -- Include installing software, as well as user's manual.
3.4 Navigation Characters
Characters used to help navigate the brake tool are:
1. "
" - Indicates current selection.
2. "x/x" - Indicates total # of items/pages and their sequence.
3.5 Vehicle Power
The power of the brake tool is provided via the vehicle Data Link Connector
(DLC. Follow the below steps to turn on the brake tool:
1. Find the DLC on vehicle. A plastic DLC cover may be found for some vehicles and you need to
remove it before plugging the OBD2 cable.
2. Plug OBD II cable to the vehicle's DLC.
3.6 Product Setup
The brake tool allows you to make the following adjustments and settings:
1. Language: Selects desired language.
2. Contrast: Adjusts the contrast of the LCD display.
3. Tool Information: Provides important information about the device.

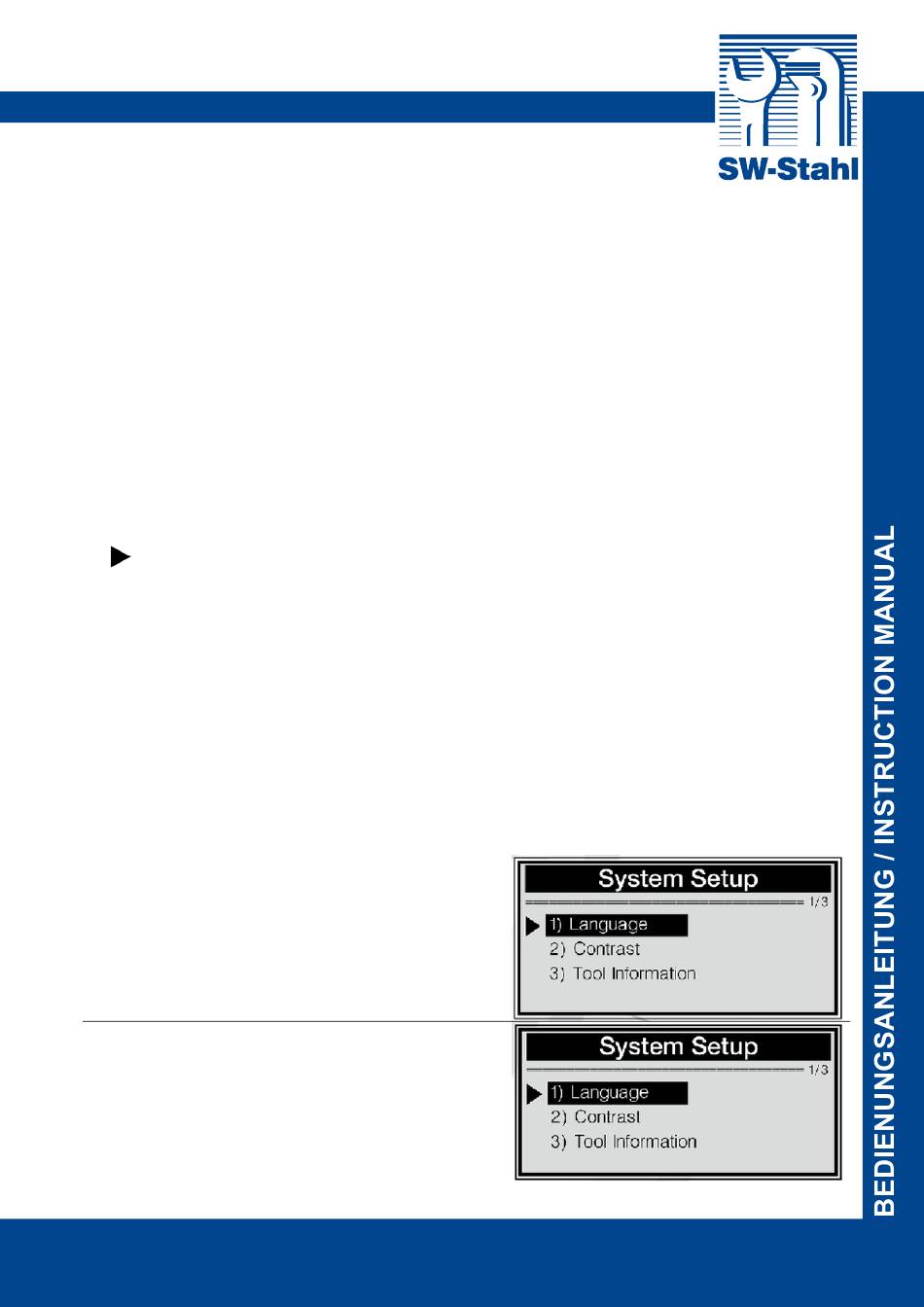

To enter the setup menu
From home screen, press N button to enter System
Setup menu. Follow the instructions to make
adjustments and settings as described in the
following setup options.
Language Setup
1. From System Setup menu, use UP/DOWN
button to select Language, and press Y button.
