8. X-axis Limit Installation
Required parts:
1× X-axis Limit Switch
•
2× M5X15 Screws
•
3,0 Hexagonal Wrench
•

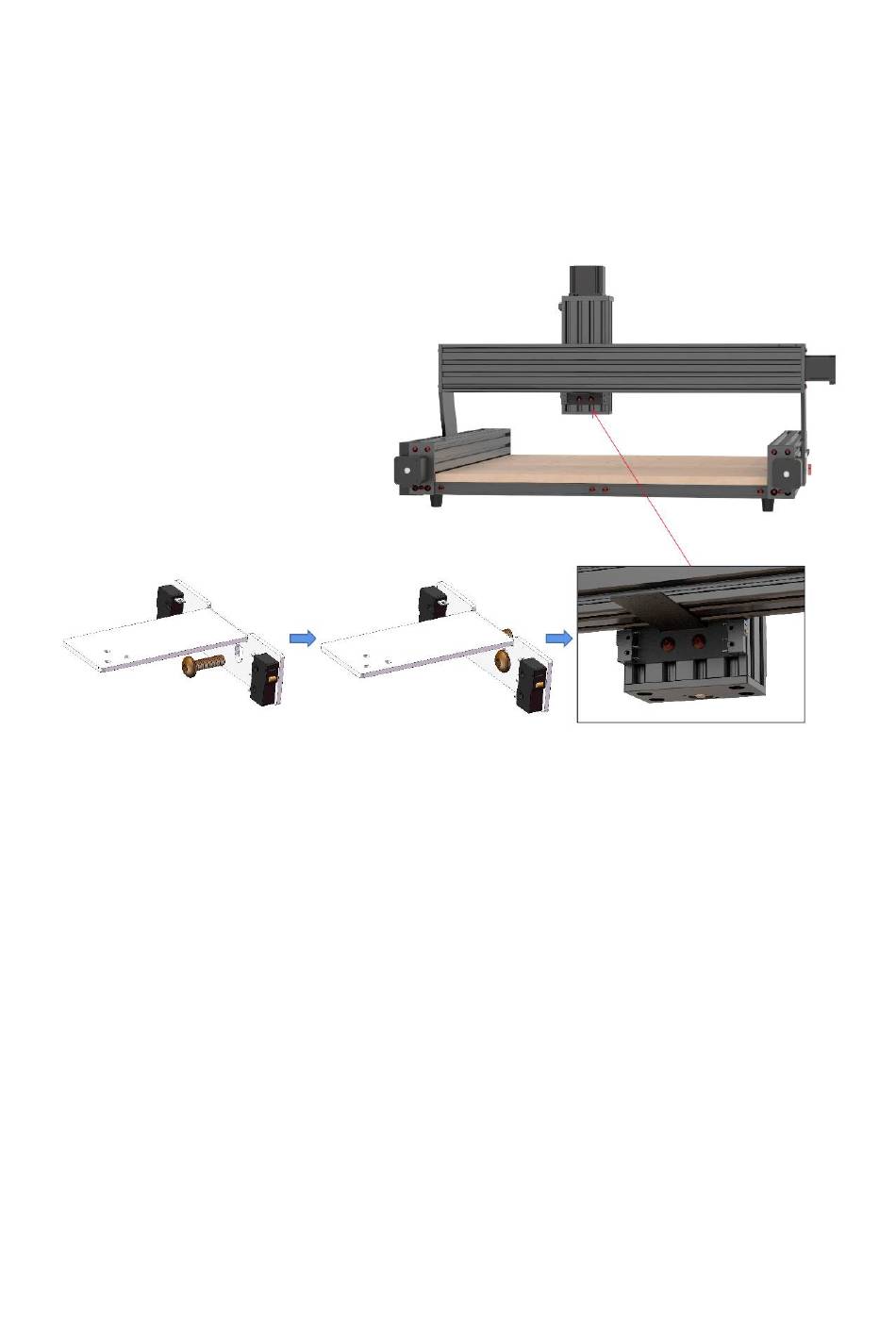

Thread the M5X6 screw through the X limit fixing plate and into the T-nut.
Place it within the profile slot located at the rear of the Z-axis and proceed to tighten it.
