3. Y-axis Installation
Required parts:
1× Left Y-axis Assembly
•
1× Right Y-axis Assembly
•
8× M5X30 Screws
•
2× M5X20 Screws
•
3,0 Hexagonal Wrench
•

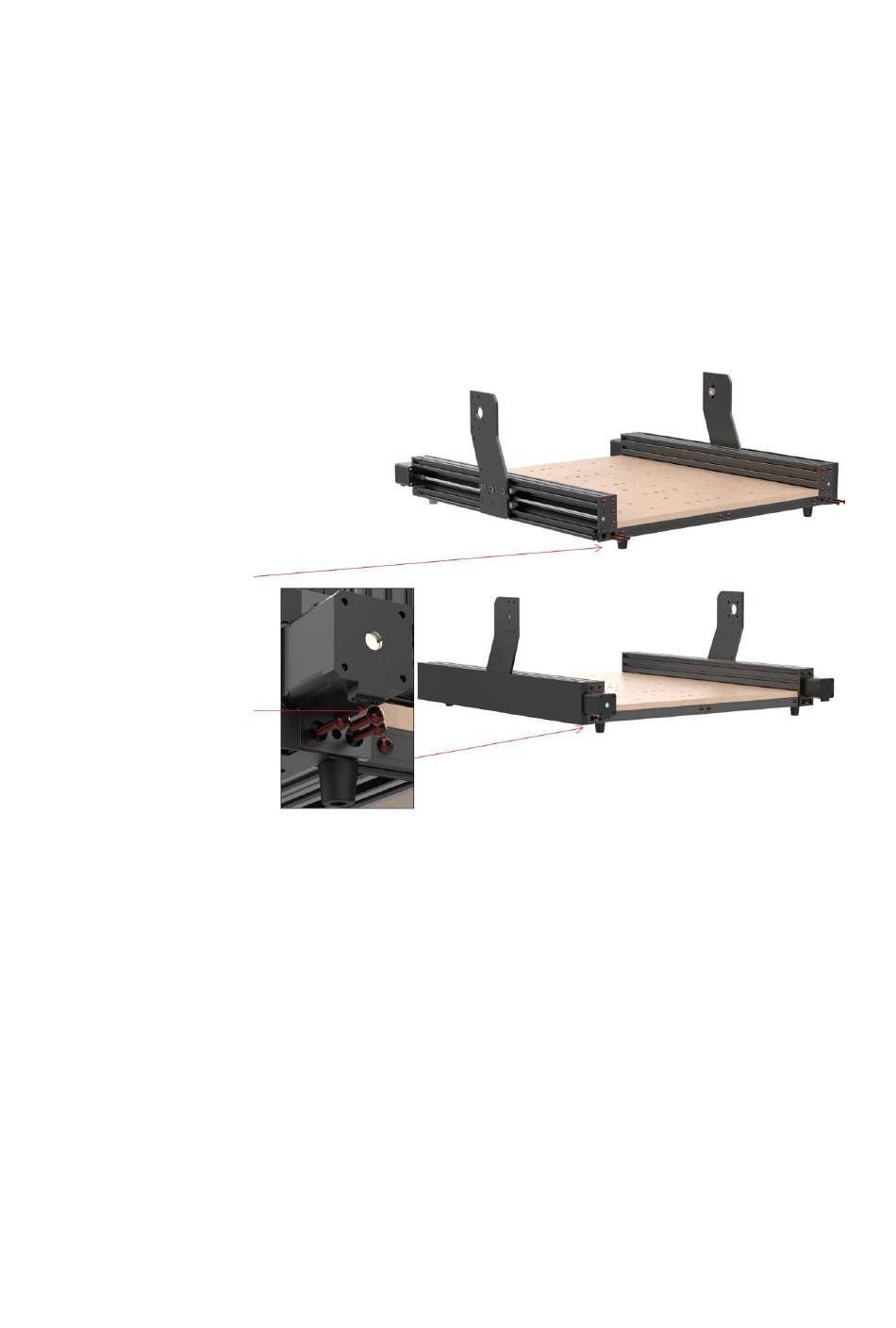

Begin by securing the front left
and right Y-axis assembly using
M5*30 screws initially.
Note: Insert and fasten all M5X30
screws into their respective holes
before final tightening.
Utilize M5X20 screws to secure
both sides at the rear of the
machine.
