6. X-axis Installation – Second Step
Required parts:
1× X-axis Assembly
•
4× M5X15 Screws
•
2,0 Hexagonal Wrench
•
3,0 Hexagonal Wrench
•
3.
4.

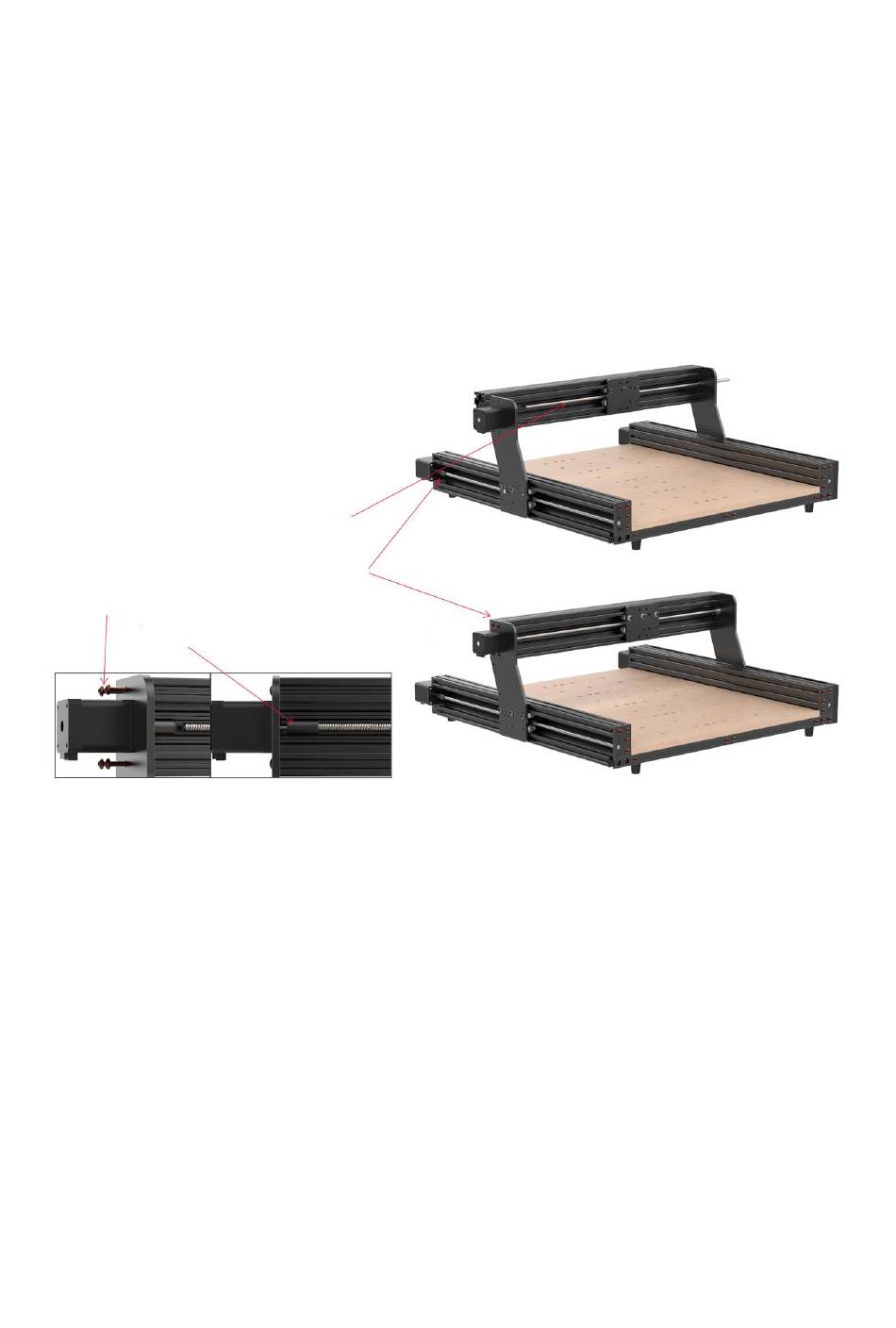

1. Slide the X-axis carriage towards the left to reveal the screw by approximately 5 cm.
2. Rotate the left Y-axis manually to align the left and right Y-axes.
3. Secure the right side of the X-axis profile using an M5X15 screw.
4. Shift the X-axis carriage to the right, insert the screw into the coupling, and grip the
screw using the headless hexagon thread.
1.
2.
