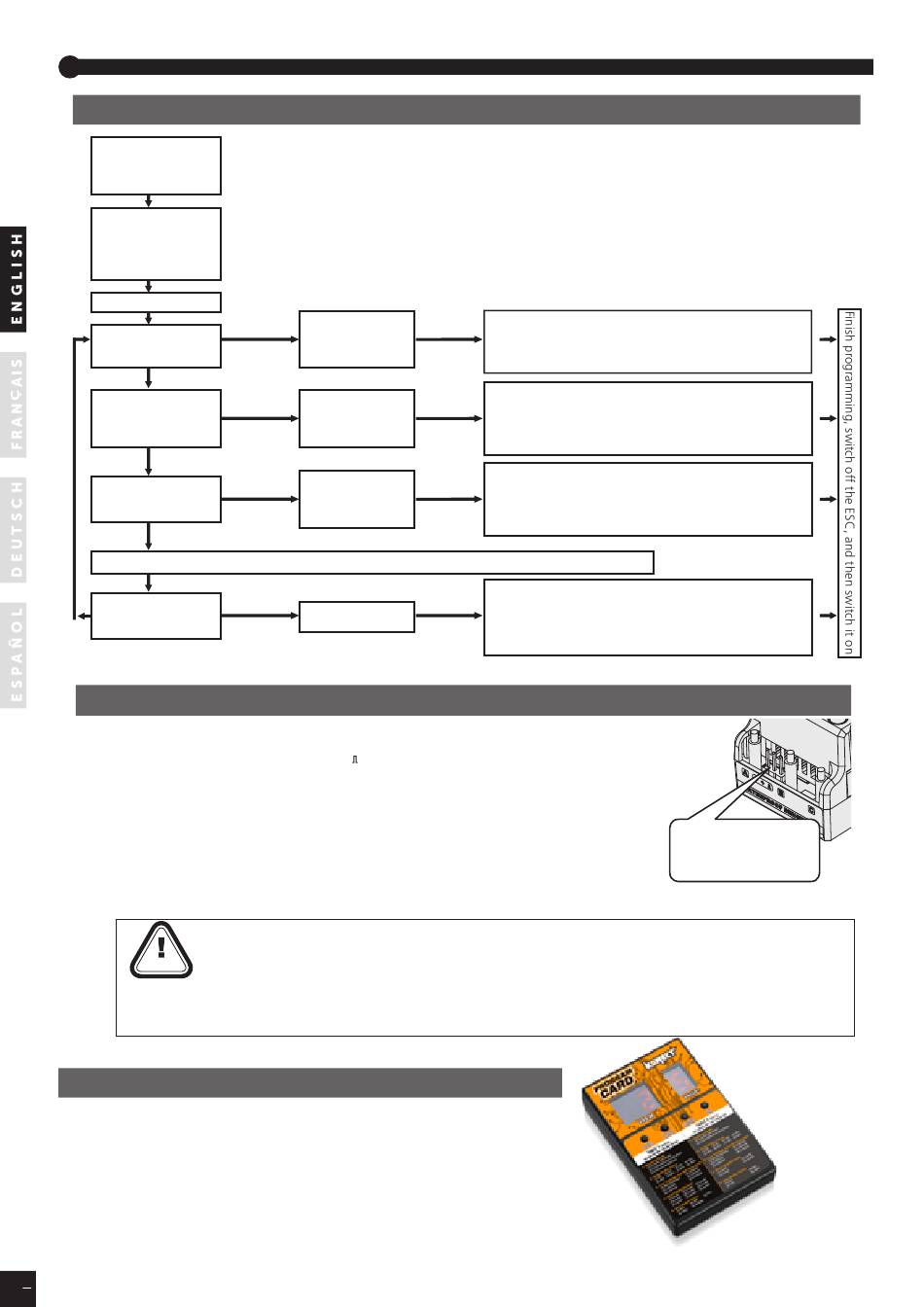

ESC Programming
1. Program your ESC with the SET Button
With the ESC
switched off; Turn
on the transmitter.
Hold the SET
button and switch
on the ESC.
Red LED flashes
Green LED flashes
once
Green LED flashes
twice
Green LED flashes
3 times
......The following steps are just like the above setps......
Red LED flashes
N times
2. Program your ESC with a LED program card
The ESC is in off state, connect the 3pin setting interface on the esc
with the interface marked with - + on the upper right corner of the
LED program card according to the polarity with a cable with JR plug
at both ends, then power on the ESC, after a few seconds, all
parameters of the ESC can be displayed. The "ITEM" and "VALUE"
button on the program box can quickly select the programming items
and parameter values, press "OK" button to save the new parameters
in ESC.
ATTENTION
8
After entering the
corresponding item,
the red LED starts to
blink, the times it
blinks represents the
current option
number.
Release the
Enter the 1st item
SET button
"Running Mode"
Release the
Enter the 2nd
SET button
item"Drag Brke
Force"
Release the
Enter the 3rd item
SET button
"Low-Voltage
Cutoff"
Enter the Nth item
Release the
SET button
• The programming interface used to connect the program card is shared with fan port, not the throttle cable.
• Since the program card supports multiple escs, the label content on the separately purchased program card
may not exactly correspond to the parameter items of your esc. Please refer to the parameter table in the
manual of esc when setting it(the number displayed in the left window of the program card is the parameter
item, and the number displayed in the right window is the parameter value).
Click the SET button to choose the option, the
times the red LED blinks indicates the option
number you are going to select.
Press the
Red LED flashes once = "Forward with brake"
SET button
Red LED flashes twice = "Forward / Reverse with
brake"
Red LED flashes once = "0%"
Press the
SET button
Red LED flashes twice = "5%"
Red LED flashes twice = "10%"
......
Red LED flashes once = "Disabled"
Press the
SET button
Red LED flashes twice = "2.6V/Cell"
Red LED flashes 3 times = "2.8V/Cell"
......
Press the SET key to choose the value, the flash
times of the RED LED means the option number.
(Once means the 1st option, twice means the 2nd
Press the
SET button
option, etc.)
OPTIONAL
KN-PROGRAMCARD
Fan/ Programming
Port for Connecting
Program Card.
