Fronius VR 5000 Remote Installation Seite 12

9

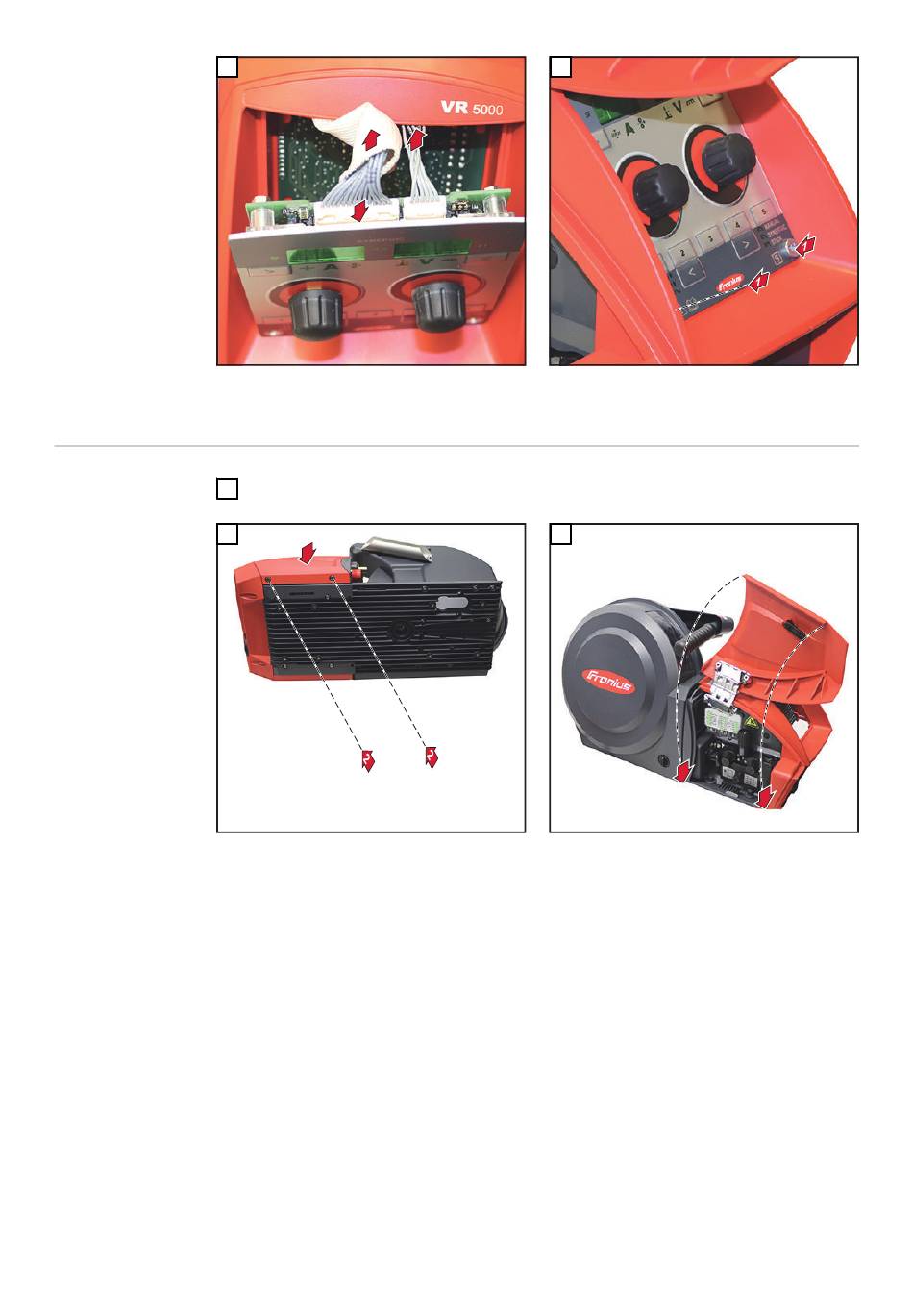

1. Plug the cable from the program selector into
the control panel
2.+3. Pull the cable into the device
And finally...
1
2
12
2 3
1
Turn the device round
1
2 x TX25 - 5 x 14 mm
2,8 Nm
10
Secure the control panel using two TX25 (5x10
mm) screws. Tightening torque = 3.2 Nm
3
1
1
