3

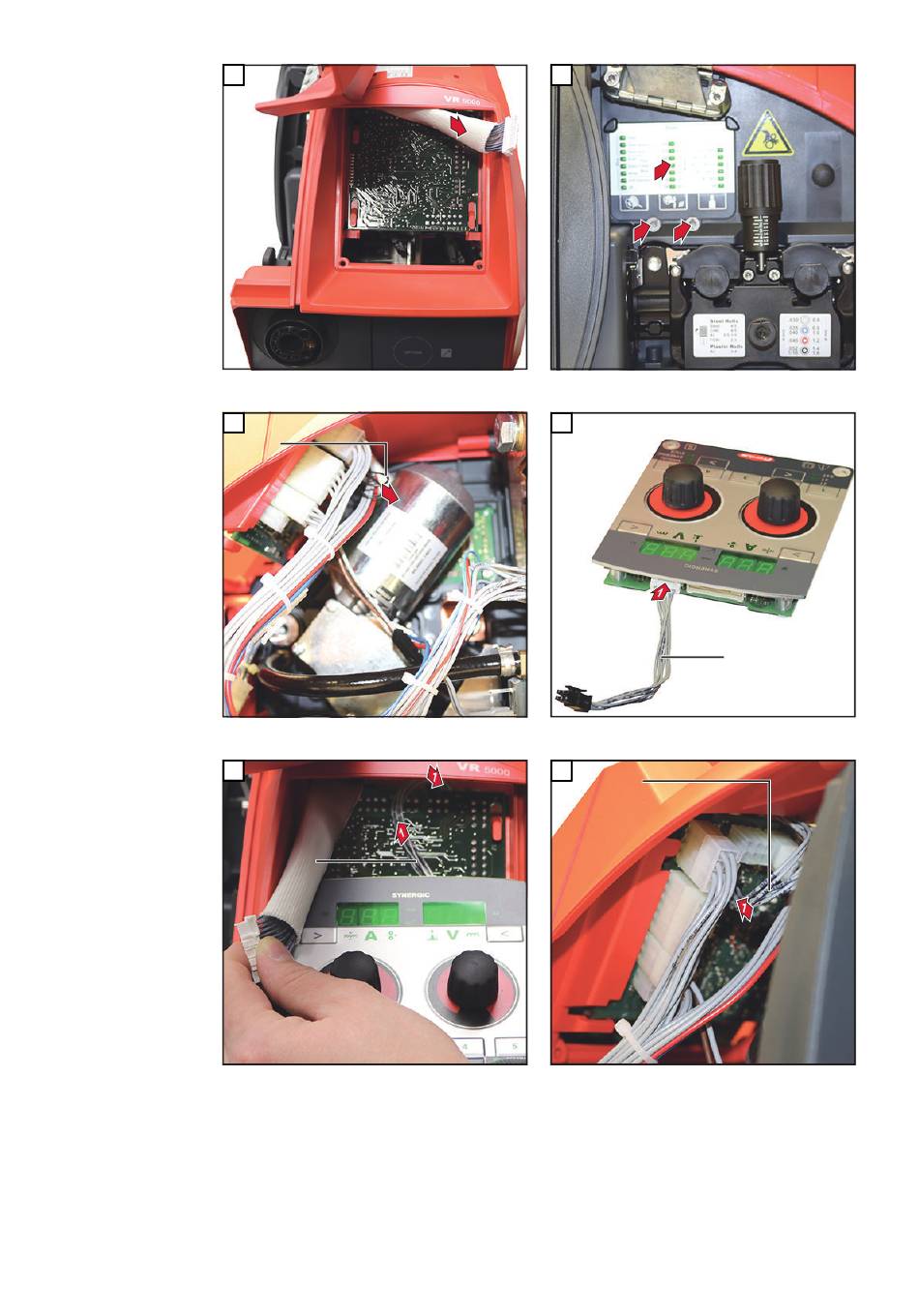

Pass the cable to the front over the PC board
5
(1)
1
Unplug the six-pin connector (1) from the PC
board
7
(2)
Thread the cable (2) over the PC board and into
the device
4
1
Secure the program selector using two TX25
(5x10 mm) screws. Tightening torque = 2.2 Nm
6
Connect the cable (2) to the control panel
8
Plug the cable (2) into the six-pin connector on
the PC board
English
1
2
2
(2)
(2)
11
