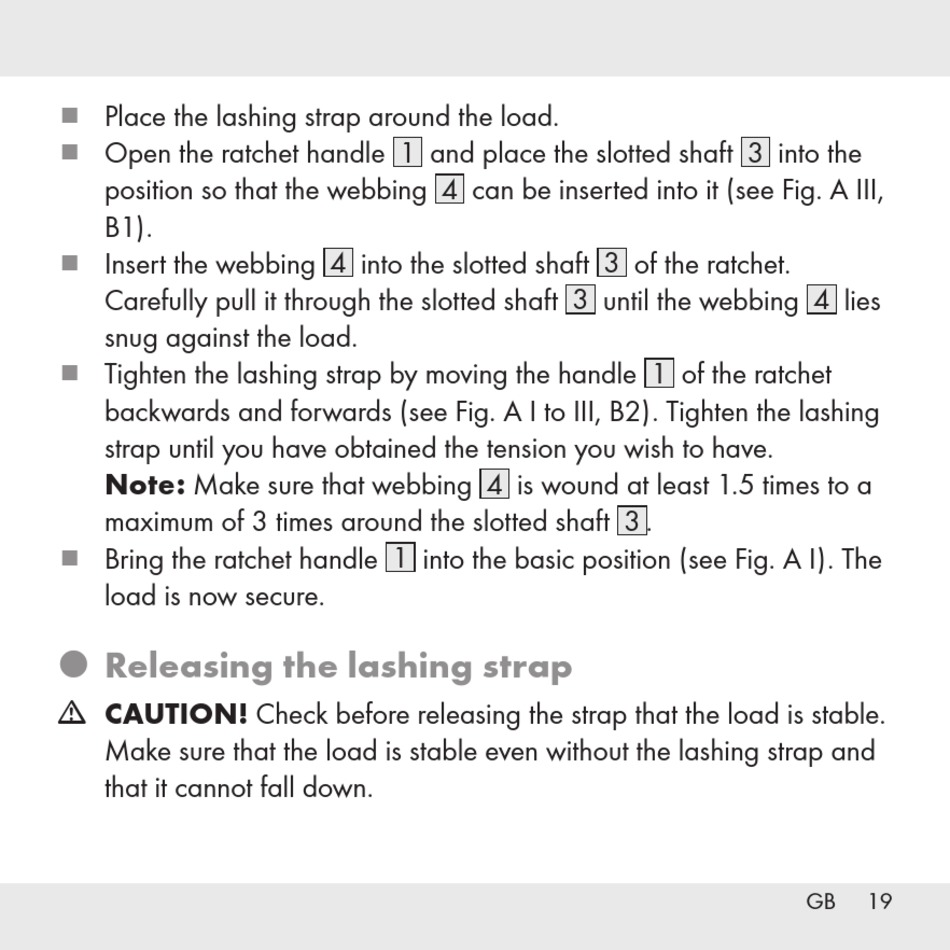

Powerfix Profi 311845 Bedienungs- Und Sicherheitshinweise Seite 21

Place the lashing strap around the load .
Open the ratchet handle 1 and place the slotted shaft 3 into the
position so that the webbing 4 can be inserted into it (see Fig . A III,
B1) .
Insert the webbing 4 into the slotted shaft 3 of the ratchet .
Carefully pull it through the slotted shaft 3 until the webbing 4 lies
snug against the load .
Tighten the lashing strap by moving the handle 1 of the ratchet
backwards and forwards (see Fig . A I to III, B2) . Tighten the lashing
strap until you have obtained the tension you wish to have .
Note: Make sure that webbing 4 is wound at least 1 .5 times to a
maximum of 3 times around the slotted shaft 3 .
Bring the ratchet handle 1 into the basic position (see Fig . A I) . The
load is now secure .
˜ Releasing the lashing strap
m CAUTION! Check before releasing the strap that the load is stable .
Make sure that the load is stable even without the lashing strap and
that it cannot fall down .
GB 19
