8 Installationsbeispiele

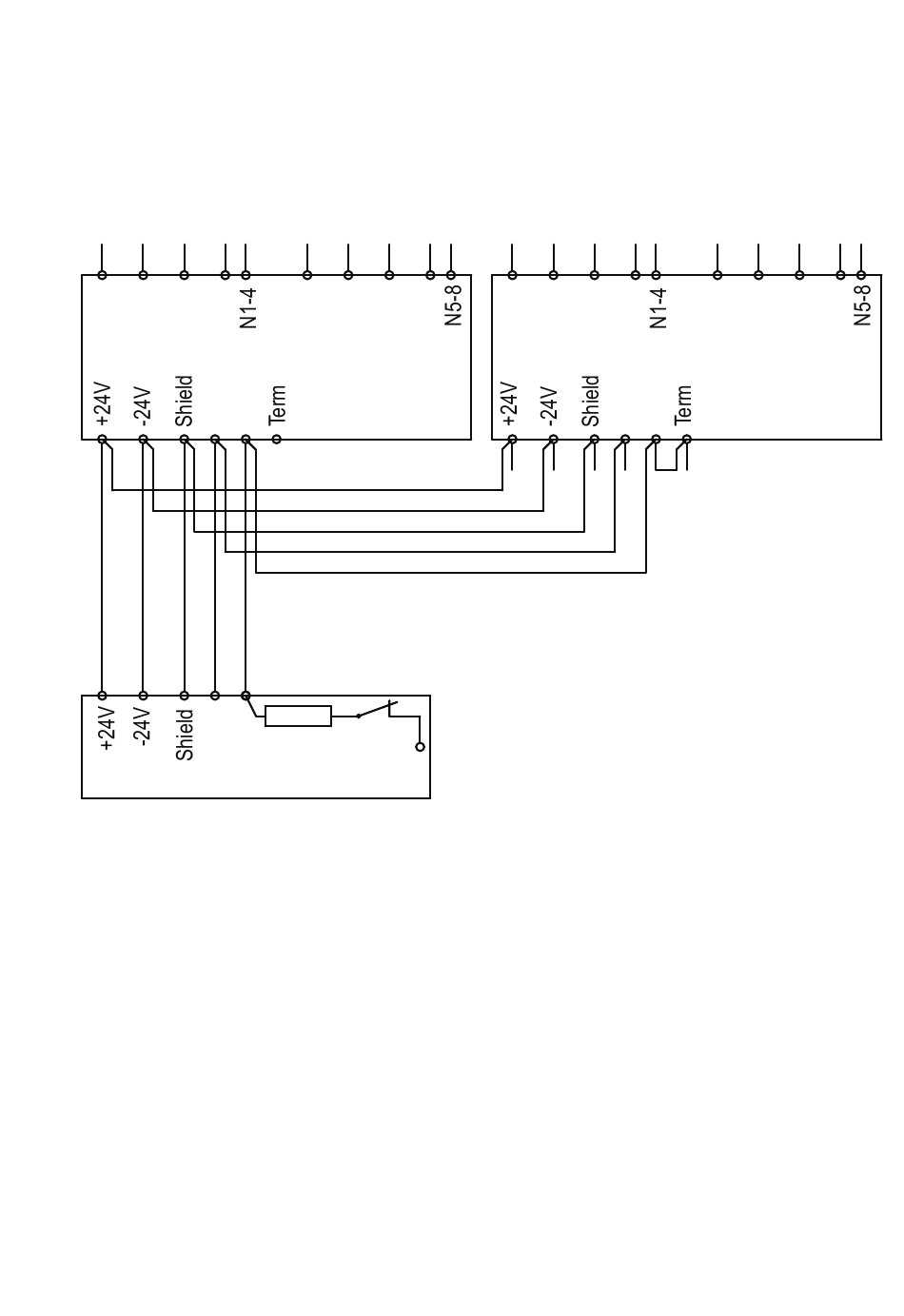

Anschluss Busleitung
1
2
3
4
8PM-I-Bus
A B
A B
CPS-LPS
Busstruktur RS485 Bus
• Doppelt abgeschlossene Bustopologie/
Linienstruktur
• max . 25 Module (8PM-I-Bus)
• Maximale Leitungslänge 1000m
• Der Querschnitt für die 24 V-Versorgung muss
anhand der Anzahl der Module sowie der
Leitungslänge berechnet werden . Umin für
Modul = 19 V
• Empfohlenes Kabel: JY(ST)Y 4 x 2 x 0,8 mm,
verdrilltes Paar, geschirmt
• Keine Stichleitungen erlaubt .
• Bei Unterbrechung oder Kurzschluss
der Busleitung wird die programmierte
Sicherheitsbeleuchtung auf Dauerlicht umge-
schaltet
• Im 8PM-I-Bus-Modul ist der 120-Ohm-
Abschlusswiderstand integriert . Dieser kann
über eine Drahtbrücke aktiviert werden, die an
den Klemmen B/Term angeschloss enen wird .
Manual 8PM-I-Bus module 40071860437 June 2024 www.eaton.com
5
6
7
8
Term
8 Installation Examples
8 Installation Examples
Connection Bus cable
1
2
3
4
8PM-I-Bus
A B
Bus-structure RS485 bus
• Double terminated bus topology/Line structure
• max . 25 modules (8PM-I-Bus)
• Maximum cable length 1000m
• Cross section for 24 V supply must be cal-
culated according the number of modules as
well as line length . Umin for module = 19 V
• recommend cable: JY(ST)Y 4 x 2 x 0 .8 mm,
twisted pair, shielded
• No stubs allowed .
• If the bus line is interrupted or short-circuited,
the programmed emergency lighting is
switched to maintained light
• The 120 Ohm terminating resistor is integrated
in the 8PM-I bus module . It can be activated
via a wire bridge, which is connected to the
terminals B/Term .
5
6
7
8
9
