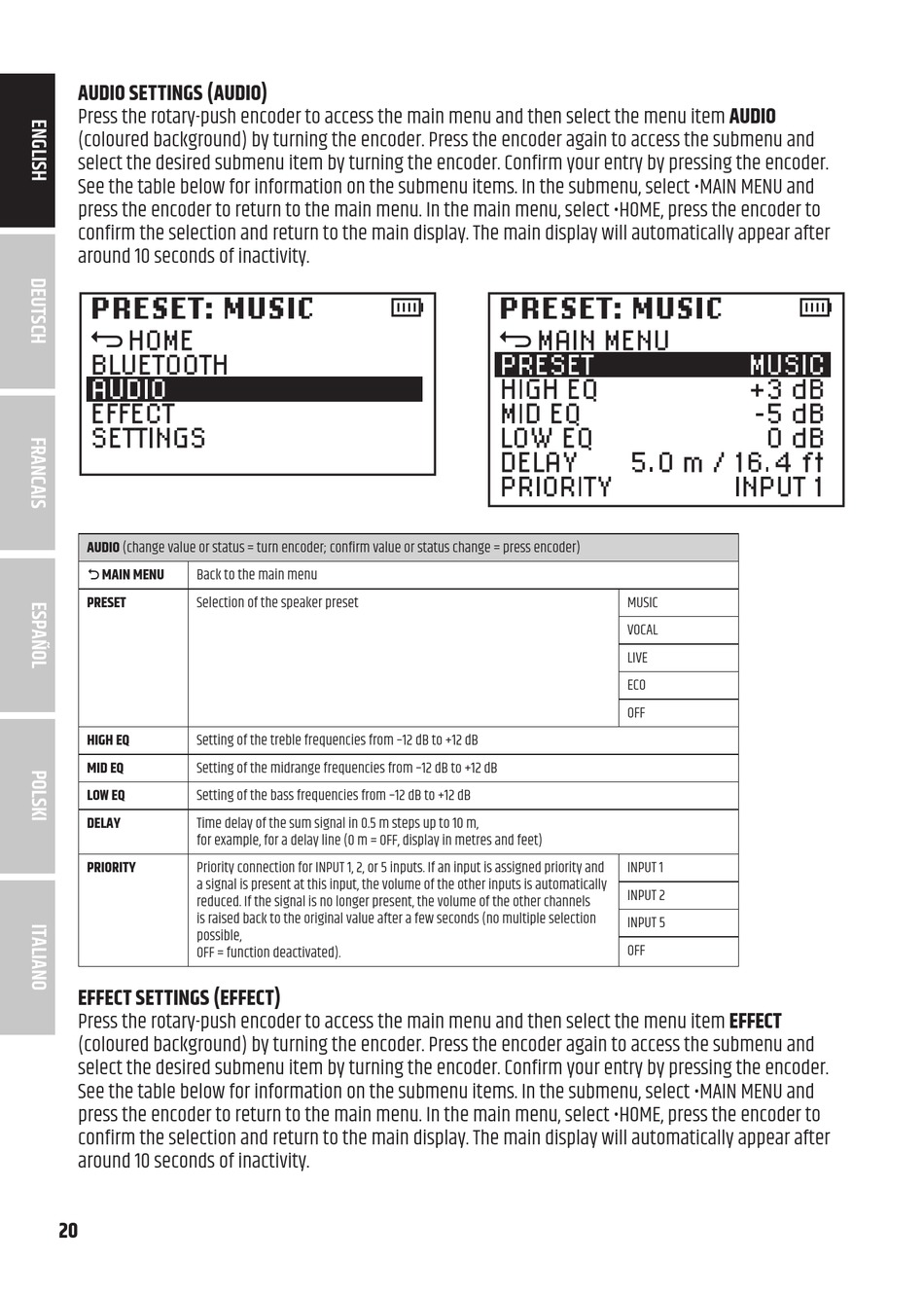

AUDIO SETTINGS (AUDIO)
Press the rotary-push encoder to access the main menu and then select the menu item AUDIO
(coloured background) by turning the encoder. Press the encoder again to access the submenu and
select the desired submenu item by turning the encoder. Confirm your entry by pressing the encoder.
See the table below for information on the submenu items. In the submenu, select •MAIN MENU and
press the encoder to return to the main menu. In the main menu, select •HOME, press the encoder to
confirm the selection and return to the main display. The main display will automatically appear after
around 10 seconds of inactivity.
AUDIO (change value or status = turn encoder; confirm value or status change = press encoder)
 MAIN MENU
Back to the main menu
PRESET
Selection of the speaker preset
HIGH EQ
Setting of the treble frequencies from –12 dB to +12 dB
MID EQ
Setting of the midrange frequencies from –12 dB to +12 dB
LOW EQ
Setting of the bass frequencies from –12 dB to +12 dB
DELAY
Time delay of the sum signal in 0.5 m steps up to 10 m,
for example, for a delay line (0 m = OFF, display in metres and feet)
PRIORITY
Priority connection for INPUT 1, 2, or 5 inputs. If an input is assigned priority and
a signal is present at this input, the volume of the other inputs is automatically
reduced. If the signal is no longer present, the volume of the other channels
is raised back to the original value after a few seconds (no multiple selection
possible,
OFF = function deactivated).
EFFECT SETTINGS (EFFECT)
Press the rotary-push encoder to access the main menu and then select the menu item EFFECT
(coloured background) by turning the encoder. Press the encoder again to access the submenu and
select the desired submenu item by turning the encoder. Confirm your entry by pressing the encoder.
See the table below for information on the submenu items. In the submenu, select •MAIN MENU and
press the encoder to return to the main menu. In the main menu, select •HOME, press the encoder to
confirm the selection and return to the main display. The main display will automatically appear after
around 10 seconds of inactivity.
20
MUSIC
VOCAL
LIVE
ECO
OFF
INPUT 1
INPUT 2
INPUT 5
OFF
